G100 Special Eye Self-Lock Hook
G100 Special Eye Self-Lock Hook
Size: 8mm-16mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ Positive lock latch is Self-Locking when hook is loaded
◆ 25% stronger than G80
Product Details

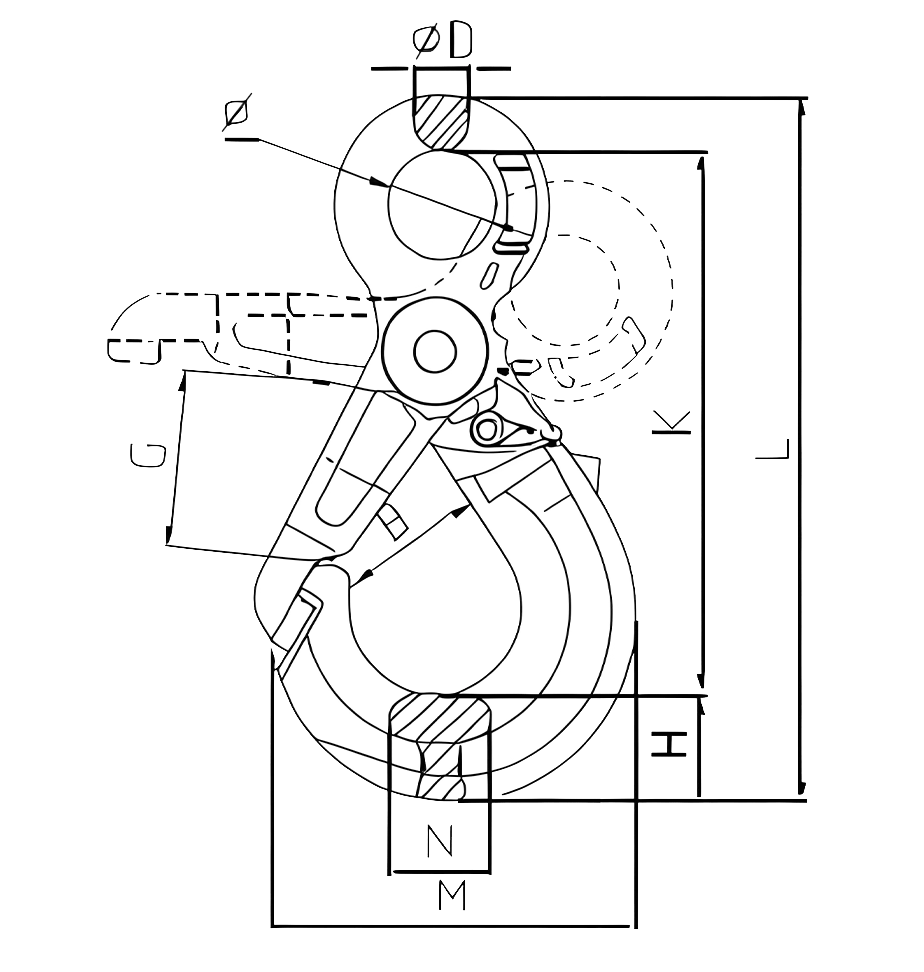

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | B | Φ | G | K | H | ΦD | N | M | L |
| 08 | 0.81 | 2.5 | 10 | 37.5±2 | 27±1.5 | 38±2 | 136.5±3 | 21±1 | 12±1 | 21.5±1 | 91±2 | 169.5±3 |
| 10 | 1.41 | 4 | 16 | 48±3 | 34.5±1. | 45±3 | 168.5±3 | 30.5±1. | 15±1 | 23±1.5 | 113±2 | 214±3 |
| 13 | 2.61 | 6.7 | 26.8 | 52.5±3 | 40±2 | 57±3 | 205±4 | 39±1.5 | 20±1 | 30±1.5 | 135±3 | 264±4 |
| 16 | 4.45 | 10 | 40 | 68±3 | 50±2.5 | 59±3 | 252±4 | 49.5±2 | 27±1 | 32±2 | 168±3 | 328.5±4 |
Ultimate Load is 4 times the Working Load Limit
