G100 Swivel Self-Lock Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
◆ Positive lock latch is self-locking when hook is loaded
Product Details

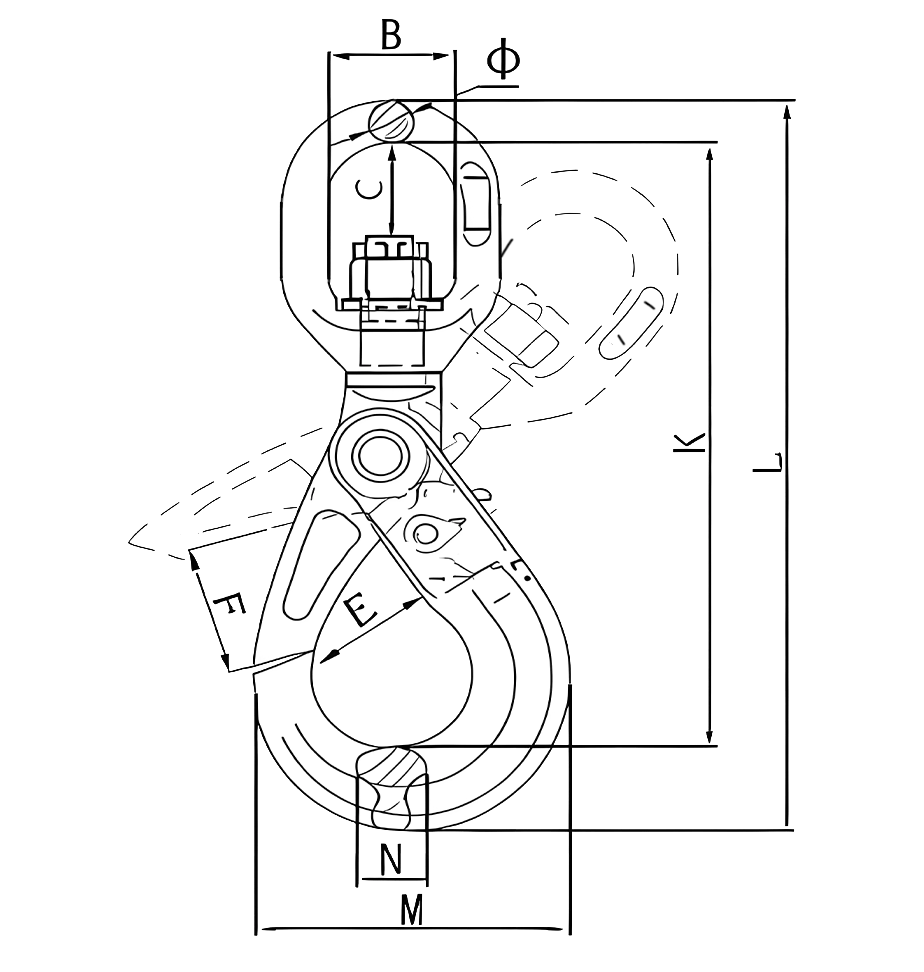

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | B | C | Φ | E | F | M | N | K | L |
| 06 | 0.6 | 1.4 | 5.6 | 32.5±2 | 25.5±2 | 11.5±1 | 28±2 | 31.5±2 | 73±2 | 15±1 | 152.5±4 | 184±5 |
| 08 | 1.1 | 2.5 | 10 | 36±2 | 28.5±2 | 13±1 | 36±3 | 40±3 | 90±3 | 20±1 | 188±4 | 226±6 |
| 10 | 2 | 4 | 16 | 42±3 | 35±3 | 15.5±1 | 45±3 | 46±3 | 108±3 | 26±2 | 225.5±5 | 269±6 |
| 13 | 4 | 6.7 | 26.8 | 50±3 | 41±3 | 17±2 | 53.6±3 | 66±4 | 137.5±4 | 32.5±2 | 270±5 | 327±7 |
| 16 | 6.8 | 10 | 40 | 70±4 | 58±4 | 21.5±2 | 61±4 | 75±4 | 170.5±4 | 38±3 | 342±6 | 413±7 |
| 20 | 12.5 | 16 | 64 | 72±4 | 63±4 | 26±2 | 76.5±4 | 80±5 | 91.5±5 | 50±3 | 373±6 | 460±8 |
| 22 | 17.1 | 19 | 76 | 97±5 | 96±5 | 33±2 | 76±4 | 104±5 | 205±5 | 52±3 | 468±7 | 566±8 |
| 26 | 31.2 | 26.5 | 106 | 123±5 | 119±5 | 42±2 | 99±4 | 107±5 | 251±5 | 60±3 | 565±7 | 687±8 |
Ultimate Load is 4 times the Working Load Limit
