G100 Clevis Grab Hook With Cradle
◆ Forged super alloy steel-Quenched and Tempered
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
Product Details

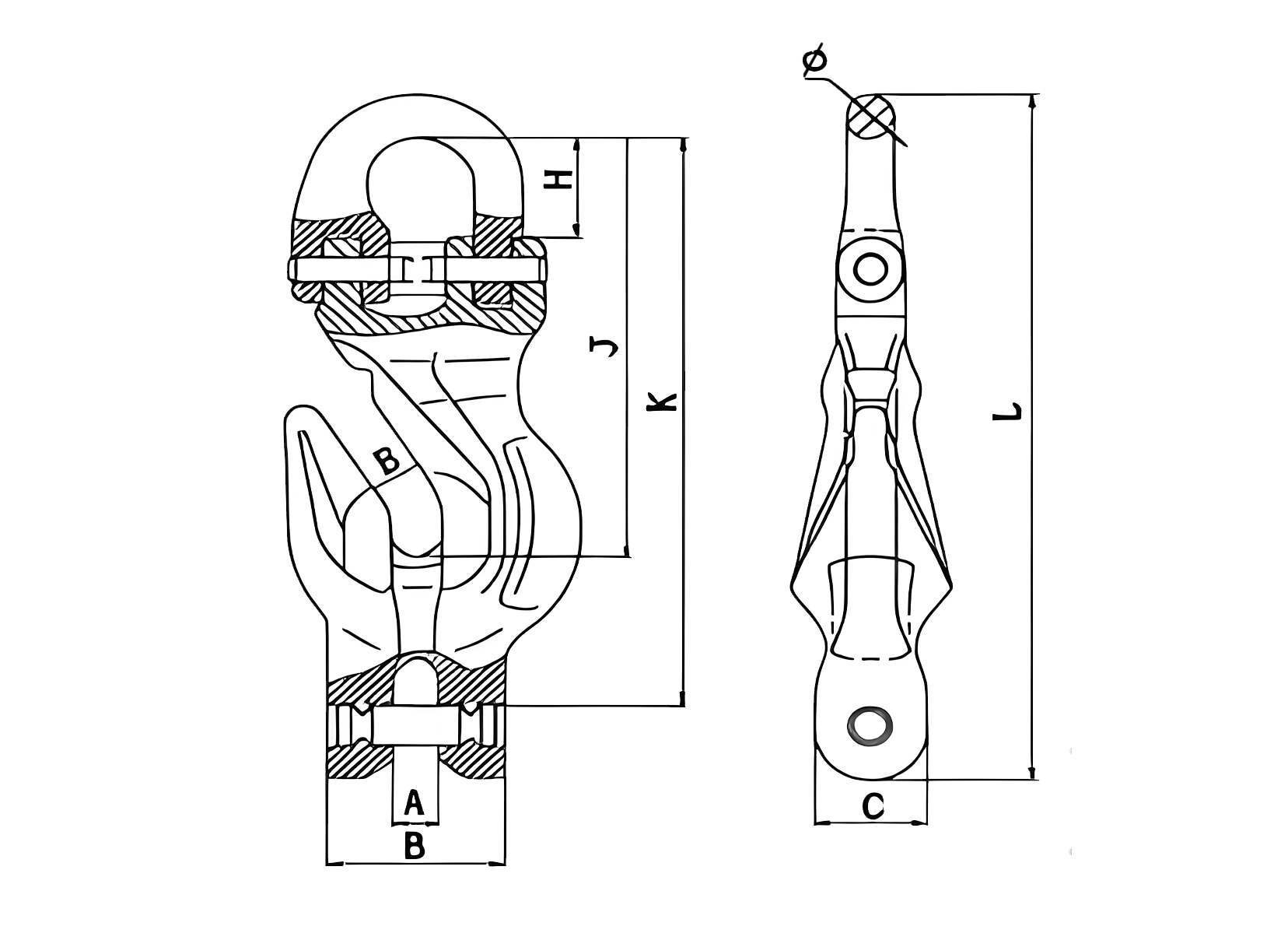

| Chain Size | Weight (Kg) | WLL (T) | BF (T) | A | B | C | E | H | L | K | J | Φ |
| 06 | 0.366 | 1.4 | 5.6 | 8±0.5 | 32±1 | 18±0.8 | 8.3±0.5 | 16±1 | 128.7±2 | 80±2 | 104.7±2 | 7±0.5 |
| 08 | 0.79 | 2.5 | 10 | 9.5±0.5 | 37±1 | 24±1 | 10.5±0.5 | 25±1.5 | 165±3 | 136±2 | 100±2 | 10±0.5 |
| 10 | 1.522 | 4 | 16 | 12.5±0.5 | 48±1 | 29.5±1 | 13±1 | 28±1.5 | 203±3.5 | 167±2 | 123±2 | 12.6±0.5 |
| 13 | 3.372 | 6.7 | 26.8 | 16±0.5 | 59±1 | 37±1 | 15.5±1 | 37±1.5 | 269±4 | 223±3 | 163±3 | 16.5±1 |
| 16 | 5.67 | 10 | 40 | 18.5±1 | 70±1 | 46±1 | 18.5±1 | 40±2 | 328±4 | 271±4 | 194±3 | 20±1 |
| 20 | 9.79 | 16 | 64 | 24±1 | 85±2 | 52±2 | 25±1 | 46±2 | 398±5 | 328±4 | 247±4 | 25±1 |
| 22 | 14.62 | 19 | 76 | 25±1 | 100±2 | 61±2 | 26.5±1 | 51.5±2 | 430±5 | 354±5 | 258±4 | 27±1 |
Ultimate Load is 4 times the Working Load Limit
