G100 Master Link

#1 MARINE HARDWARE

G100 Master Link

Product attributes :

◆ Forged super alloy steel-Quenched and Tempered

◆ Suitable for G100 chain

◆ 25% stronger than G80

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour: Blue

◆ All sizes are forged

◆ Oversized master link

◆ The pressing flat is for use with G100 Omega link

Product Details

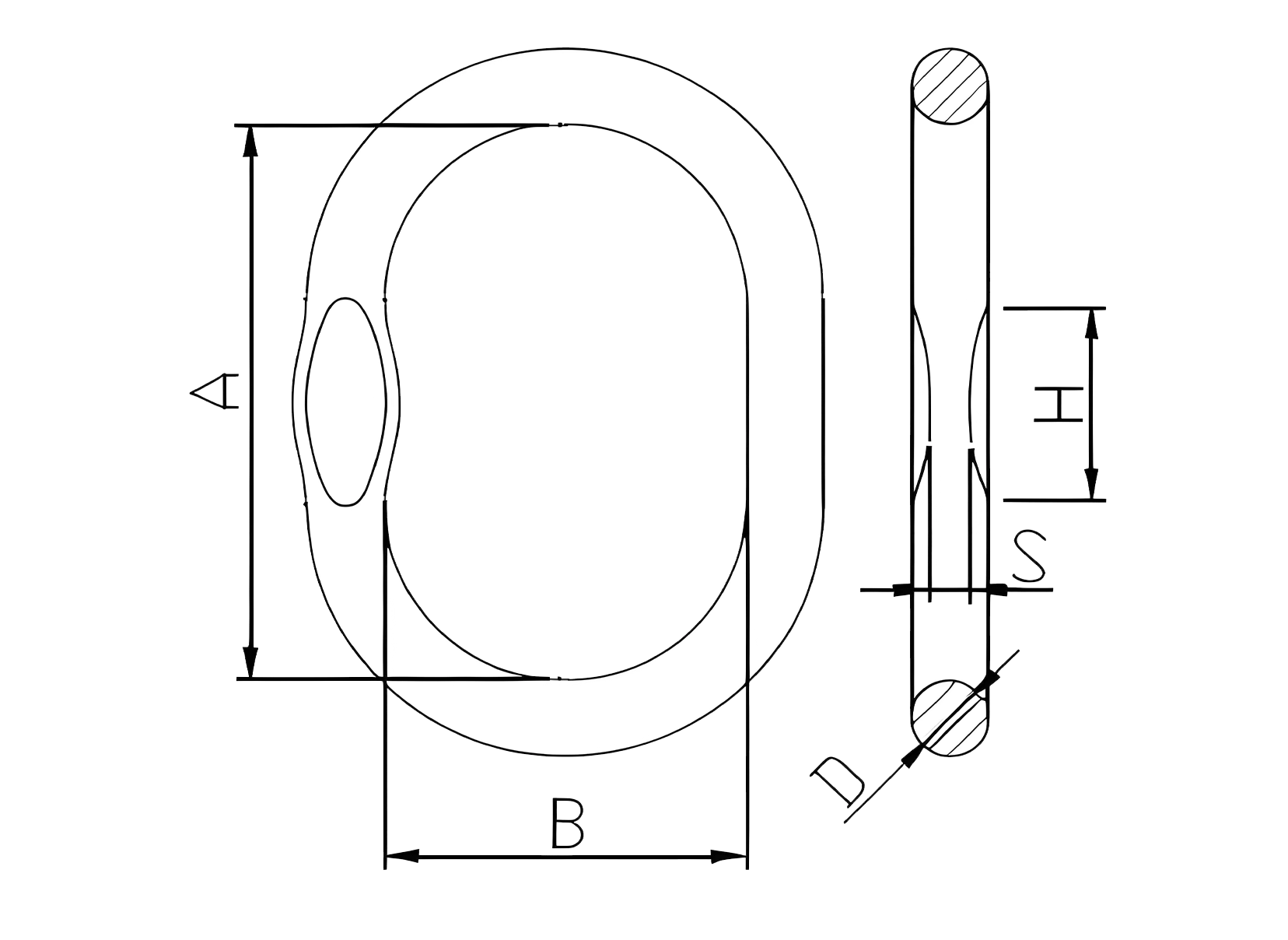

Chain SizeWeight
(Kg)
WLL
(T)
ABDS×H
103.7 340 180 25 13.5+0.5×40
134.7 6.7 340 180 28 15±0.5×48
167.0 10 340 180 34 18±0.5×55
208.9 16 340 180 38 20±0.5×60

Ultimate Load is 4 times the Working Load Limit
