G100 Master Link Assembly
G100 Master Link Assembly
Size: 6mm-16mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for G100 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ 25% stronger than G80
◆ All sizes: Main link: forged Sub link: welded
Product Details

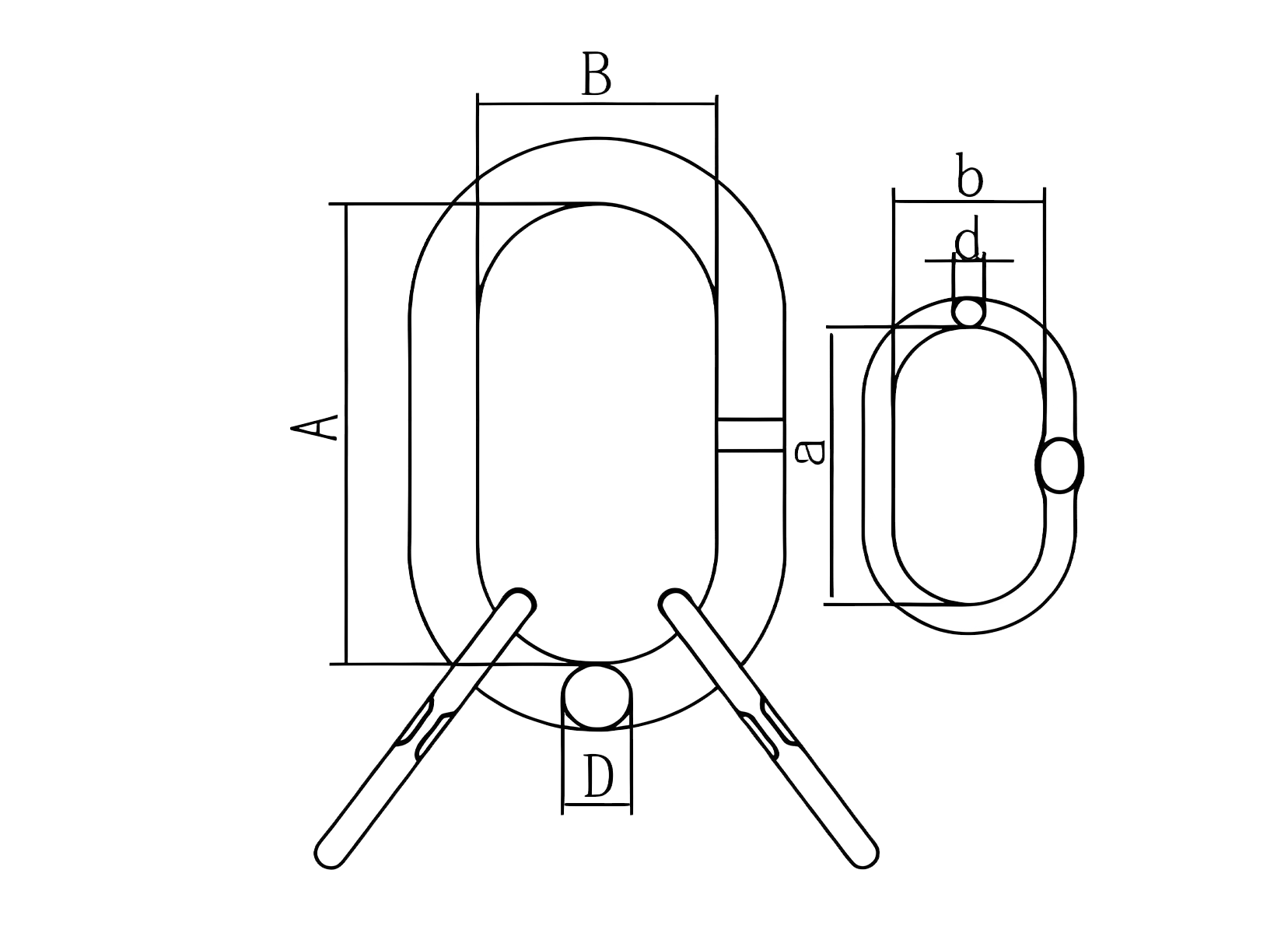

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Dimension(MM) | |||||
| A | B | D | a | b | d | ||||
| 06 | 1.8 | 3.5 | 14 | 150±5 | 90±4 | 19±1.5 | 120±5 | 70±4 | 14±1.5 |
| 08 | 3 | 5 | 20 | 160±5 | 95±4 | 22±1.5 | 140±5 | 80±4 | 18±1 |
| 10 | 6.5 | 11.5 | 46 | 200±5 | 120±5 | 30±1.5 | 160±5 | 95±4 | 22±1.5 |
| 13 | 15 | 17 | 68 | 250±6 | 150±5 | 40±2 | 190±5 | 110±5 | 26±1.5 |
| 16 | 23 | 28 | 112 | 300±6 | 200±5 | 50±2 | 200±5 | 120±5 | 32±2 |
Ultimate Load is 4 times the Working Load Limit
All size: there will be pressing flat only on request
The pressing flat is for use with G100 OMEGA LINK
