◆ Forged super alloy steel-Quenched and Tempered
◆ 25% stronger than G80
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
#1 MARINE HARDWARE
G100 U.S. Type Master Link
◆ Forged super alloy steel-Quenched and Tempered
◆ 25% stronger than G80
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
Product Details

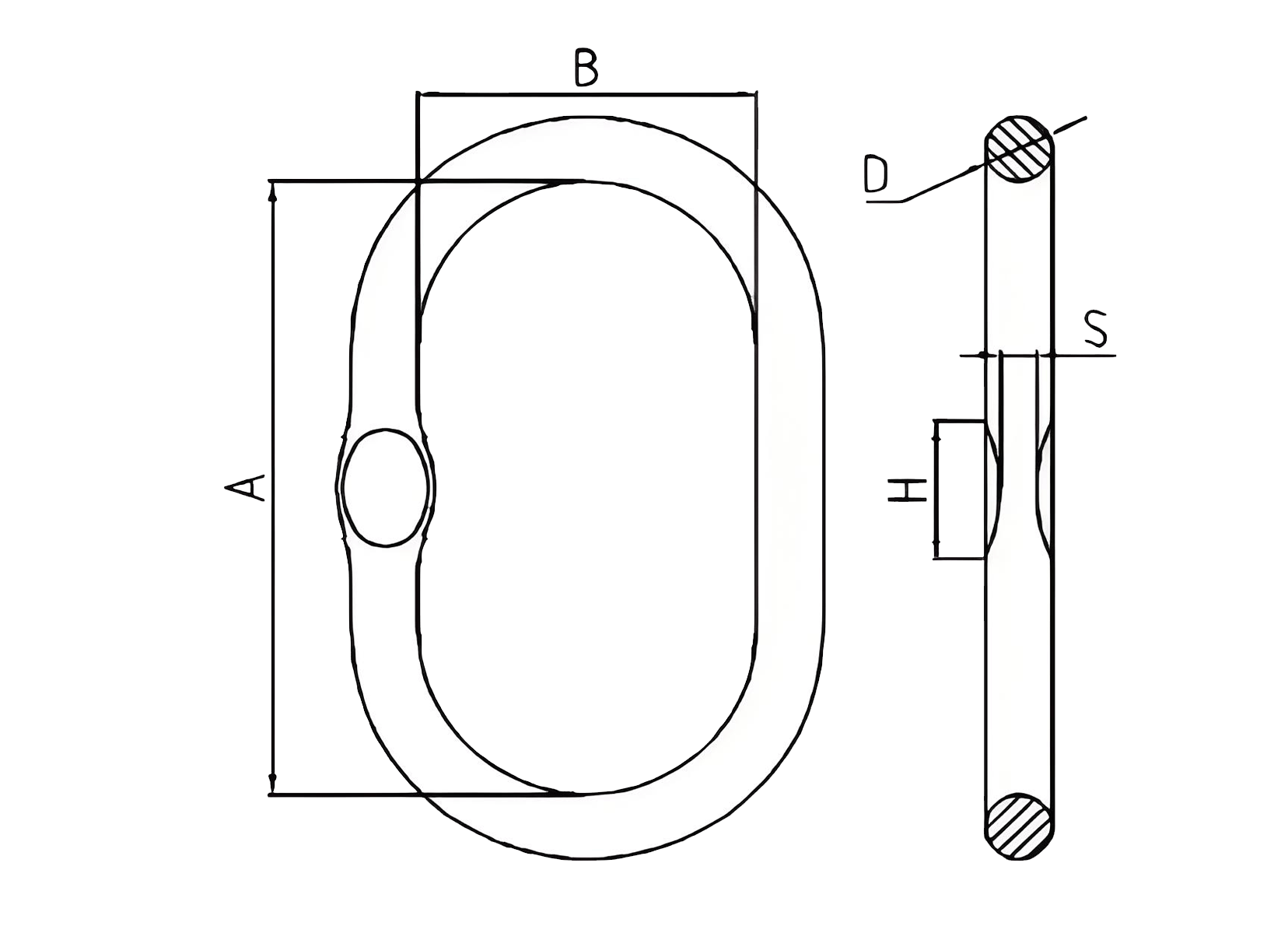

| Chain Size | Weight (Kg) | Chain | WLL | A | B | D | S×H | ||
| 1 leg (T) | 2 leg(0-60°) (T) | Rope (T) | |||||||
| 1/2-A | 0.36 | 7/32(6mm) | 1.22 | 2.2 | 2.8 | 127 | 63.5 | 13 | 7X30 |
| 1/4(7mm) | 2 | 一 | |||||||
| 1/2 | 0.6 | 1/4(7mm) | 2 | 3.4 | 3.4 | 127 | 70 | 16 | 8X35 |
| 5/16 | 2.6 | 一 | |||||||
| 5/8 | 0.7 | 5/16 | 2.6 | 一 | 4 | 152 | 76 | 16 | 8X35 |
| 3/4 | 0.9 | 5/16 | 2.6 | 4.5 | 5.6 | 152 | 80 | 18 | 8X35 |
| 3/8 | 4 | 一 | |||||||
| 7/8 | 1.5 | 3/8 | 4 | 6.9 | 6.9 | 160 | 95 | 22 | 11×45 |
| 1/2 | 6.8 | 一 | |||||||
| 1 | 2.8 | 1/2 | 6.8 | 11.8 | 11.8 | 190 | 110 | 27 | 14X55 |
| 5/8 | 10.3 | 一 | |||||||
| 1-1/4 | 5.4 | 5/8 | 10.3 | 17.7 | 17.7 | 240 | 140 | 33 | 17X60 |
| 3/4 | 16 | 一 | |||||||
| 1-1/2 | 8.2 | 3/4 | 16 | 27.7 | 27.7 | 267 | 150 | 40 | 21X70 |
| 7/8 | 19.4 | 一 | |||||||
| 1-3/4 | 11.4 | 7/8 | 19.4 | 33.6 | 38.5 | 305 | 152 | 45 | 一 |
| 1 | 27.1 | 一 | |||||||
| 2 | 16.8 | 1 | 27.1 | 46.9 | 46.5 | 355 | 178 | 51 | 一 |
| 11/4 | 41 | 一 | |||||||
| 2-1/4 | 24.5 | 11/4 | 41 | 64.9 | 64.9 | 406 | 203 | 57 | 一 |
| 2-1/2 | 31.1 | 11/4 | 41 | 71 | 72.6 | 406 | 203 | 64 | 一 |
Ultimate Load is 5 times the Working Load Limit
