G100 U.S. Type Master Link Assembly
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
◆ All sizes: Main link:forged,Sub link:welded
Product Details

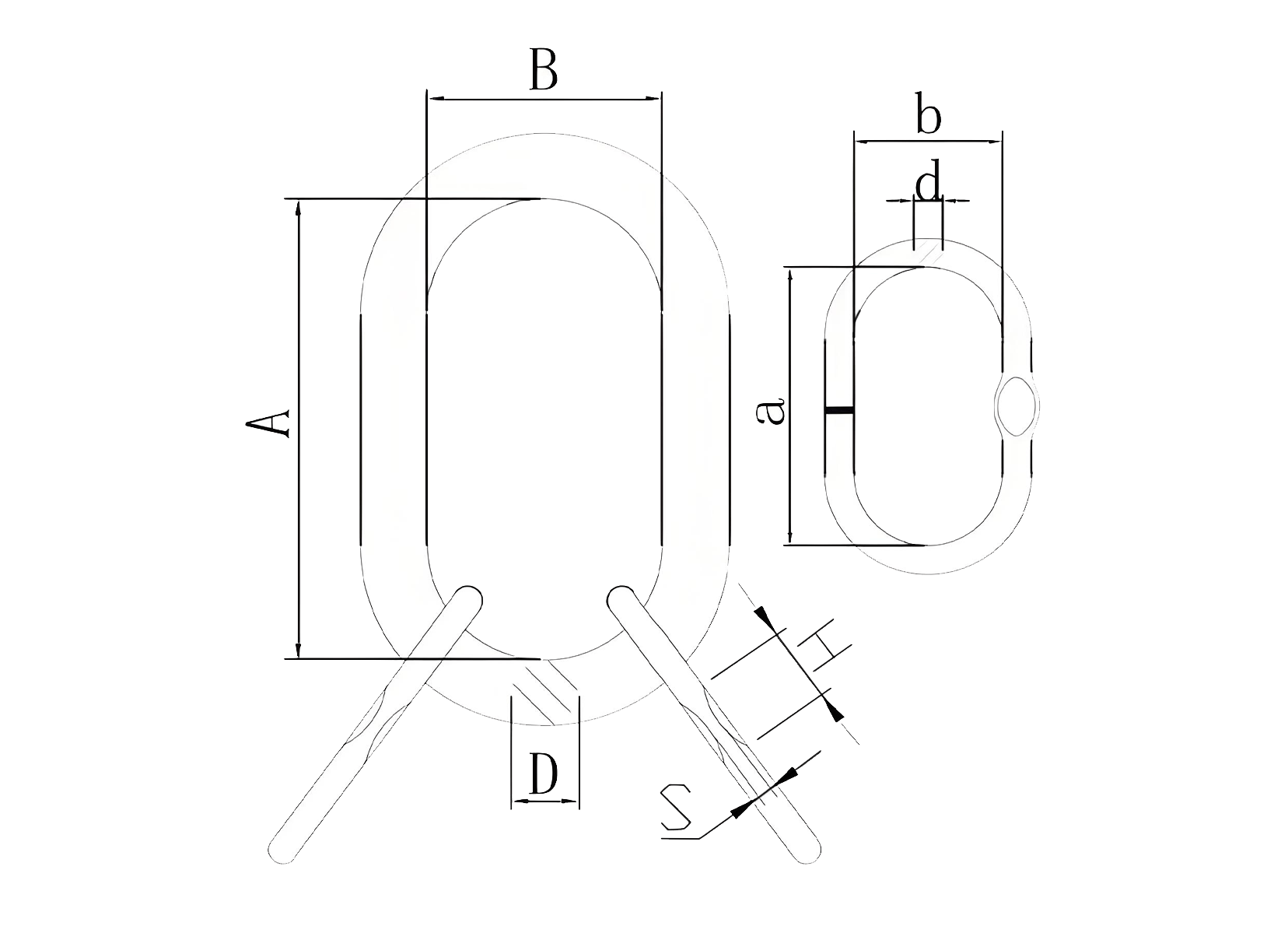

| Chain Size | Weight (Kg) | Chain | WLL | A | B | D | a | b | d | S×H | |
| 3 or 4 leg (0-60) (T) | Rope (T) | ||||||||||
| 3/4 | 1.59 | 1/4 | 5.1 | 5.6 | 152 | 80 | 18 | 85 | 45 | 14 | 7×25 |
| (7mm) | |||||||||||
| 7/8 | 2.18 | 5/16 | 6.7 | 6.9 | 160 | 95 | 22 | 85 | 45 | 16 | 8X28 |
| 1 | 4.22 | 3/8 | 10.4 | 11.8 | 190 | 110 | 27 | 100 | 60 | 18 | 11×35 |
| 1-1/4 | 7.17 | 1/2 | 17.7 | 17.7 | 240 | 140 | 33 | 160 | 90 | 25 | 14×45 |
| 1-1/2 | 15.2 | 5/8 | 26.6 | 27.7 | 267 | 150 | 40 | 180 | 100 | 32 | 17X55 |
| 1-3/4 | 22.1 | 3/4 | 41.6 | 38.5 | 305 | 152 | 45 | 180 | 100 | 38 | 21X65 |
| 2-1/4 | 41.4 | 7/8 | 50.3 | 64.9 | 406 | 203 | 57 | 203 | 140 | 45 | — |
| 2-1/2 | 64.4 | 1 | 70.4 | 72.6 | 406 | 203 | 64 | 355 | 178 | 50 | — |
| 3-1/4 | 121 | 11/4 | 1066 | 118.9 | 508 | 254 | 83 | 406 | 203 | 60 | — |
Ultimate Load is 4 times the Working Load Limit
