G100 Chain-Rope Connector
G100 Chain-Rope Connector
Size: 7mm-10mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ 25% stronger than G80
Product Details

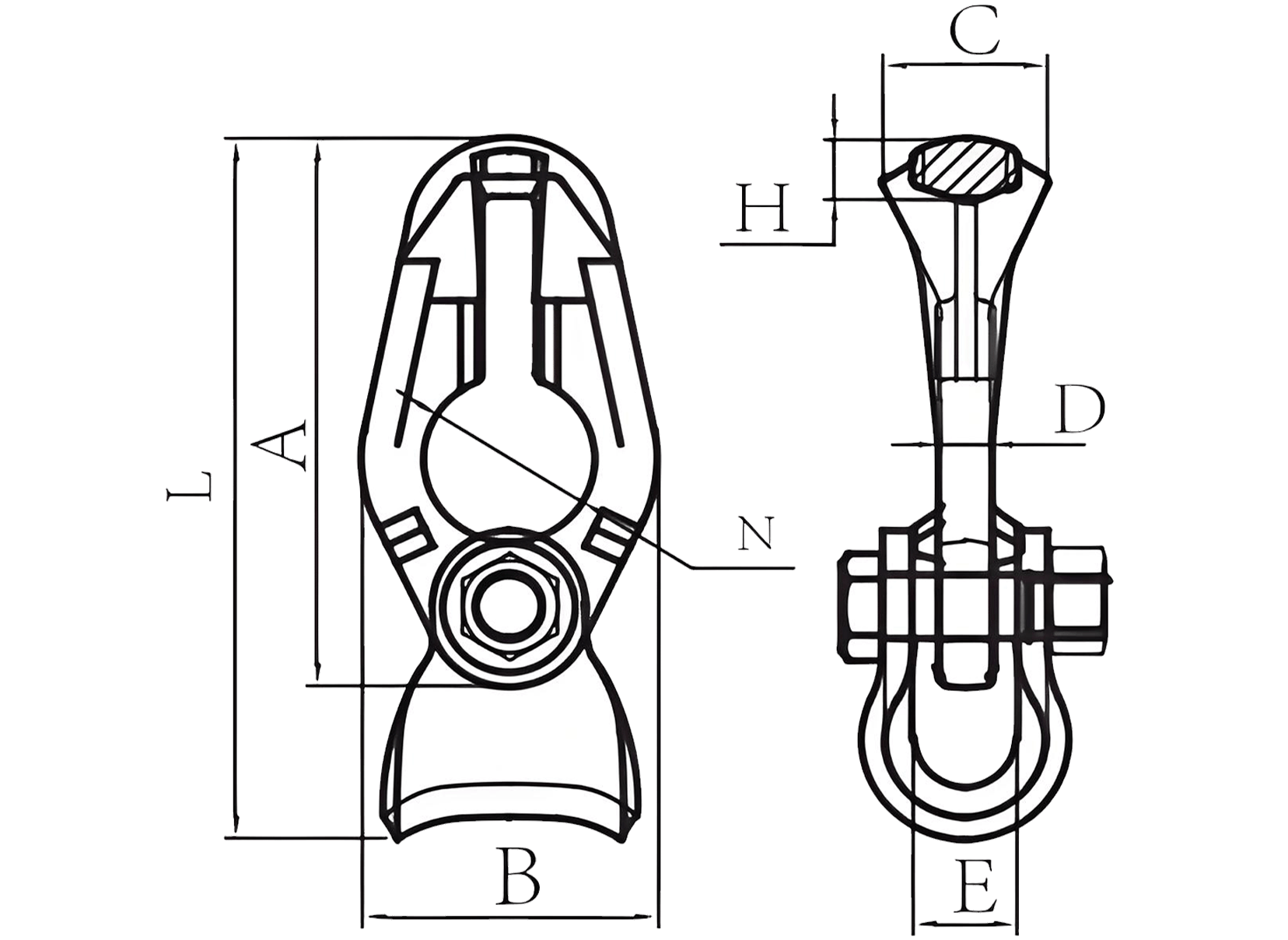

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1 | B+1.5 | C±1 | D±1 | E±1 | Φ±1 | H±1 | L±3 |
| 7/8 | 0.63 | 2 | 10 | 111 | 70 | 32 | 10 | 20 | 33.5 | 12 | 142 |
| 10 | 1.3 | 4 | 16 | 143 | 87.5 | 41 | 11.5 | 20 | 34 | 11.8 | 194.5 |
Ultimate Load is 4 times the Working Load Limit
