#1 MARINE HARDWARE
G100 Clevis C Type Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% individually inspected and tested
Product Details

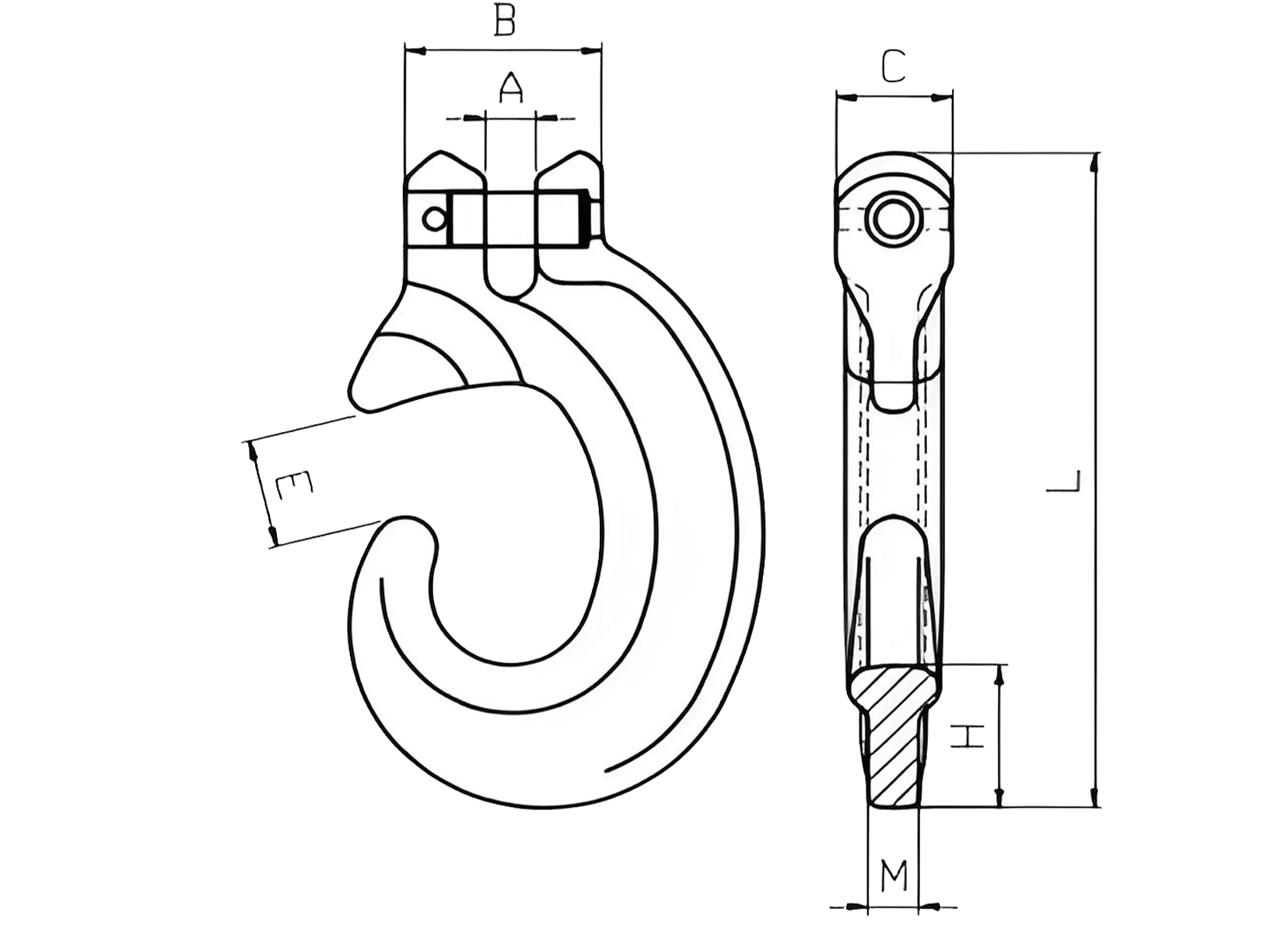

| Chain Size | Weight (Kg) | WLL (T) | BF (T) | A±0.5 | B±1 | C±3 | H±1 | L±3 | M±0.5 | E±1 |
| 8 | 0.54 | 2.5 | 10 | 9.5 | 36.5 | 21.5 | 27.3 | 125.5 | 9.5 | 20.5 |
| 10 | 1.05 | 4 | 16 | 12.5 | 48.5 | 27 | 32.4 | 169 | 12 | 27 |
Ultimate Load is 4 times the Working Load Limit
