G100 Clevis Clutch With Pin
G100 Clevis Clutch With Pin
Size: 6mm-16mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ 25% stronger than G80
Product Details

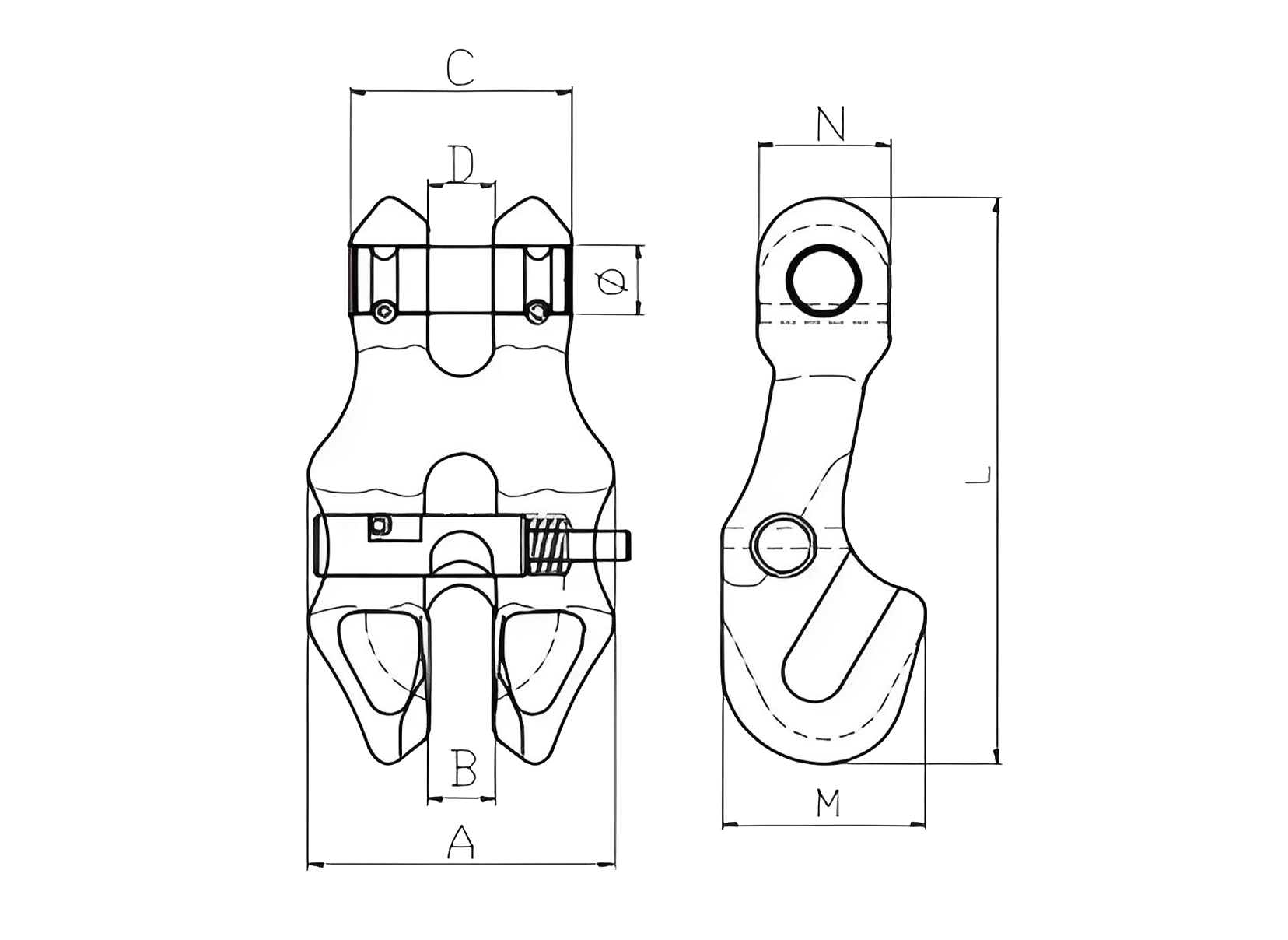

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±0.5 | B±0.5 | C±0.5 | D±0.5 | M±0.5 | N±0.5 | Φ±0.1 | L±3 |
| 6-10 | 0.25 | 1.4 | 5.6 | 38 | 7.5 | 27 | 7.5 | 29 | 16 | 7.7 | 73 |
| 7/8-10 | 0.41 | 2.5 | 10 | 50 | 9.5 | 33 | 9.5 | 36 | 23 | 9.2 | 92 |
| 10-10 | 0.75 | 4 | 16 | 60 | 11.7 | 43.5 | 11.7 | 45.4 | 36 | 13.3 | 115 |
| 13-10 | 1.67 | 6.7 | 26.8 | 79 | 15 | 55 | 15 | 54 | 34 | 16.3 | 149 |
| 16-10 | 4.2 | 10 | 40 | 98 | 19 | 70 | 19 | 70 | 40 | 19.7 | 184 |
Ultimate Load is 4 times the Working Load Limit
