G100 Clevis Forest Hook

Product attributes :

G100 Clevis Forest Hook

Size: 8mm - 13mm

Surface finish: Powder coating

Surface Colour: Blue

Material: Super Alloy steel

Manufacturing process: Forged - Quenched and Tempered

Usage: Suitable for G100 chain

Quality control:

◆ Individually proof test at 2.5 times Working Load Limit

 Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

Note:

◆ 25% stronger than G80

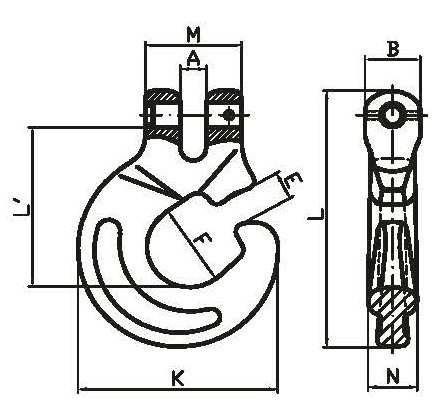

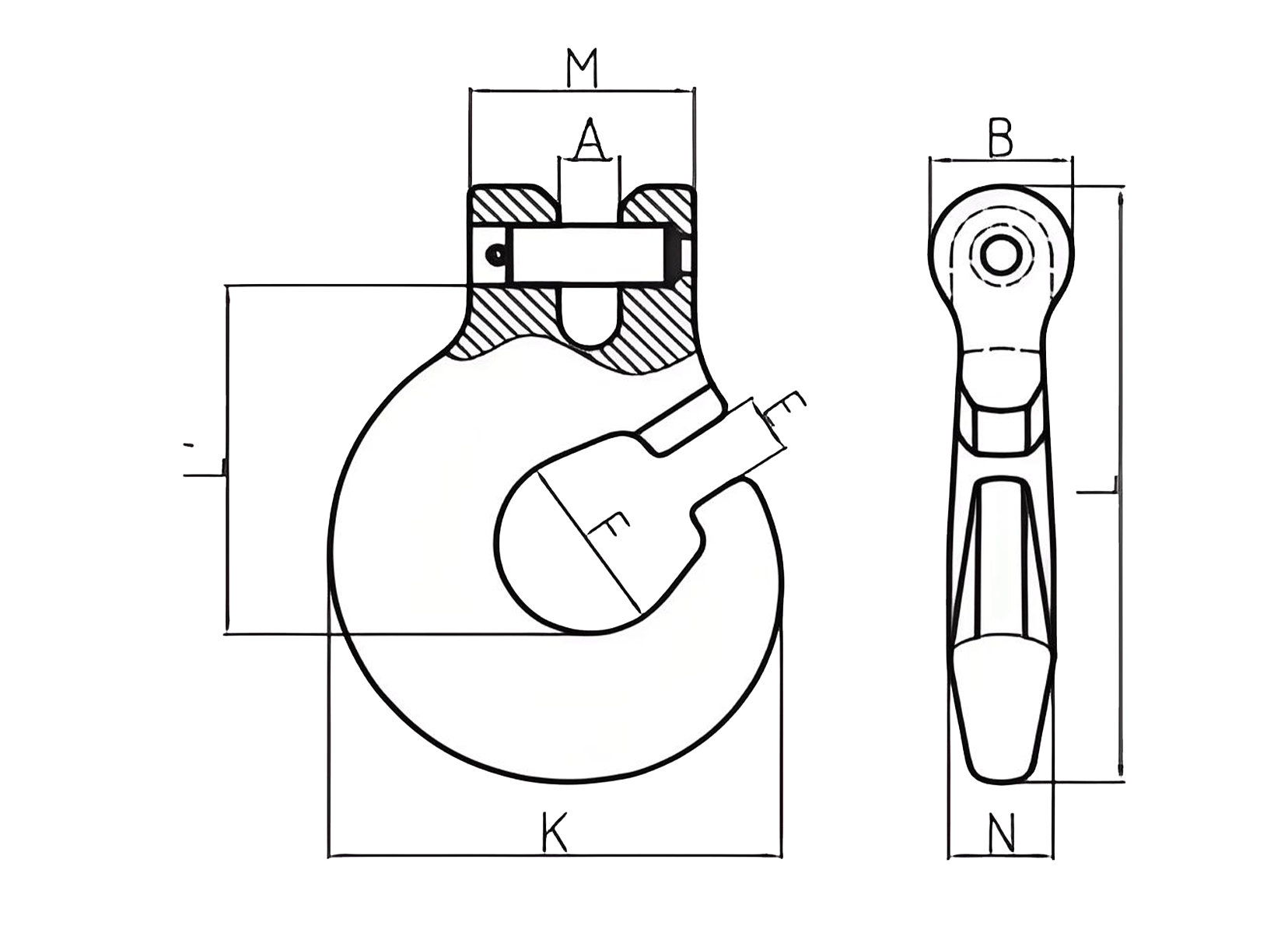

Product Details


Chain SizeWeight
(Kg)
  WLL
  (T)
B.L
(T)
A±1B±1E±1F±1M±1N±2K±2L'±1L±1
80.41   2.5 10 9.5 20 9.8 31 35 18   72.859.4 95.5
131.87   6.7 26.8 16 37.5 17 49.5 59 27 119.597.5162

Ultimate Load is 4 times the Working Load Limit
