G100 Clevis Shortening Grab Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% individually inspected and tested
◆ Surface finish: Powder coating
◆ Colour: Blue
Product Details

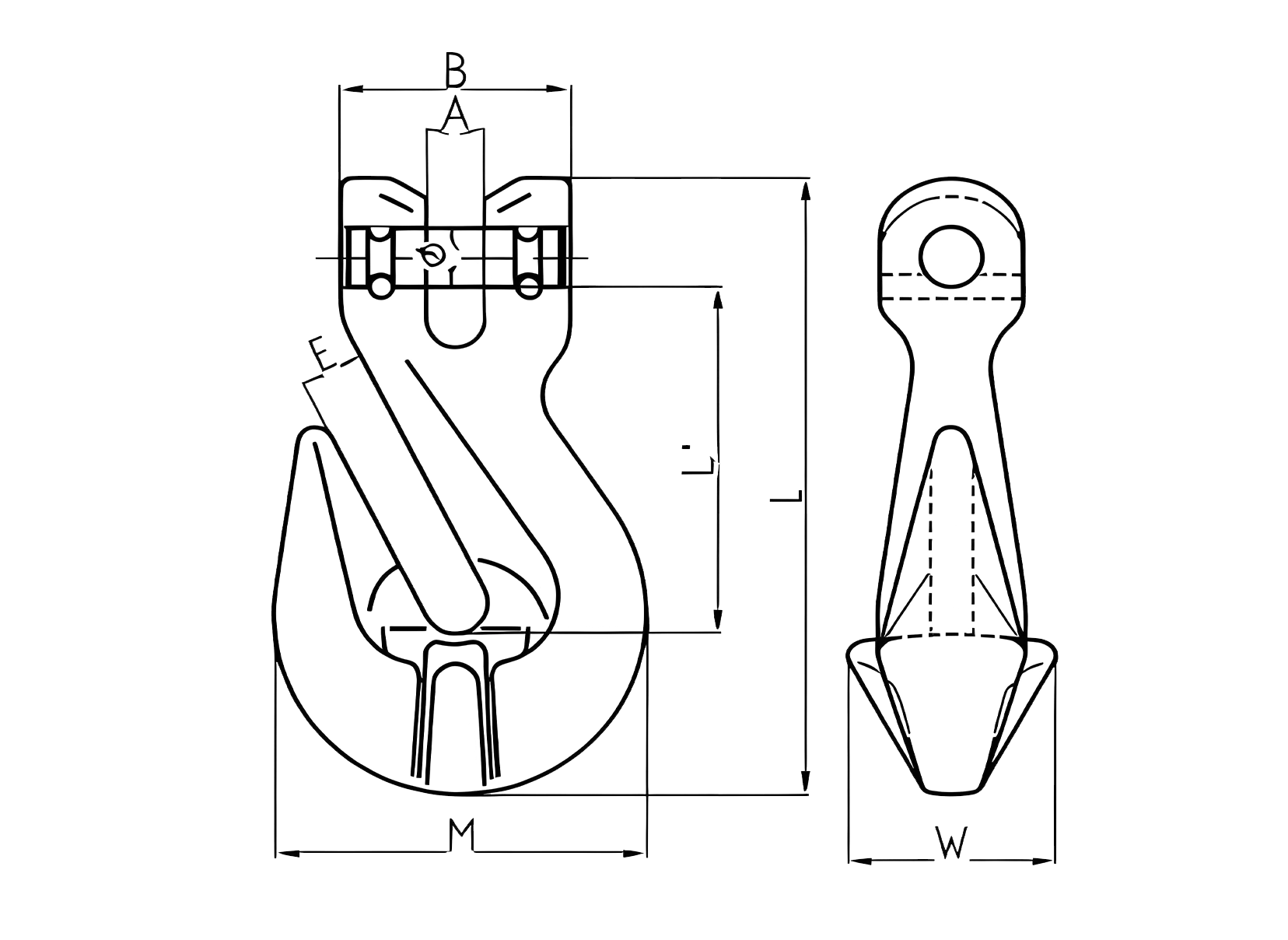

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | E | M | W | L' | L | Φ |
| 06 | 0.22 | 1.4 | 5.6 | 7.5±0.5 | 32±1.5 | 18±1 | 8±1 | 43.5±2 | 25.5±1.5 | 44.5±3 | 77.3±2 |
| 08 | 0.34 | 2.5 | 10 | 9.5±0.5 | 36±1.5 | 24±1.5 | 11±1 | 54±2 | 33.5±1.5 | 53±3 | 93±3 |
| 10 | 0.82 | 4 | 16 | 12.5±0.5 | 46±1.5 | 29.5±1. | 13.5±1.5 | 72±2 | 42±2 | 73±3 | 127±3 |
| 13 | 1.75 | 6.7 | 26.8 | 15±1 | 59±1.5 | 37±1.5 | 15±1.5 | 96±2 | 53.5±2 | 92±4 | 164±4 |
| 16 | 2.88 | 10 | 40 | 18.5±1 | 70±2 | 46±2 | 19±1.5 | 115±3 | 74±2.5 | 99±4 | 188±4 |
| 20 | 4.84 | 16 | 64 | 24±1.5 | 85±2 | 52±2 | 25±2 | 145±3 | 87±2.5 | 123±5 | 223±5 |
| 22 | 8.3 | 19 | 76 | 27±2 | 100±2.5 | 61±2.5 | 27±2 | 159±3 | 90±3 | 141±5 | 260±5 |
| 26 | 13.72 | 26.5 | 106 | 30±2 | 110±2.5 | 70±2.5 | 34±2 | 190±4 | 110±3 | 187±5 | 320±5 |
Ultimate Load is 4 times the Working Load Limit
