G100 European Type Connecting Link
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% individually inspected and tested
◆ Surface finish: Powder coating
◆ Colour: Blue
Product Details

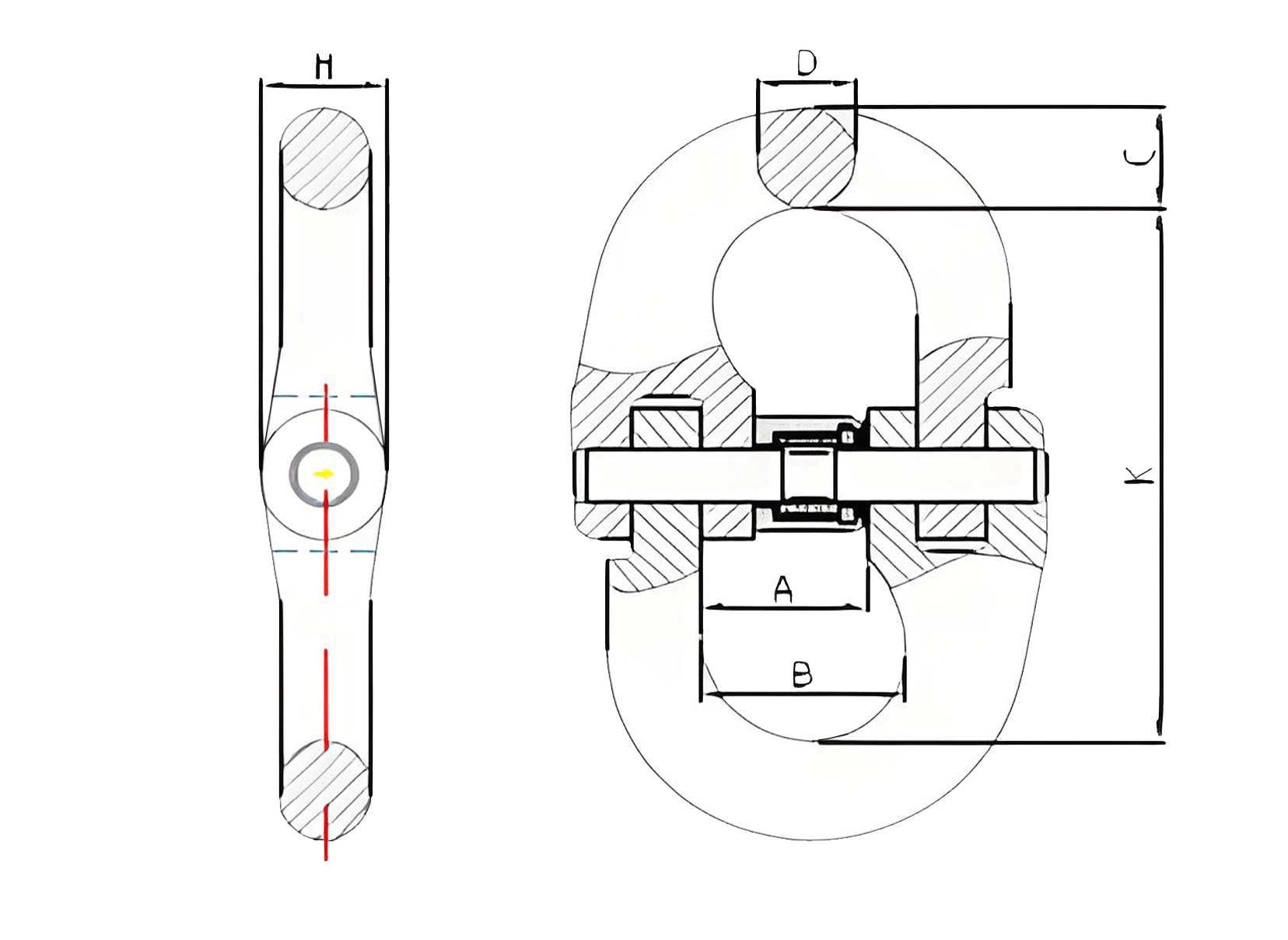

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | C | D | K | H |
| 06 | 0.08 | 1.4 | 5.6 | 14±0.8 | 16.9±0.8 | 8.5±0.8 | 7±0.5 | 44.5±2.5 | 11+0.5-1 |
| 07 | 0.16 | 1.9 | 7.6 | 18.5±0.8 | 22.5±0.8 | 10±0.8 | 8.2±0.5 | 59±3 | 12.5+0.5-1 |
| 7/8 | 0.17 | 2.5 | 10 | 18.5±0.8 | 22±0.8 | 11±0.8 | 8.5±0.8 | 59±3 | 13+0.5-1 |
| 08 | 0.18 | 2.5 | 10 | 18.5±0.8 | 22.7±1 | 10.5±0.8 | 10±0.8 | 63±3 | 14+0.5-1 |
| 10 | 0.34 | 4 | 16 | 23±1 | 27.7±1 | 12.6±1 | 12.6±1 | 71±3 | 18+0.8-1 |
| 13 | 0.68 | 6.7 | 26.8 | 28±1 | 33.2±1 | 16.5±1 | 16.5±1 | 92.5±3 | 23+0.8-1 |
| 16 | 1.22 | 10 | 40 | 33.5±1 | 39±2 | 20±1 | 20±1 | 106.5±3 | 29.5±1 |
| 20 | 2.13 | 16 | 64 | 42±1 | 47.3±3 | 25±1.5 | 25±1.5 | 123±3 | 35.5±1.5 |
| 22 | 3 | 19 | 76 | 48±1 | 55±3 | 27±1.5 | 27±1.5 | 137.5±3 | 39±2 |
| 26 | 5.22 | 26.5 | 106 | 61±2 | 68±3 | 32±2 | 32±2 | 163±4 | 45±2.5 |
| 32 | 9.55 | 39.3 | 157.2 | 80±2 | 87±3 | 40±3 | 40±3 | 197±4 | 54±3 |
Ultimate Load is 4 times the Working Load Limit
