#1 MARINE HARDWARE
G100 Eye Sling Hook
G100 Eye Sling Hook
Size: 6mm - 16mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for G100 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ 25% stronger than G80
Product Details

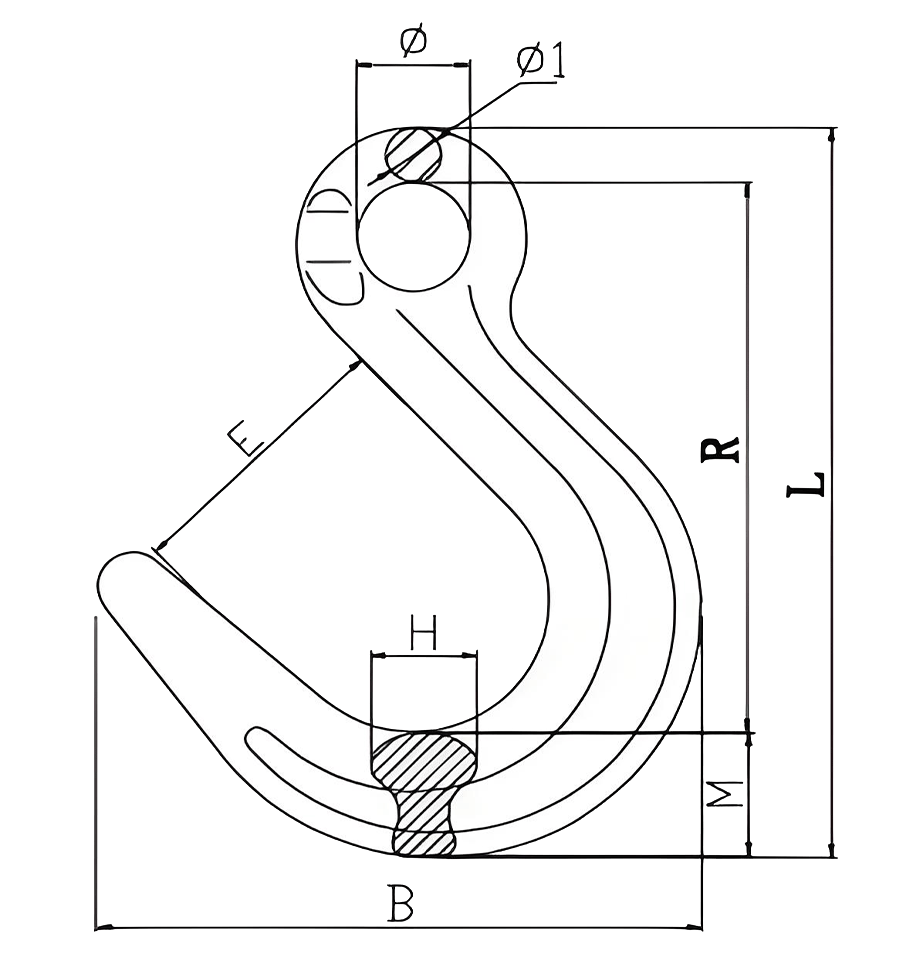

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ±1 | L±3 | B±2 | R±2 | E±1 | Φ1±1 | H±2 | M |
| 6 | 0.382 | 1.4 | 5.6 | 20.5 | 133 | 100 | 102.7 | 49 | 10 | 17 | 19 |
| 8 | 0.72 | 2.5 | 10 | 24 | 158.5 | 130 | 120.5 | 62 | 12 | 19 | 27.5 |
| 10 | 1.25 | 4 | 16 | 31.5 | 199 | 152.5 | 1532 | 73 | 15 | 25 | 31 |
| 13 | 2.32 | 6.7 | 26.8 | 44 | 241.5 | 186 | 184 | 90 | 19 | 33 | 39.3 |
| 16 | 3.45 | 10 | 40 | 49 | 279 | 218 | 216 | 105 | 22 | 37 | 42 |
Ultimate Load is 4 times the Working Load Limit
