G100 Eye Shortening Grab Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ Suitable for G100 chain
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour: Blue
Product Details

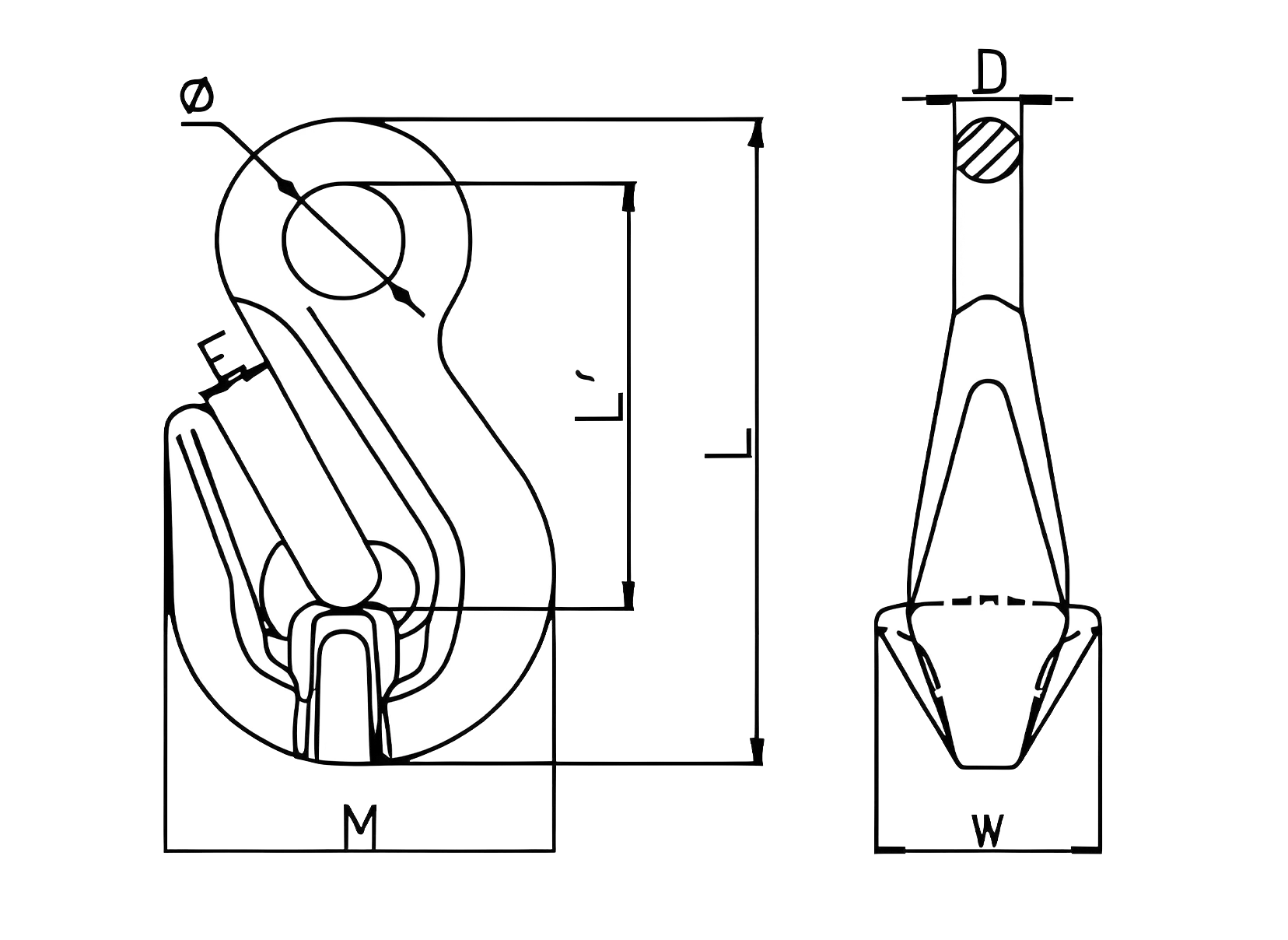

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | E | Φ | D | M | L | L' | W |
| 06 | 0.15 | 1.4 | 5.6 | 8±1 | 13.5±1 | 8±0.5 | 43.5±2 | 73±3 | 46±3 | 25.5±1.5 |
| 08 | 0.3 | 2.5 | 10 | 11±1 | 17.5±1 | 9.5±0.5 | 53±2 | 93±3 | 61±3 | 33.5±1.5 |
| 10 | 0.79 | 4 | 16 | 13.5±1.5 | 22±1.5 | 14±0.5 | 74±2 | 129±3 | 85±3 | 42±2 |
| 13 | 1.67 | 6.7 | 26.8 | 15±1.5 | 27±1.5 | 18.5±1 | 96±3 | 166±4 | 104±4 | 53.5±2 |
| 16 | 2.74 | 10 | 40 | 19±1.5 | 36±2 | 22±1 | 116±3 | 186±4 | 119±4 | 74±2.5 |
| 20 | 4.72 | 16 | 64 | 25±2 | 44±2 | 23±1.5 | 145±3 | 225±5 | 146±5 | 87±2.5 |
| 22 | 8.2 | 19 | 76 | 27±2 | 48.5±2 | 26±1.5 | 160.5±3 | 260.5±5 | 165.5±5 | 90±3 |
| 26 | 11.35 | 26.5 | 106 | 34±2 | 52±2 | 34±1.5 | 190±3 | 311±5 | 204±5 | 110±3 |
Ultimate Load is 4 times the Working Load Limit
