G100 European Type Master Link
G100 European Type Master Link
Size: 5mm - 72mm
Surface finish: Powder coating
Surface Colour: Blue
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ 25% stronger than G80
◆ All sizes are forged
◆ The pressing flat is for use with Omega link
Product Details

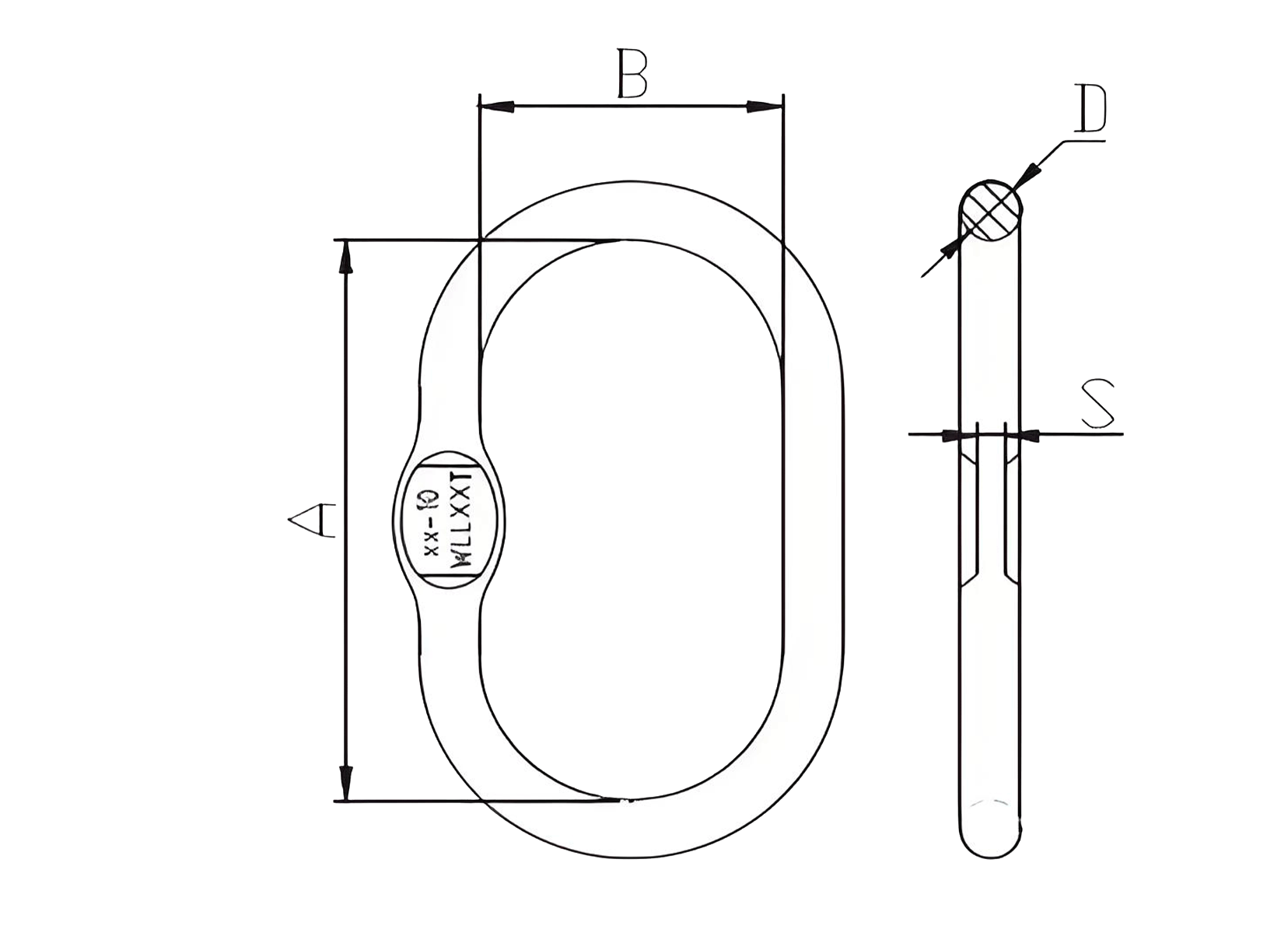

| Chain Size | Weight (Kg) | WLL (T) | A | B | D | S×H | ChainΦ | |
| 1LEG | 2LEGS | |||||||
| 05 | 0.14 | 1.4 | 80 | 50 | 10 | —— | 5 | 5 |
| 76 | 0.34 | 2.3 | 110 | 60 | 13 | 7+0.3×25 | 6-7 | 6 |
| 87 | 0.53 | 3.5 | 110 | 60 | 16 | 7+0.5×25 | 8 | 7 |
| 108 | 0.86 | 5 | 135 | 75 | 18 | 8+0.5×28 | 10 | 8 |
| 1310 | 1.60 | 7.6 | 160 | 90 | 23 | 11±0.5×35 | 13 | 10 |
| 1613 | 2.46 | 10 | 180 | 100 | 27 | 13±0.5×43 | 16 | 13 |
| 1916 | 4.14 | 14 | 200 | 110 | 33 | 17±0.5×55 | 19 | 16 |
| 2219 | 6.22 | 25.1 | 260 | 140 | 36 | 19±0.5×60 | 22 | 19 |
| 2622 | 12.85 | 30.8 | 340 | 180 | 45 | —— | 26 | 22 |
| 3226 | 16.22 | 40 | 350 | 190 | 50 | —— | 32 | 26 |
| 0032 | 27.01 | 60 | 400 | 200 | 60 | —— | —— | 32 |
| 72MM | 45 | 81.5 | 460 | 250 | 70 | —— | —— | —— |
Ultimate Load is 4 times the Working Load Limit
