G100 Special Clevis Grab Hook with Safety Pin

#1 MARINE HARDWARE

G100 Special Clevis Shortening Grab Hook With Safety Pin

Product attributes :

◆ Forged super alloy steel-Quenched and Tempered

◆ Suitable for G100 chain

◆ 25% stronger than G80

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour: Blue

◆ Adjust G100 chain length

◆ With safety pin

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

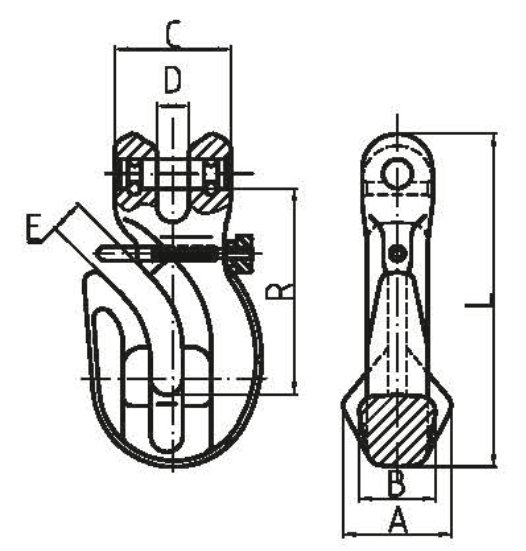

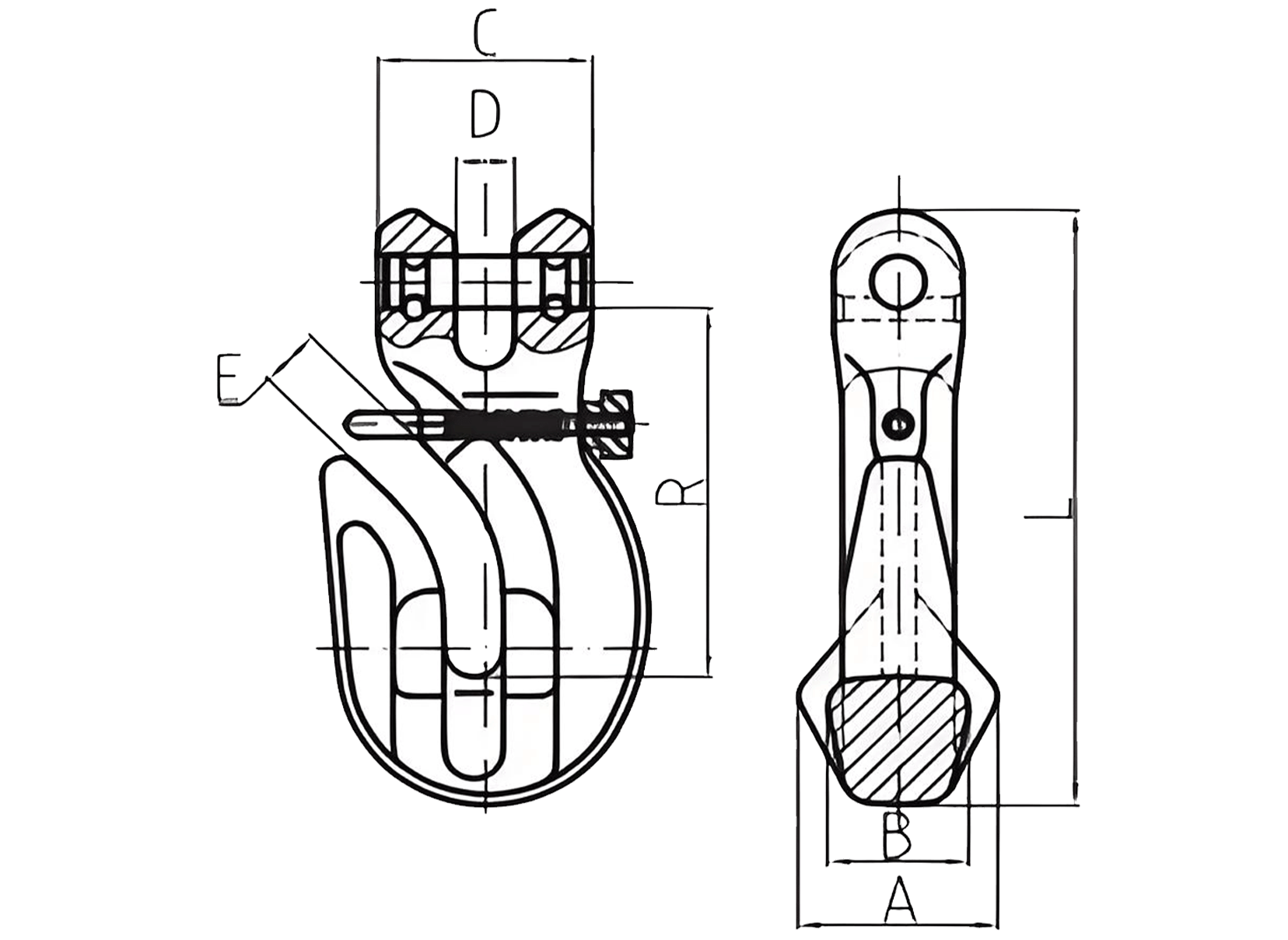

A±1B±0.8C±1R±1.5D±0.5E±0.5L±2
80.62   2.5 10 35.5 25 38   66 10 10.5 109
101.16 16  44 32 46   82 12   13 134
132.6   6.7 26.8  57 40 59.5   107 15 15.5 175.5

Ultimate Load is 4 times the Working Load Limit
