G100 Webbing Sling Hook
◆ Forged super alloy steel-Quenched and Tempered
◆ 25% stronger than G80
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% individually inspected and tested
◆ Surface finish: Powder coating
◆ Colour: Blue
Product Details

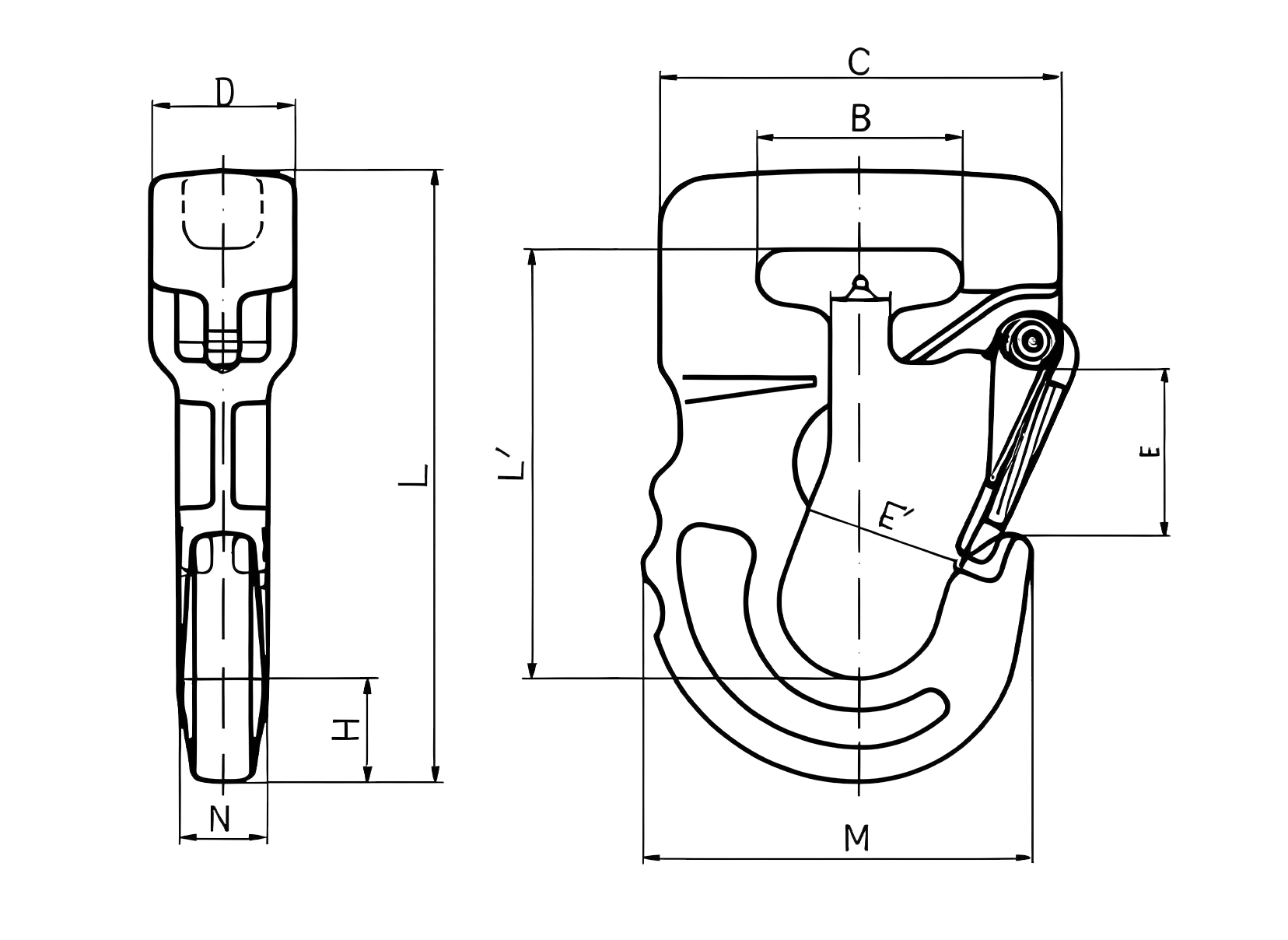

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1 | B±1 | C±1 | D±1 | M±1 | N±0.5 | E±0.5 | E'±0.5 | L±3 | L'±3 | H±1 |
| 1T | 0.73 | 1 | 4 | 11.5 | 40 | 78 | 28 | 75.7 | 17 | 33 | 30 | 124 | 87 | 21 |
| 2T | 1.27 | 2 | 8 | 18.5 | 44.5 | 91 | 35 | 90 | 21 | 40 | 39 | 148 | 103 | 27 |
| 3T | 2.3 | 3 | 12 | 21.5 | 54 | 114 | 45 | 110 | 26 | 41 | 48 | 175 | 115 | 33 |
| 4T | 4.73 | 4 | 16 | 40.5 | 76 | 133 | 56 | 139 | 32 | 50.5 | 60 | 223.5 | 147 | 40.5 |
| 5T | 4.73 | 5 | 20 | 40.5 | 76 | 133 | 56 | 139 | 32 | 50.5 | 60 | 223.5 | 147 | 40.5 |
| 6T | 4.73 | 6 | 24 | 40.5 | 76 | 133 | 56 | 139 | 32 | 50.5 | 60 | 223.5 | 147 | 40.5 |
Ultimate Load is 4 times the Working Load Limit
