#1 MARINE HARDWARE
G80 Swivel Self-Lock Hook IMPROVED
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

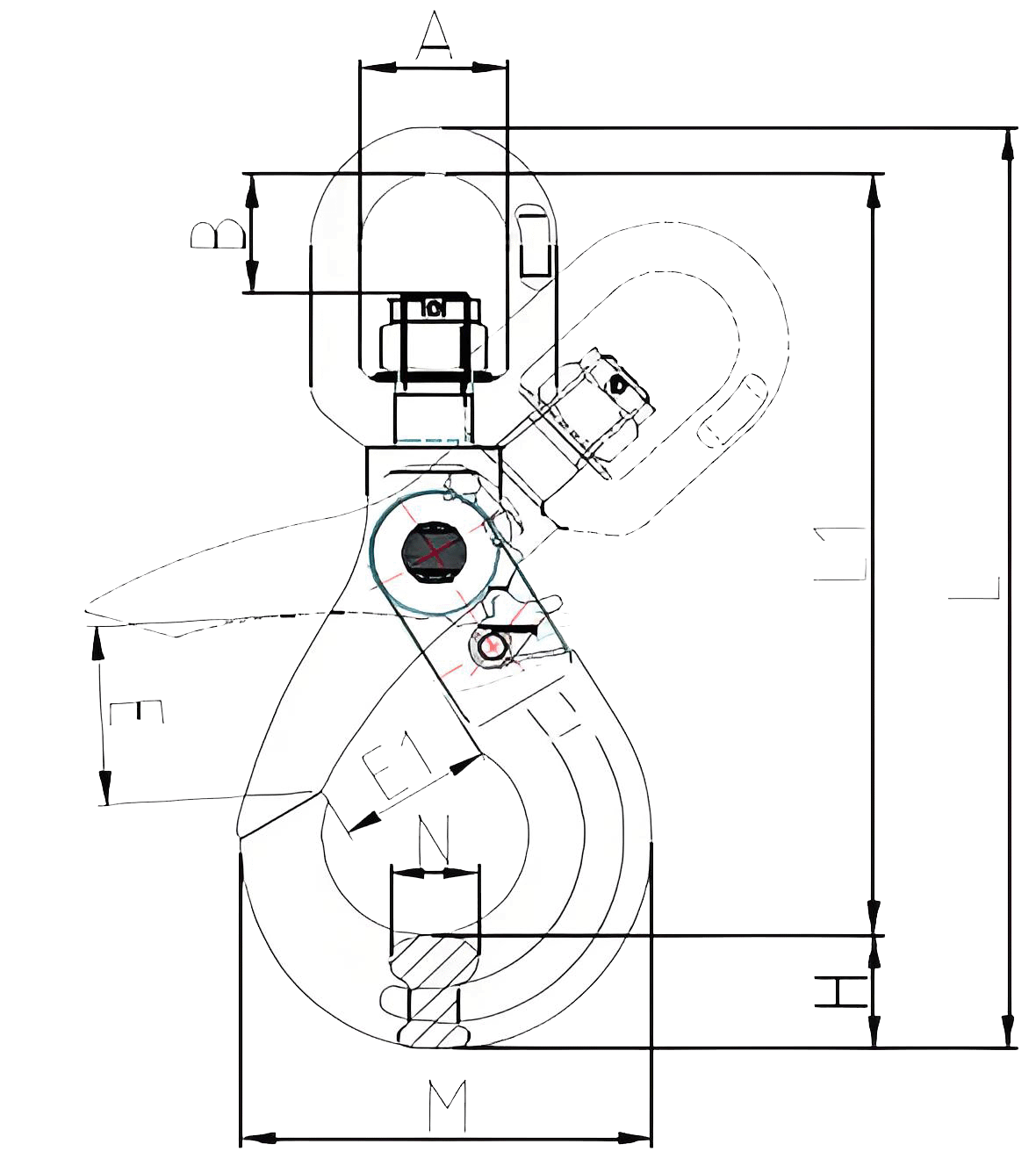

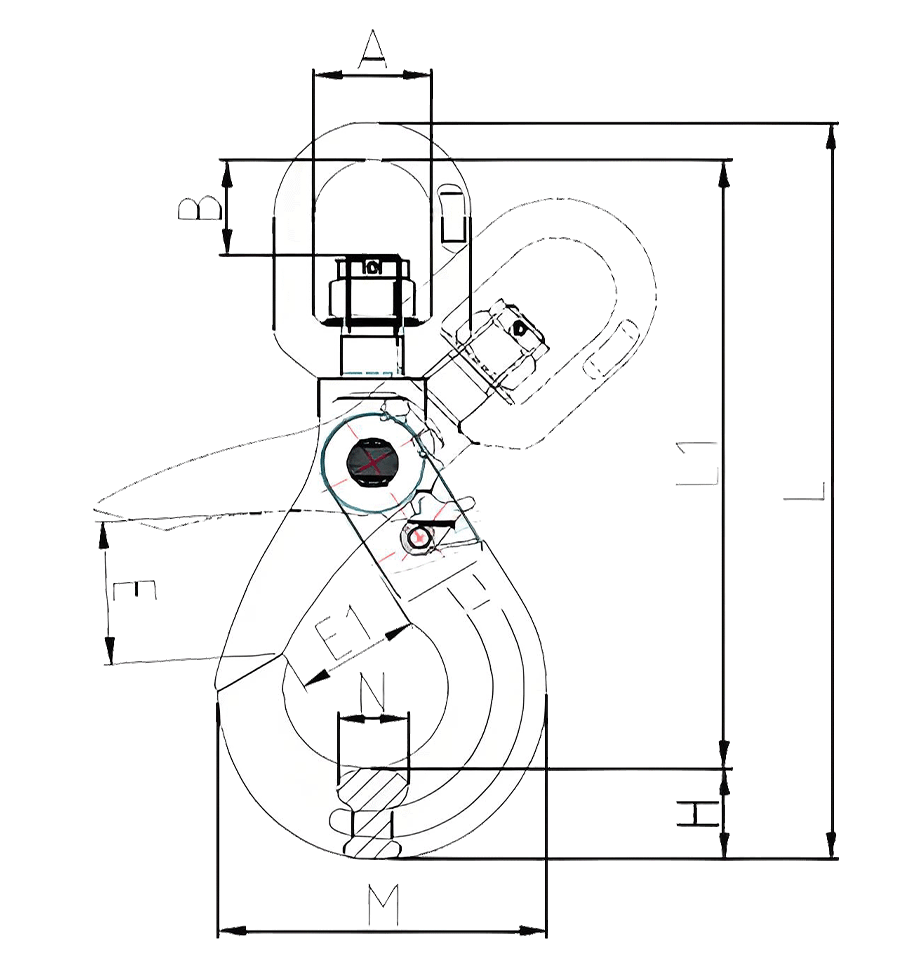

| Chain Size | Weight (kg) | WLL (T) | B.L (T) | A±1 | B±1 | E | E1 | L1 | L | H | N | M |
| 6-8 | 0.71 | 1.12 | 4.48 | 32.5±1 | 25.5±2 | 32±2 | 28±1 | 152±3 | 184±3 | 20±1 | 15 | 73±2 |
| 7/8-8 | 1.15 | 2 | 8 | 36±1 | 29.5±2 | 40±3 | 35±1 | 189±3 | 228±3 | 26±1 | 20 | 91±2 |
| 10-8 | 1.86 | 3.15 | 12.6 | 42±1 | 35±2 | 48±3 | 45±2 | 223±3 | 268±3 | 30±1.5 | 26±1 | 108±2 |
| 13-8 | 3.51 | 5.3 | 21.2 | 50±1 | 41±2 | 57±3 | 52.5±2 | 267±4 | 323±4 | 40±1.5 | 33±1 | 142±3 |
| 16-8 | 7.33 | 8 | 32 | 61±1.5 | 58±2.5 | 65±4 | 63±2 | 339±4 | 413±4 | 50.5±2 | 38±2 | 168.6±3 |
| 18/20-8 | 10.3 | 125 | 50 | 72±1.5 | 63±2.5 | 82±4 | 82±3 | 370±5 | 452±5 | 55±2 | 50±2 | 185±4 |
| 22-8 | 17.5 | 15 | 60 | 97±2 | 98±3 | 80±5 | 76±3 | 466±5 | 564±5 | 67±2 | 52±3 | 202±4 |
| 26-8 | 23 | 21.2 | 84.8 | 123±2 | 115±3 | 109±5 | 96±4 | 544±6 | 661±6 | 75±3 | 60±3 | 239±5 |
| 32-8 | 81 | 31.5 | 126 | 140±2 | 147±3 | 131±6 | 131±4 | 679±6 | 830±6 | 97±3 | 79.5±3 | 329±5 |
Ultimate Load is 4 times the Working Load Limit
