#1 MARINE HARDWARE
G80 Eye Self-Lock Hook IMPROVED
◆ Forged super alloy steel - Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

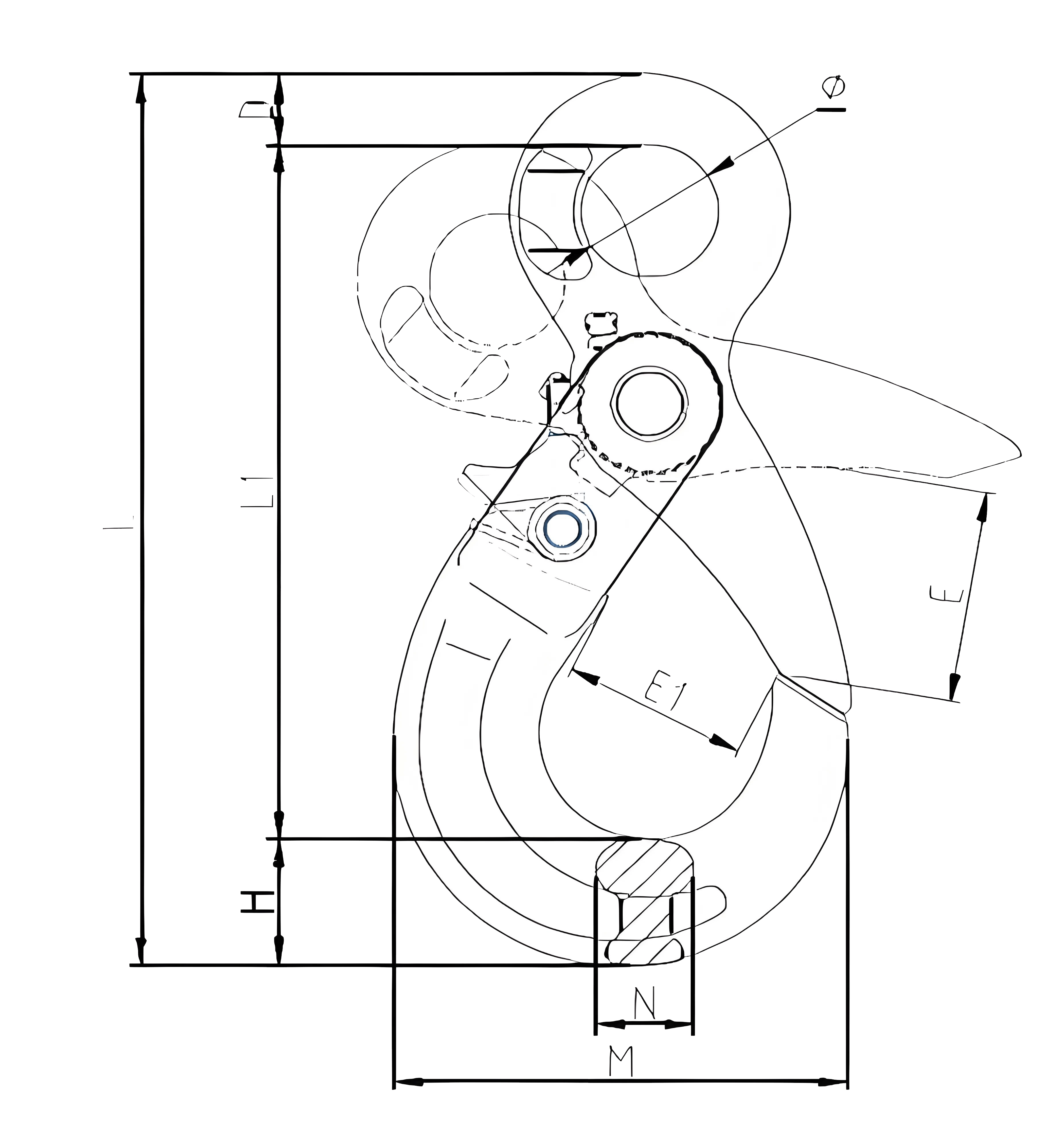

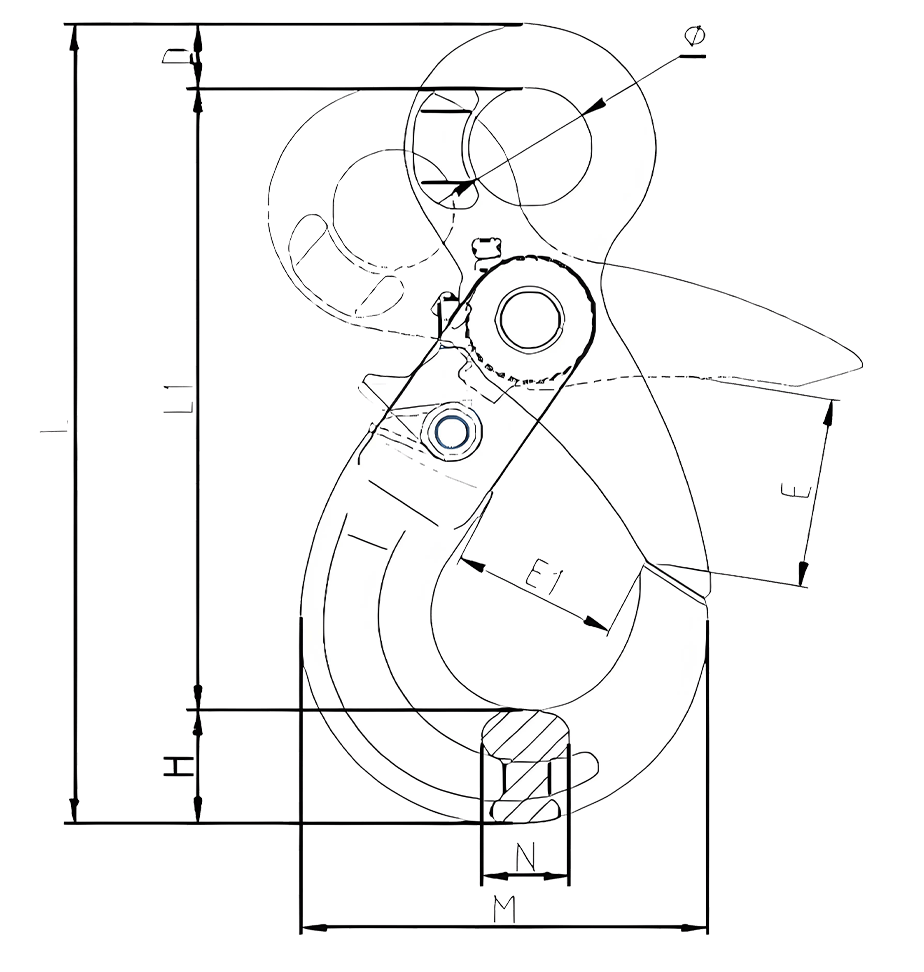

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ | E | E1 | L1 | L | H | D | N | M |
| 06 | 0.5 | 1.12 | 4.48 | 21±1 | 32±2 | 28±1 | 110±3 | 140±3 | 20±1 | 11±0.5 | 15±0.5 | 73±2 |
| 7/8 | 0.85 | 2 | 8 | 25±1 | 40±3 | 35±1 | 136±3 | 175±3 | 26±1 | 13±0.5 | 20±0.5 | 91±2 |
| 10 | 1.42 | 3.15 | 12.6 | 34.5±1.5 | 48±3 | 45±1.5 | 168±3 | 213±3 | 30±1.5 | 15±0.5 | 26±1 | 108±2 |
| 13 | 2.86 | 5.3 | 21.2 | 39.5±1.5 | 27±3 | 52.5±2 | 207±4 | 267±4 | 40±1.5 | 21±0.5 | 33±1 | 142±3 |
| 16 | 5.9 | 8 | 32 | 50±2 | 65±3 | 63±2 | 254±4 | 332±4 | 50.5±2 | 27±0.5 | 38±2 | 168.6±3 |
| 20 | 8.5 | 12.5 | 50 | 64.5±2 | 82±3.5 | 82±2 | 278±5 | 360±5 | 55±2 | 27±0.5 | 50±2 | 185±4 |
| 22 | 11.6 | 15 | 60 | 70±3 | 80±3.5 | 76±2 | 319±5 | 415±5 | 67±2 | 32±1 | 52±2 | 202±4 |
| 26 | 18 | 21.2 | 84.8 | 80±3 | 109±3. | 96±3 | 362±6 | 472±5 | 75±3 | 34±1 | 60±3 | 239±5 |
| 32 | 46 | 31.5 | 126 | 105±4 | 131±3. | 131±3 | 470±6 | 614±5 | 97±3 | 45±1 | 79.5±3 | 329±5 |
Ultimate Load is 4 times the Working Load Limit
