G80 Clevis Sling Hook With Cast Latch
G80 Clevis Sling Hook With Cast Latch
Size: 6mm-20mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note: Positive lock latch is Self-Locking when hook is loade
Product Details

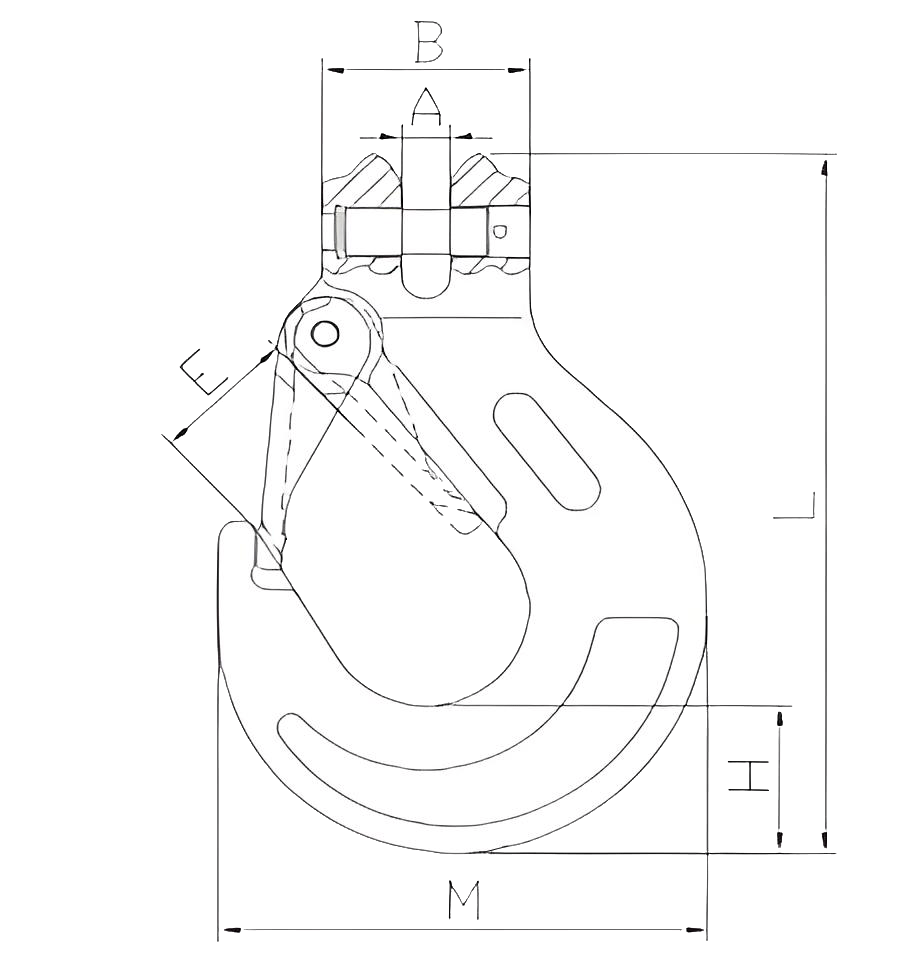

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±0.5 | B±1.2 | E±1 | H±2 | M±1 | L±2 |
| 6 | 0.3 | 1.12 | 4.48 | 8 | 32 | 19.5 | 20 | 68 | 108 |
| 7/8 | 0.55 | 2 | 8 | 9.5 | 38.5 | 24 | 25 | 87.4 | 129.5 |
| 10 | 0.96 | 3.15 | 12.6 | 12.5 | 48 | 28 | 36 | 106.7 | 163.5 |
| 13 | 1.52 | 5.3 | 21.2 | 16 | 56 | 35 | 41.6 | 130 | 195.5 |
| 16 | 3.43 | 8 | 32 | 18.5 | 65.5 | 43 | 46.2 | 155.5 | 236 |
| 20 | 6.73 | 12.5 | 50 | 24.5 | 92 | 51.6 | 51 | 180 | 281 |
Ultimate Load is 4 times the Working Load Limit
