G80 European Type Connecting Link
◆ Forged super alloy steel - Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% ivdividually inspected and tested
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Also available in stainless steel
Product Details

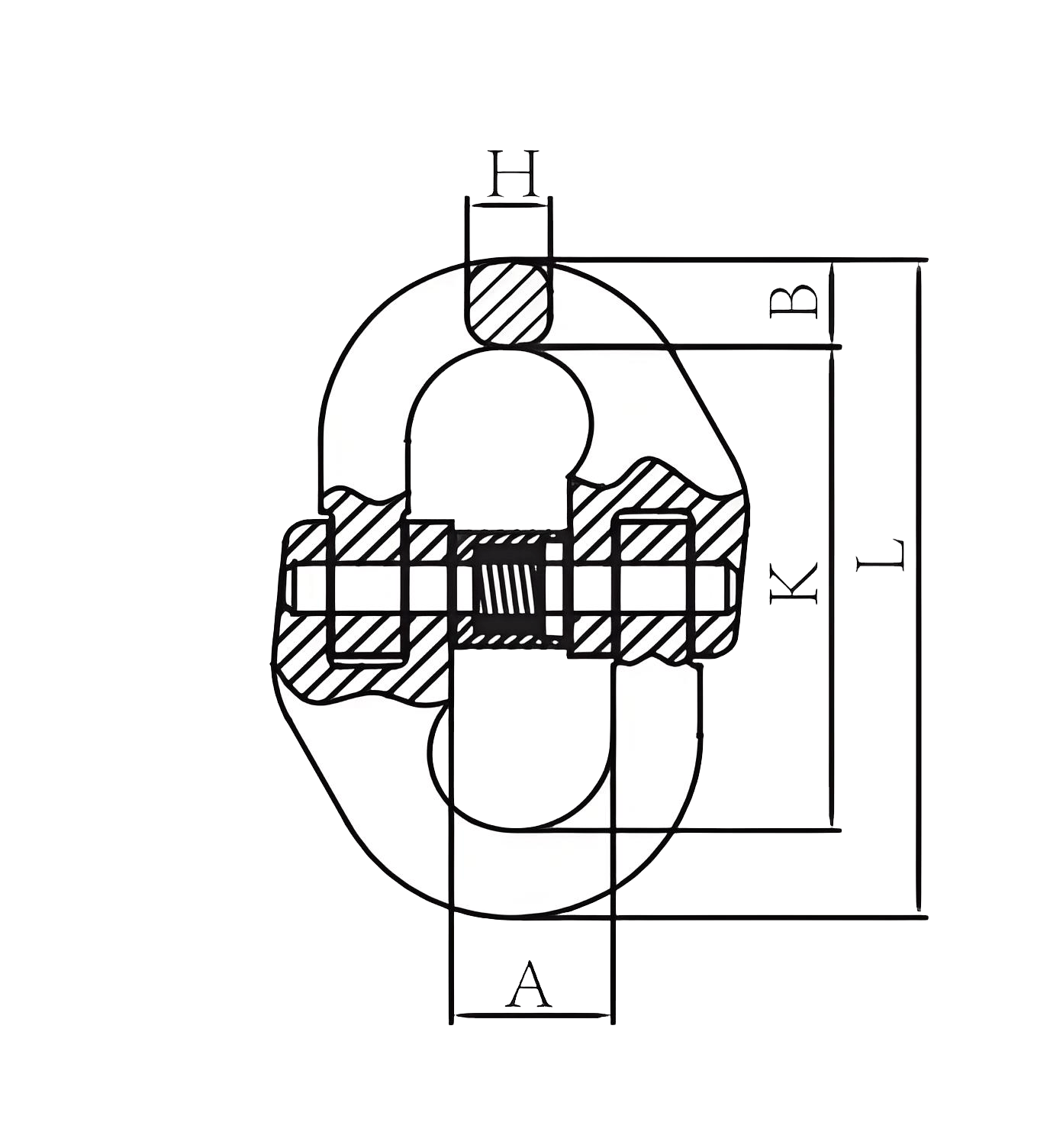

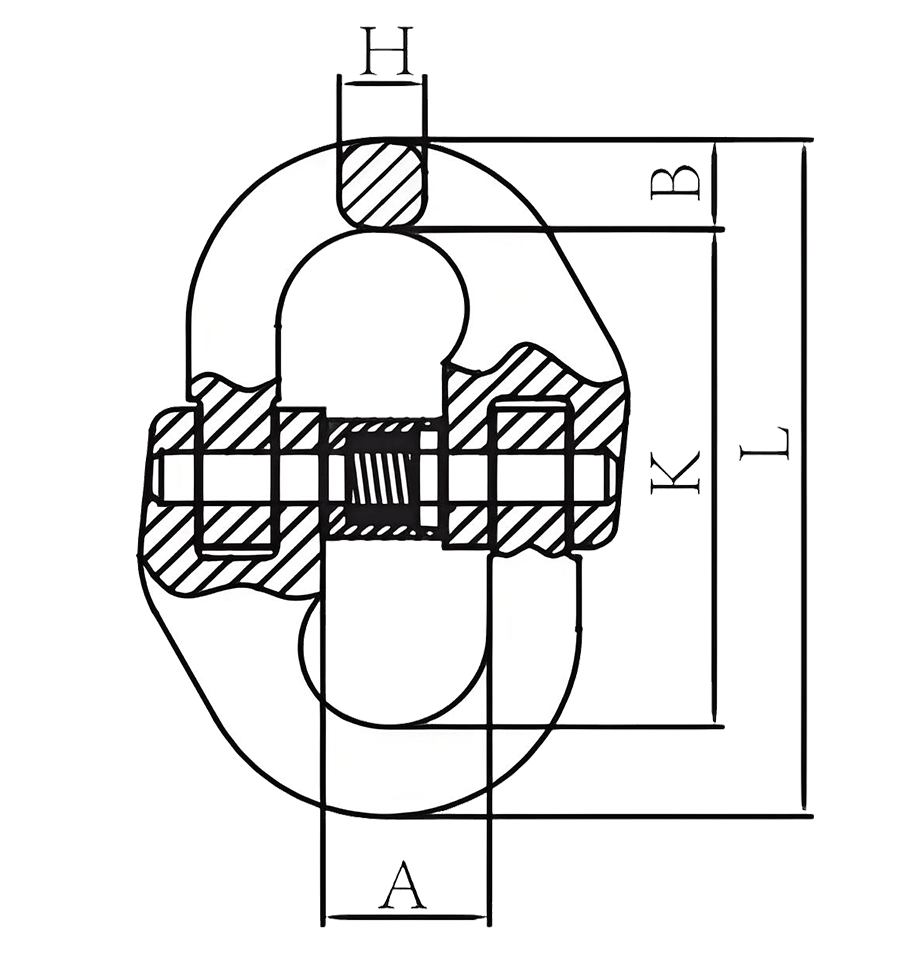

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1.5 | B±1 | L±2.5 | K±2 | H±1 |
| 6 | 0.08 | 1.12 | 4.48 | 15 | 7.5 | 58 | 42 | 7 |
| 7 | 0.145 | 1.5 | 6 | 20 | 8.5 | 73 | 54.8 | 8.5 |
| 7/8 | 0.146 | 2 | 8 | 20.5 | 9.5 | 79.5 | 60.5 | 8.5 |
| 8 | 0.16 | 2 | 8 | 20.5 | 9.5 | 79.5 | 60.5 | 8.5 |
| 10 | 0.30 | 3.15 | 12.6 | 26 | 12 | 90.5 | 68 | 11.5 |
| 13 | 0.65 | 5.3 | 21.2 | 30 | 15 | 117 | 87 | 15 |
| 16 | 1.15 | 8 | 32 | 35 | 19.8 | 148 | 108.4 | 19.8 |
| 18 | 1.84 | 10 | 40 | 38 | 21 | 154 | 112 | 21 |
| 20 | 2.1 | 12.5 | 50 | 41 | 24 | 169.5 | 121.5 | 24 |
| 22 | 2.87 | 15 | 60 | 49.5 | 26 | 193.5 | 141.5 | 26 |
| 26 | 4.5 | 21.2 | 84.8 | 57.5 | 31 | 220 | 158 | 30 |
| 32 | 8.21 | 31.5 | 126 | 67.5 | 38 | 281 | 205 | 37 |
Ultimate Load is 4 times the Working Load Limit
