G80 Special Swivel Self-Lock Hook

Product attributes :

◆ Forged super alloy steel - Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

◆ Be rotated under Non-load conditions

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

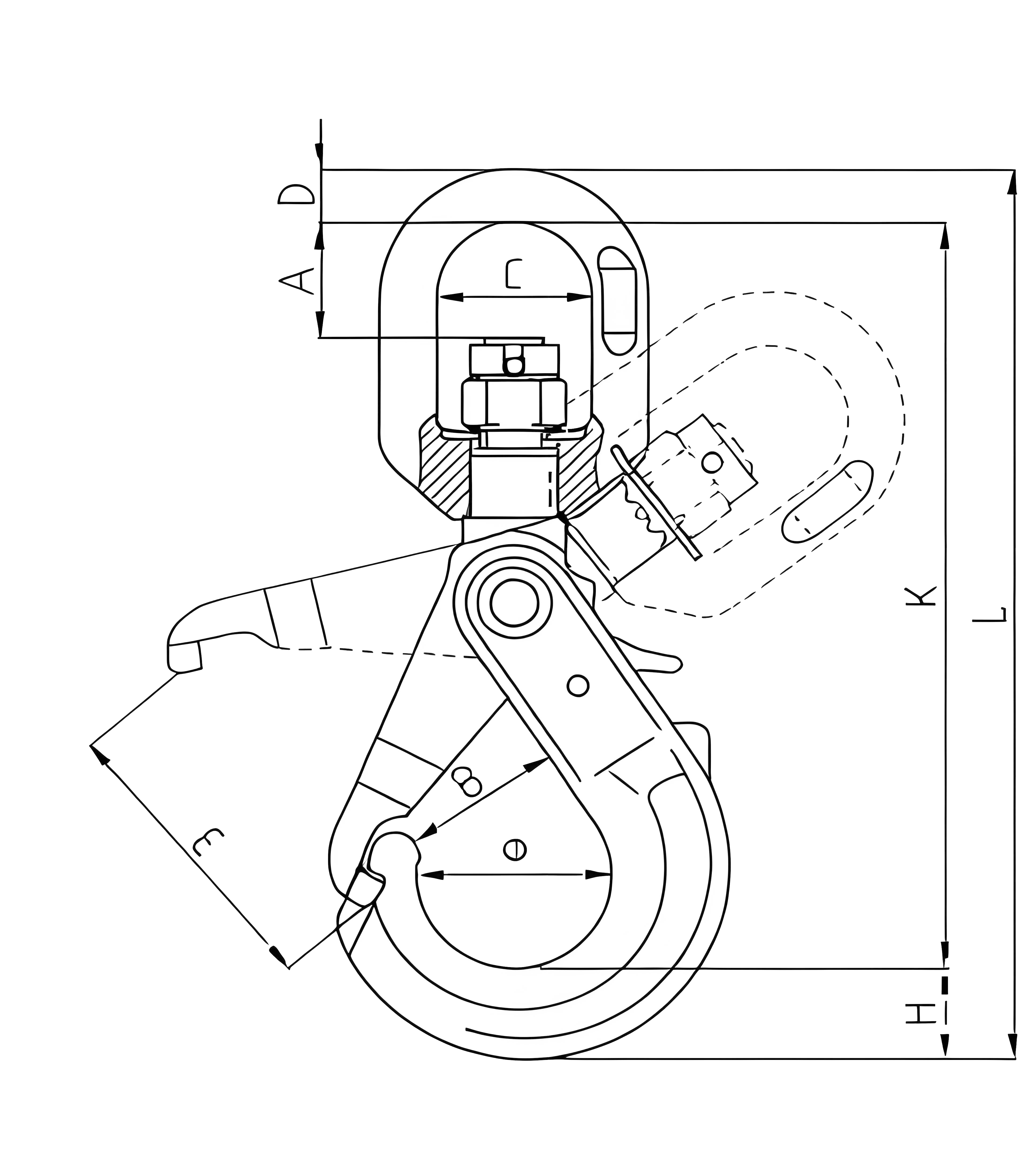

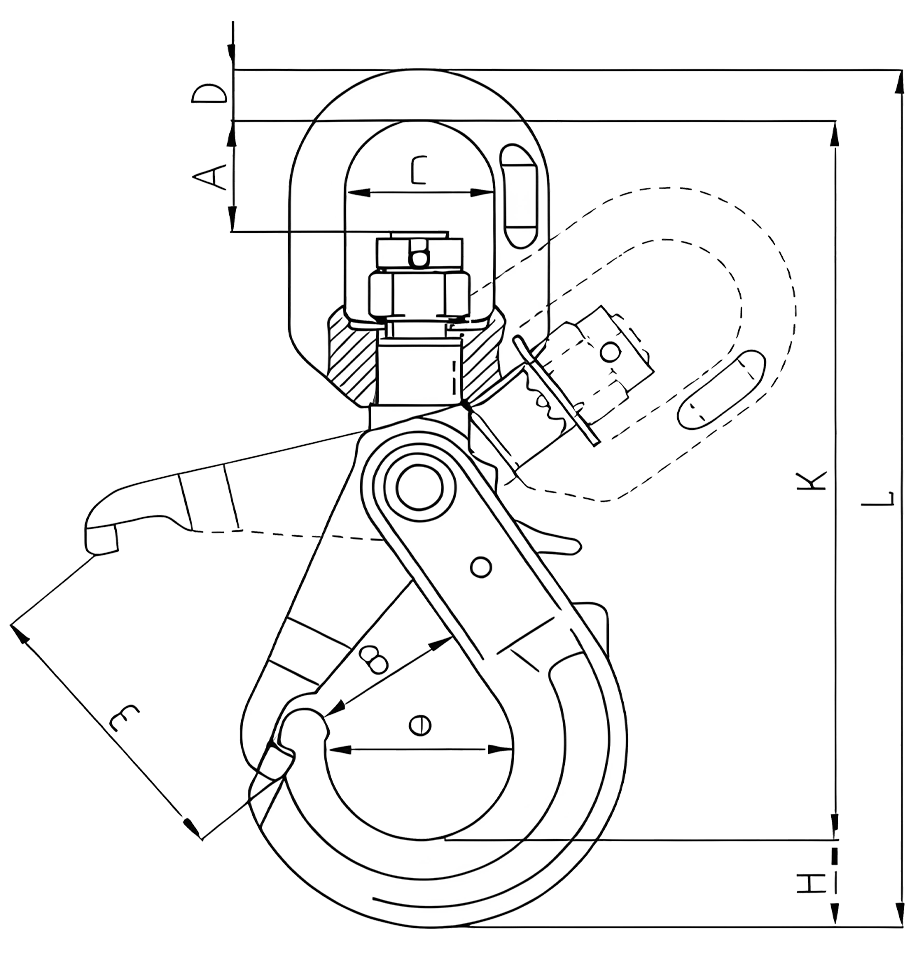

A±2B±2C±1D±0.5E±2H±1K±3L±3φ±2
60.75 1.12 4.48 24 32.8 32.5 11.5 25 19 159 189.5 36
 7/81.02  8 27.5 35 36 13 34 22 181 216 40
101.75 3.15 12.6 34 43 42 15.5 42 26 213 254 50
132.72 5.3 21.2 41 50 50 17 50 31 252 300 60
165.38  32 58 61 70 21.5 69 38 325 375 72

Ultimate Load is 4 times the Working Load Limit
