G80 Special Eye Self-Lock Hook

G80 SPECIAL EYE SELF-LOCKING HOOK
G80 SPECIAL EYE SELF-LOCKING HOOK

#1 MARINE HARDWARE

G80 Special Eye Self-Lock Hook

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight
   (kg)
WLL
(T)
B.L
(T)

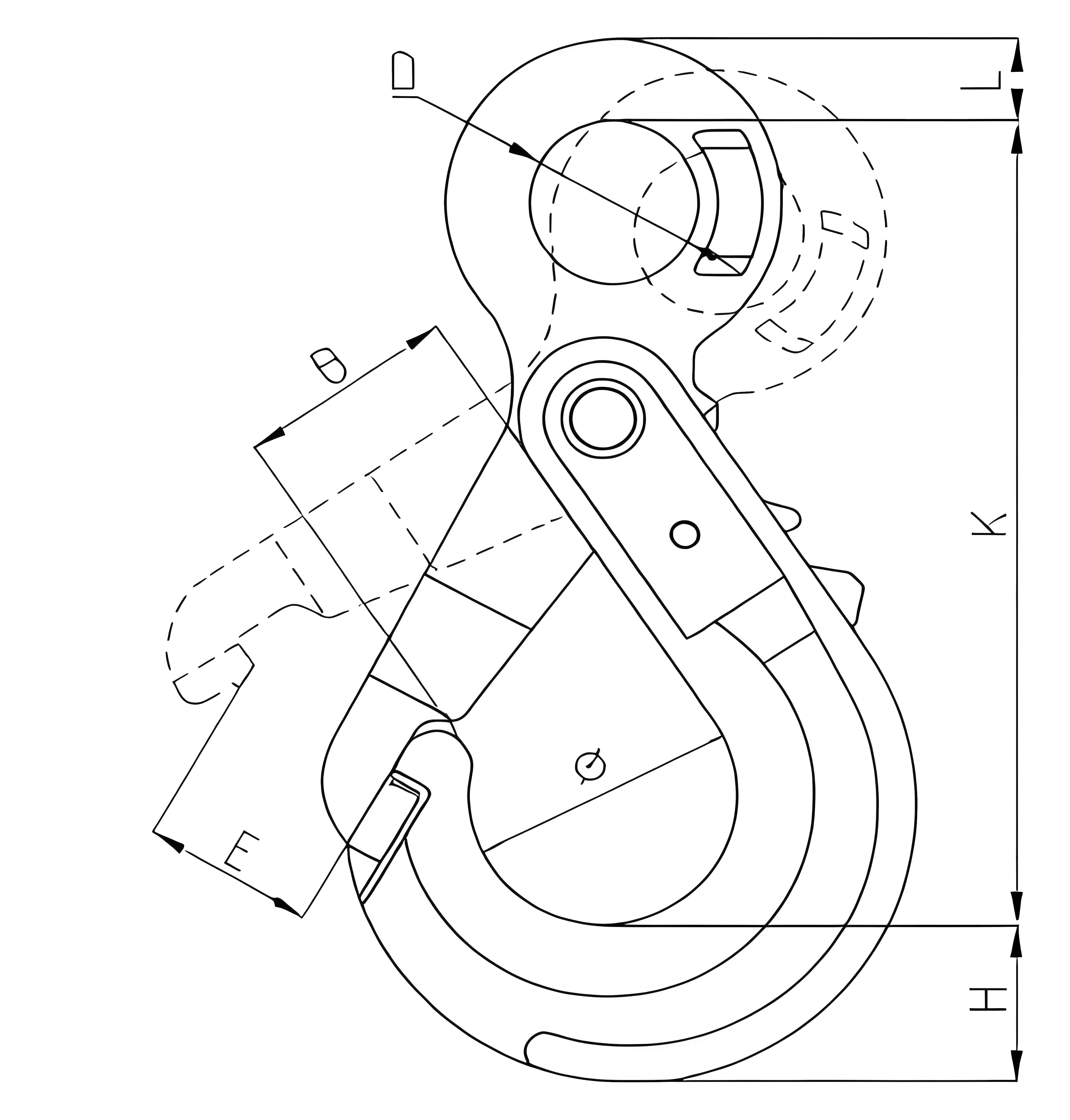

B±1.5D±1.5E±2K±2H±1L±1C±2
7/80.68   2 35 25 34 131 22 11 40
101.3 3.15 12.6 43 32 42 161 26 14.5 50
132.06 5.3 21.2 50 40 50 195.4 31 17 60
163.73   8 32 61 50 70 238 38 23 72

Ultimate Load is 4 times the Working Load Limit
