G80 Special Clevis Self-Lock Hook
G80 Special Clevis Self-Lock Hook
Size: 7/8mm-16mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note: Positive lock latch is Self-Locking when hook is loade
Product Details

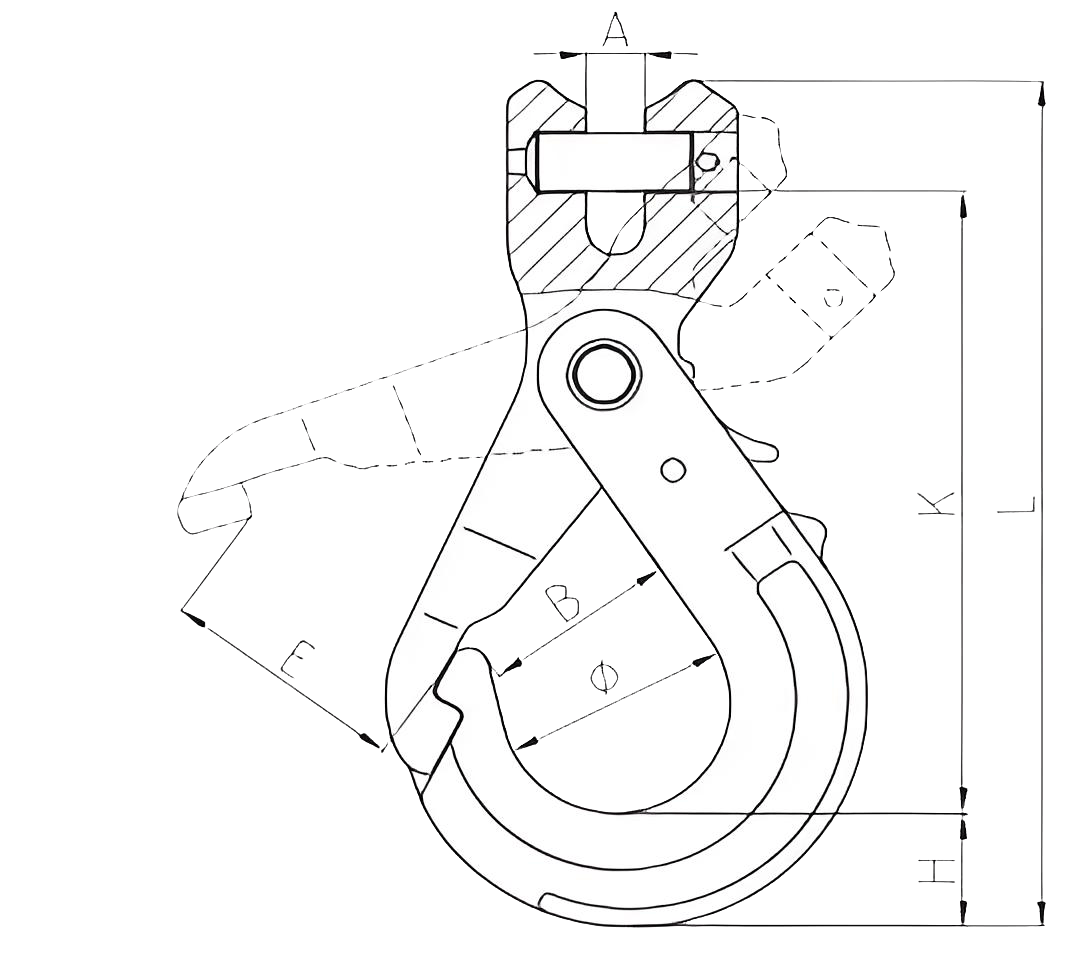

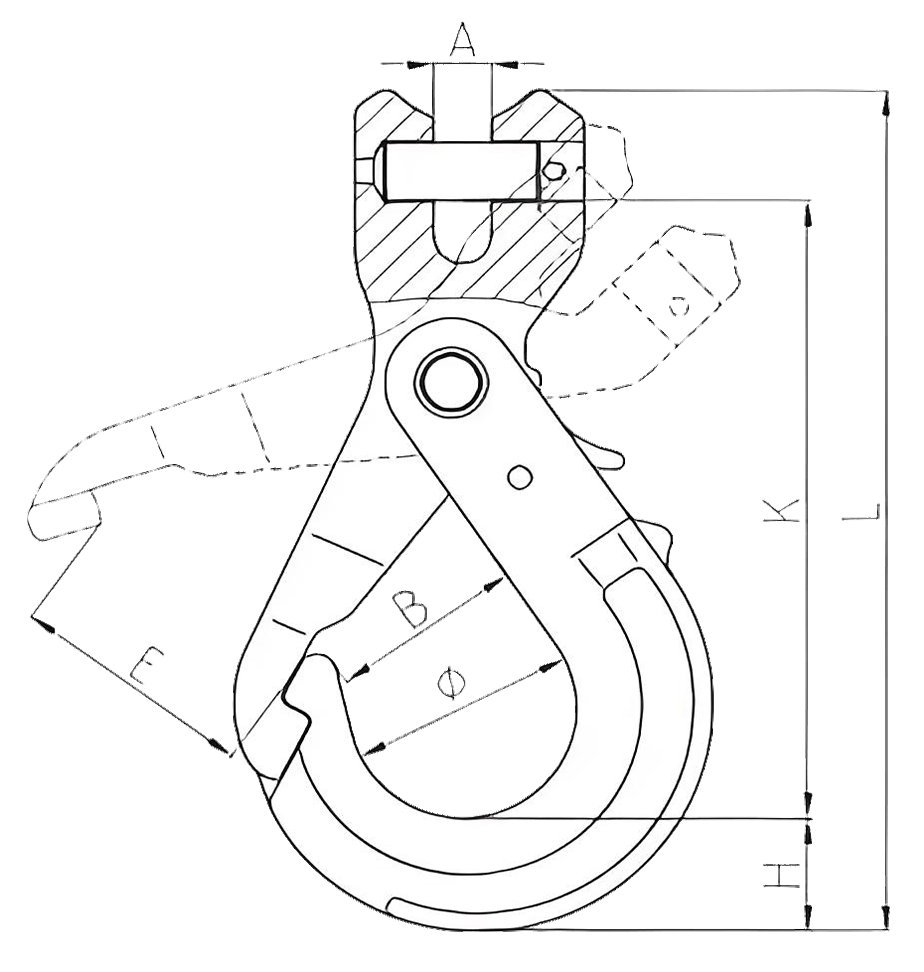

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1.5 | B±1.5 | E±2 | K±2 | H±1 | L±1 | Φ±2 |
| 7/8 | 0.68 | 2 | 8 | 9.5 | 35 | 34 | 131 | 22 | 150 | 40 |
| 10 | 1.25 | 3.15 | 12.6 | 12.5 | 43 | 42 | 161 | 26 | 189 | 50 |
| 13 | 2.15 | 5.3 | 21.2 | 15 | 50 | 50 | 195.4 | 31 | 229 | 60 |
| 16 | 3.8 | 8 | 32 | 18.5 | 61 | 70 | 238 | 38 | 299 | 72 |
Ultimate Load is 4 times the Working Load Limit
