G80 Clevis Self-Lock Hook IMPROVED
◆ Forged super alloy steel - Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

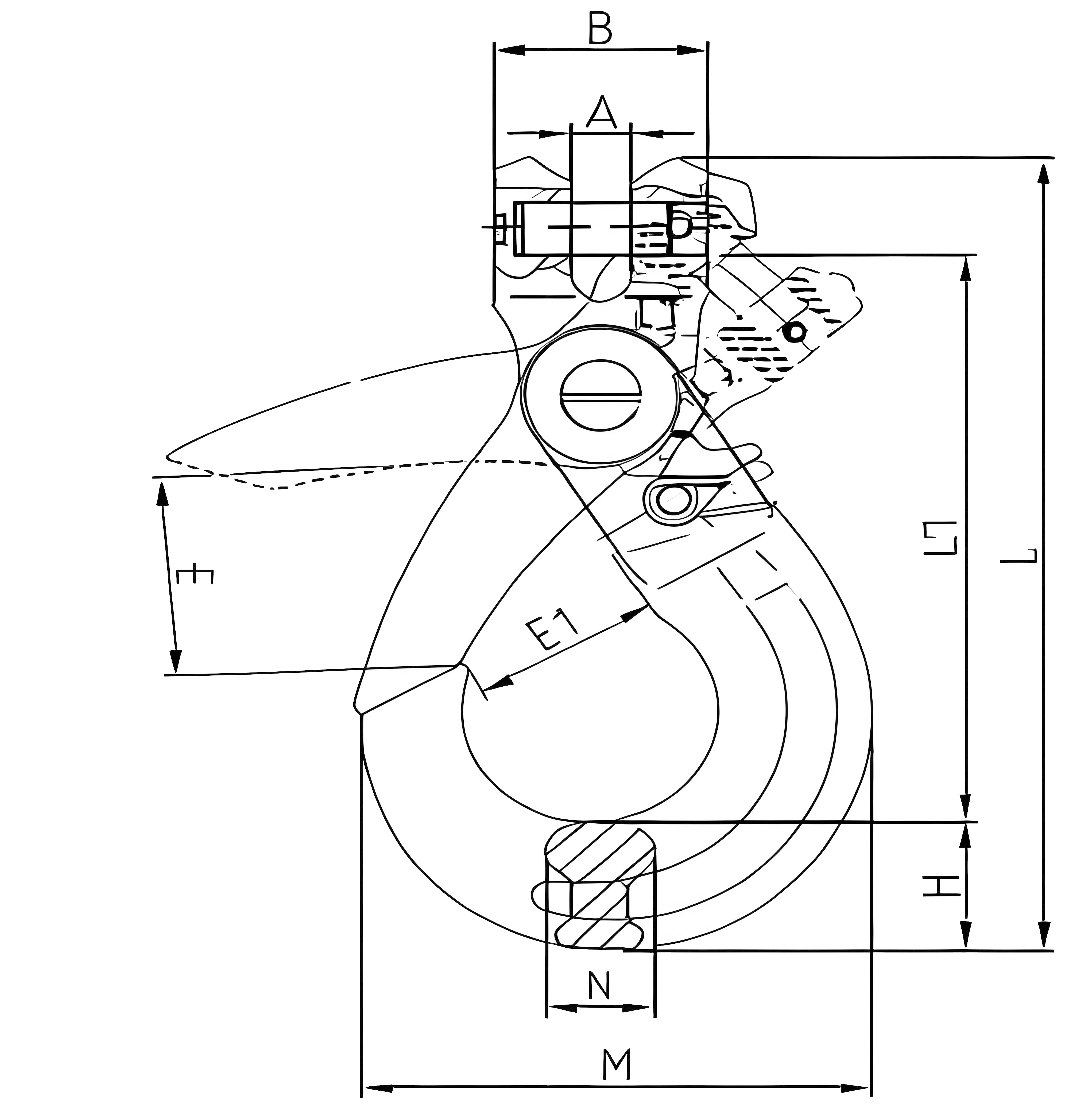

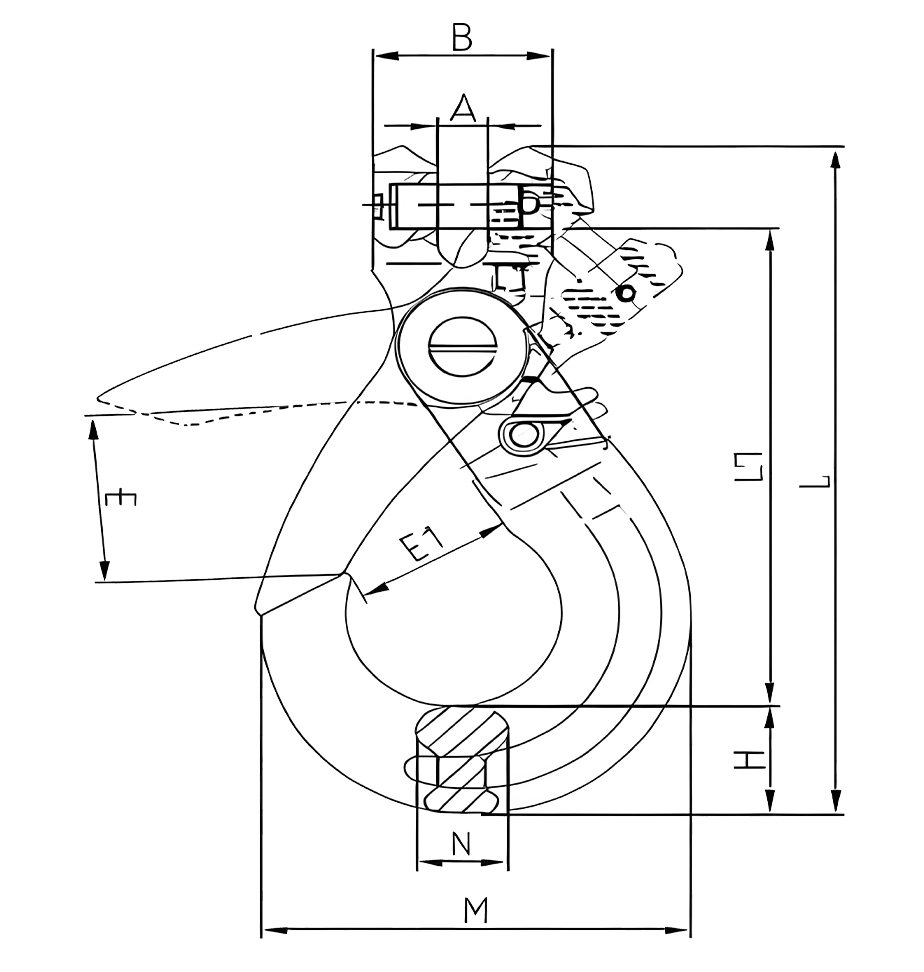

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | E | E1 | L1 | L | H | N | M |
| 6-8 | 0.44 | 1.12 | 4.48 | 8±0.5 | 32±1 | 32±2 | 28±1 | 99±3 | 134±3 | 20±1 | 15±0.5 | 73±2 |
| 7/8-8 | 0.8 | 2 | 8 | 9.5±0.5 | 38.5±1 | 40±3 | 35±1 | 119±3 | 162±3 | 26±1 | 20±0.5 | 91±2 |
| 10-8 | 1.38 | 3.15 | 12.6 | 12.5±0. | 46±1 | 48±3 | 45±2 | 142±3 | 195±3 | 30±1.5 | 26±1 | 108±2 |
| 13-8 | 2.81 | 5.3 | 21.2 | 15±0.5 | 59±1 | 57±3 | 52.5±2 | 179±4 | 248±4 | 40±1.5 | 33±1 | 142±3 |
| 16-8 | 6 | 8 | 32 | 18.5±0. | 77±1.5 | 65±4 | 63±2 | 225±4 | 310±4 | 50.5±2 | 38±2 | 168.6±3 |
| 18/20-8 | 7.25 | 12.5 | 50 | 24±1 | 81±1.5 | 82±4 | 82±2 | 238±5 | 335±5 | 55±2 | 50±2 | 185±4 |
| 22-8 | 12.8 | 15 | 60 | 25±1 | 97.5±2 | 80±5 | 76±3 | 277±5 | 392±5 | 67±2 | 52±2 | 202±4 |
| 26-8 | 21.8 | 21.2 | 84.8 | 30±1.5 | 118±2 | 109±5 | 96±4 | 312±6 | 449±6 | 75±3 | 60±3 | 239±5 |
| 32-8 | 49.6 | 31.5 | 126 | 35±1.5 | 150±2 | 131±6 | 131±4 | 416±6 | 590±6 | 97±3 | 79.5±3 | 329±5 |
Ultimate Load is 4 times the Working Load Limit
