#1 MARINE HARDWARE
G80 Swivle Hook With Latch
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

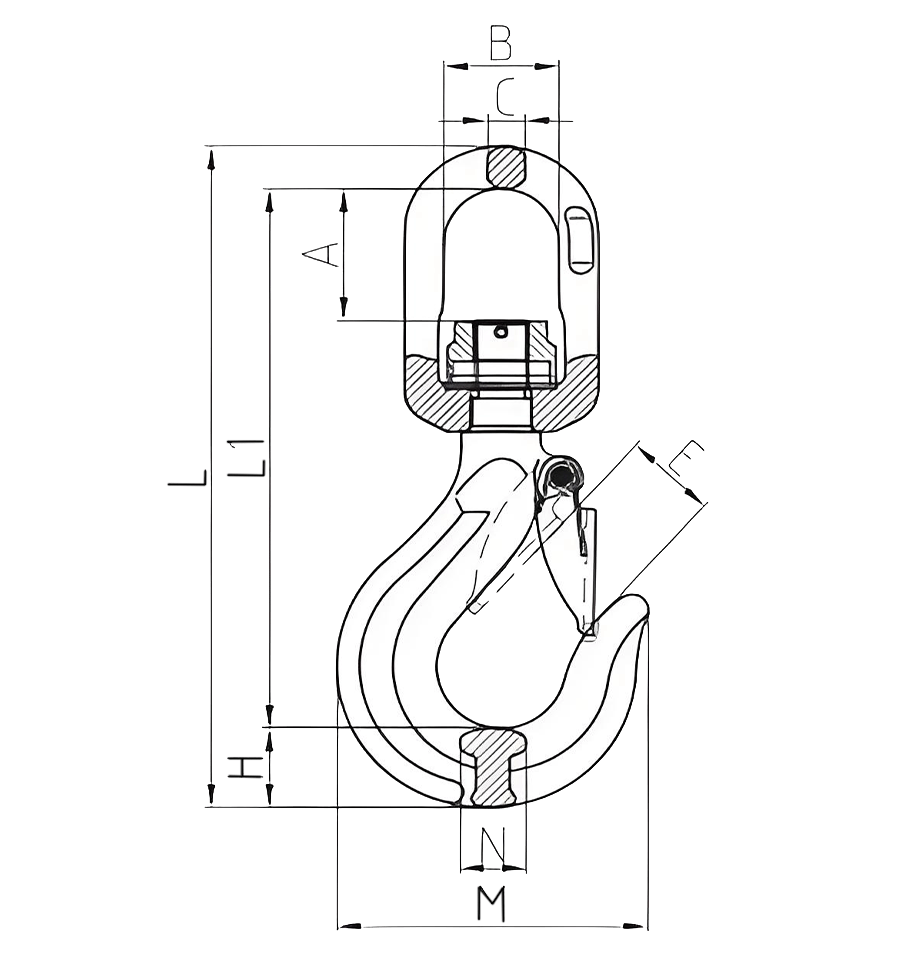

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | E | M | L1 | L | N | C | H |
| 6-8 | 0.65 | 1.12 | 4.48 | 32.5±1.5 | 32.5±1 | 24±1.5 | 69±2 | 138±2 | 168±2 | 16±1 | 11±1 | 19±0.5 |
| 718-8 | 0.95 | 2 | 8 | 45±2 | 36±1 | 28.5±1.5 | 88±2 | 170±2 | 208±2 | 20±1 | 13±1 | 23±0.8 |
| 10-8 | 1.71 | 3.15 | 12.6 | 53±2 | 42±1 | 31±1.5 | 105±2 | 207±3 | 254±3 | 23±1 | 15.5±1 | 29.5±1 |
| 13-8 | 3.13 | 5.3 | 21.2 | 63.8±2 | 50±1.5 | 40±2 | 135±2 | 248±3 | 305±3 | 32±1.5 | 17±1.5 | 38±1 |
| 16-8 | 5.44 | 8 | 32 | 68±3 | 61±1.5 | 45±2 | 161±2 | 295±3 | 367±3 | 37.5±1.5 | 21.5±1.5 | 45±1 |
| 18/20-8 | 9.5 | 12.5 | 50 | 90.5±3 | 74±2 | 56±2 | 194±3 | 356±4 | 434±4 | 49±2 | 25±2 | 50±2 |
| 22-8 | 16 | 15 | 60 | 100.5±3 | 97±2 | 70±2.5 | 224±3 | 441±4 | 536±4 | 55±2 | 33±2 | 62±2 |
Ultimate Load is 4 times the Working Load Limit
