G80 Italy Type Eye Self-Lock Hook

ITALY TYPE EYE SELF-LOCKING HOOK
ITALY TYPE EYE SELF-LOCKING HOOK

#1 MARINE HARDWARE

G80 Italy Type Eye Self-Lock Hook

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ With latch

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight(Kg)WLL
(T)
B.L
(T)

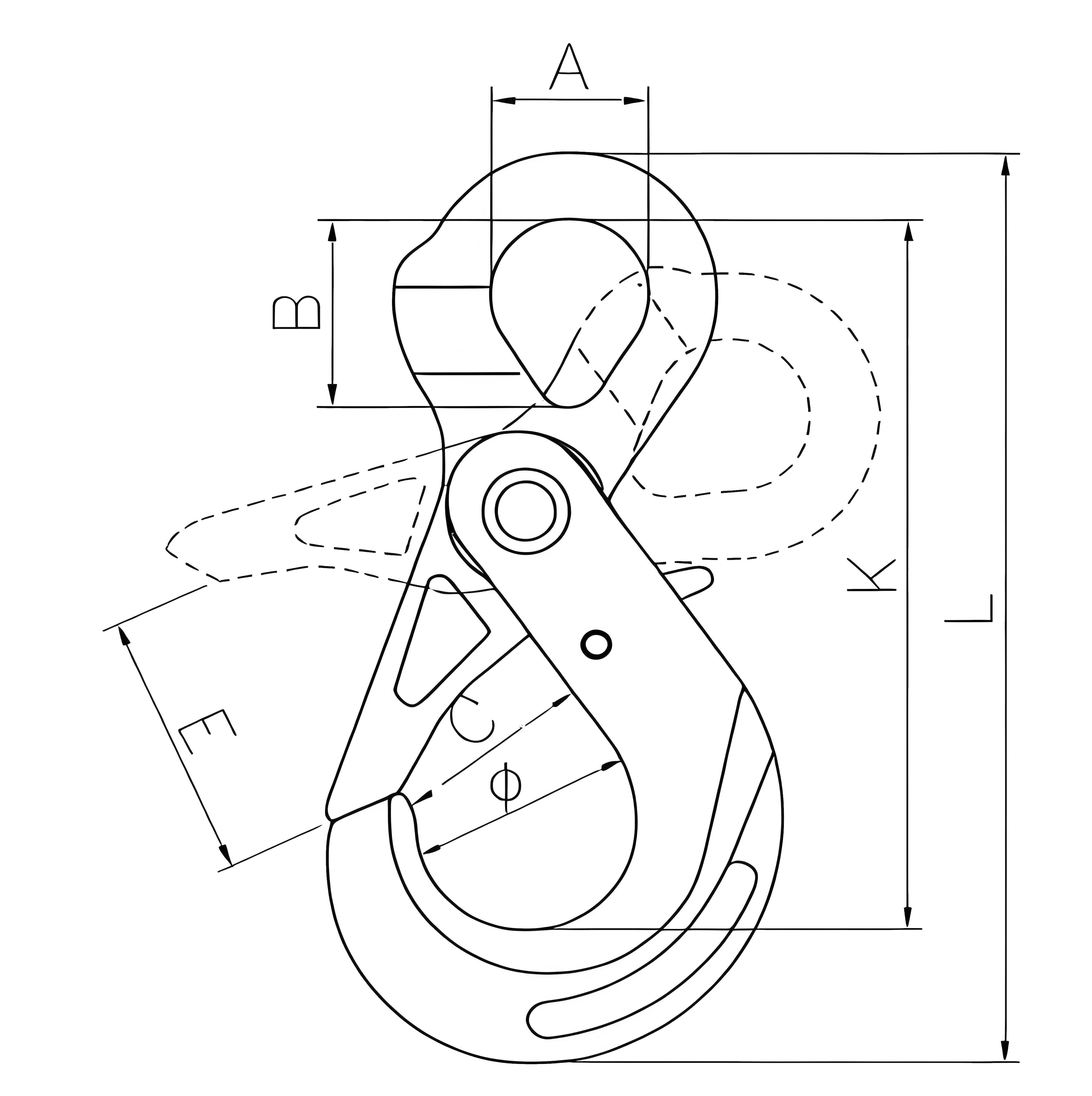

A±1.5B±1.5C±1.5E±1K±2L±3Φ±2
7/80.51   2 26  31 29 30 110 142 35.5
101.1 3.15 12.8 32  40 40 54 149 191 45
163.87   8 21.6 58  61 58 70 226 295 73

Ultimate Load is 4 times the Working Load Limit
