G80 U.S. Type Eye Self-Lock Hook

G80 U.S. TYPE EYE SELF-LOCKING HOOK
G80 U.S. TYPE EYE SELF-LOCKING HOOK

#1 MARINE HARDWARE

G80 U.S. Type Eye Self-Lock Hook

Product attributes :

G80 U.S. Type Eye Self-Lock Hook

Size: 6mm-16mm

Surface finish: Powder coating

Surface Colour: Red, Yellow

Material: Super Alloy steel

Manufacturing process: Forged - Quenched and Tempered

Quality control:

◆ Individually proof test at 2.5 times Working Load Limit

 Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

Note:

◆ Positive lock latch is Self-Locking when hook is loaded


Product Details



Chain SizeWeight
  (Kg)
WLL
(T)
B.L
(T)

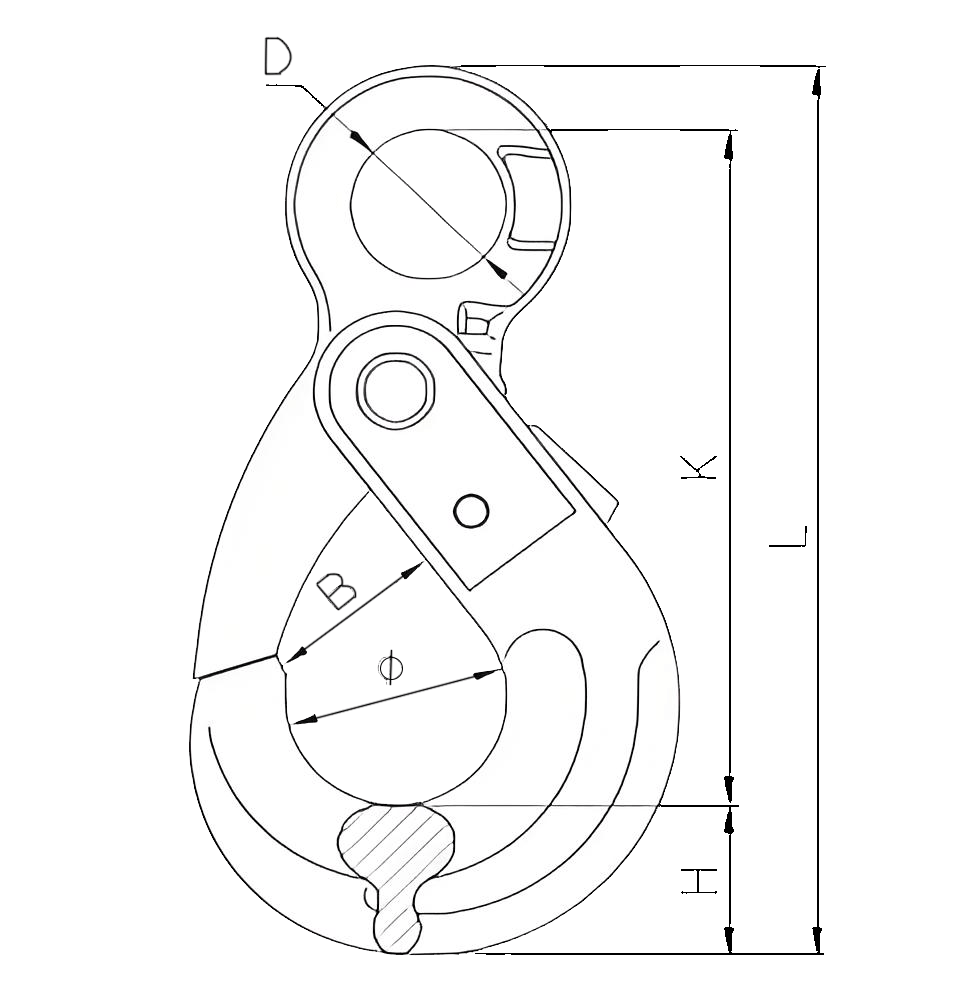

B±1.5D±1.5H±1K±2L±3φ±2
60.48 1.2 4.8 29 19.8 20 100 130 34
7/80.98 35 25 29 132 173 42
101.85 3.2 12.8 42 32.5 31 171 217 55
133.76 5.4 21.6 55 42 41 213 272 65
165.3 8.2 32.8 66 56 52 256 330 76

Ultimate Load is 4 times the Working Load Limit
