G80 European Type Eye Self-Lock Hook
G80 European Type Eye Self-Lock Hook
Size: 6mm-22mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

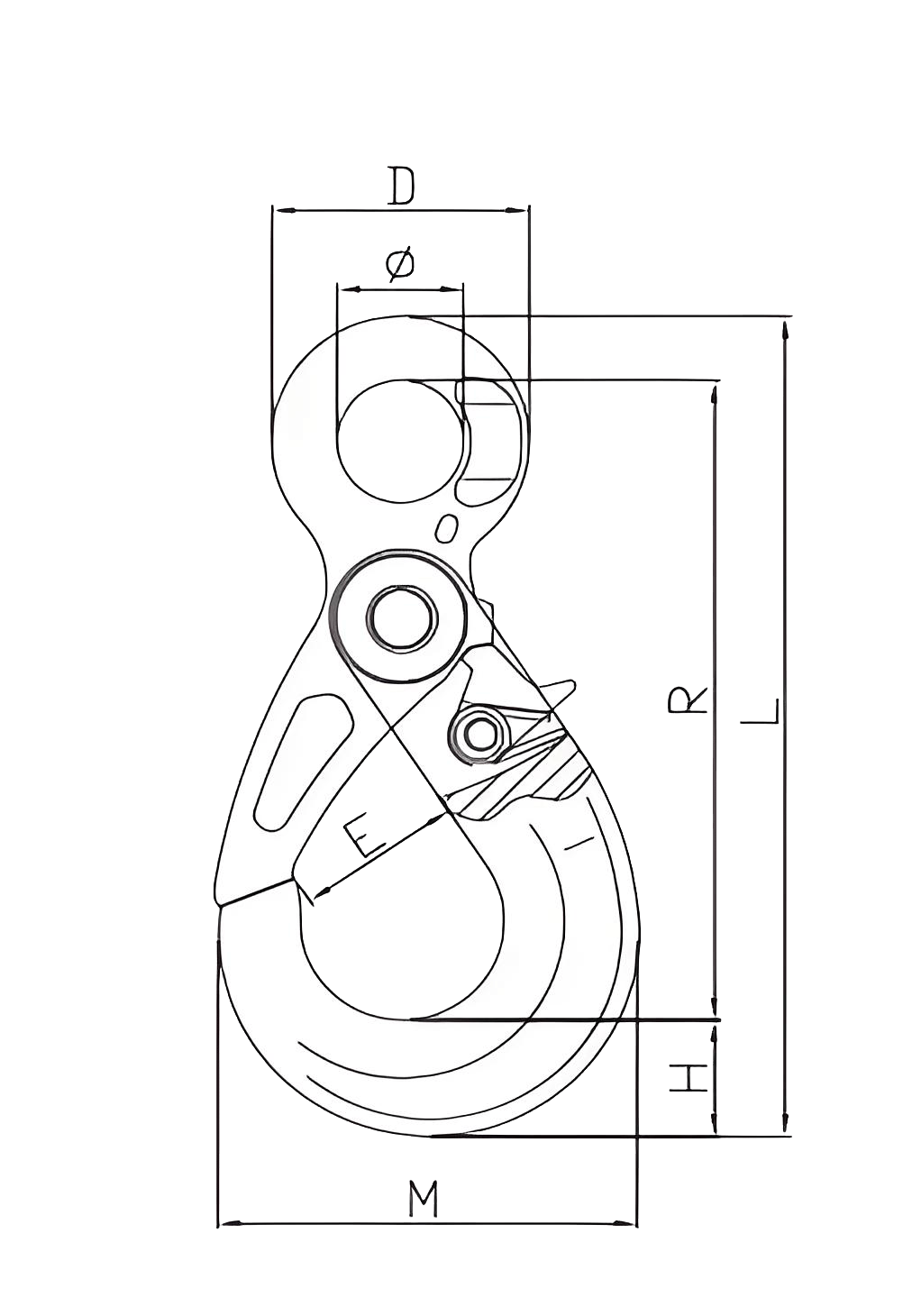

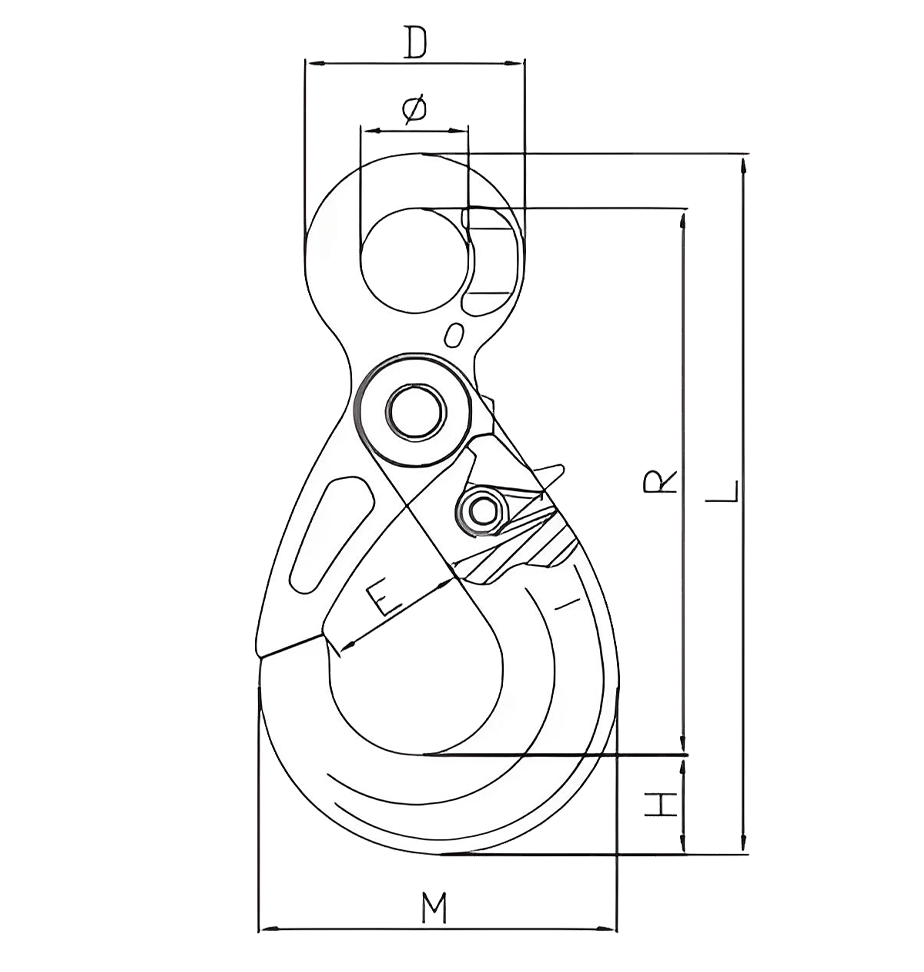

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ | D±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
| 06 | 0.5 | 1.12 | 4.48 | 21 | 43 | 29 | 20 | 110 | 70 | 143 |
| 08 | 0.9 | 2 | 8 | 27 | 51 | 35.5 | 26 | 137 | 90 | 175 |
| 10 | 1.5 | 3.15 | 12.6 | 34.5 | 64.5 | 45 | 30 | 169 | 108 | 212.5 |
| 13 | 2.7 | 5.3 | 21.2 | 40 | 80 | 53.5 | 40.5 | 209 | 138.5 | 270 |
| 16 | 5.7 | 8 | 32 | 50 | 104 | 62 | 50.5 | 254 | 170.5 | 331 |
| 20 | 7.9 | 12.5 | 50 | 60 | 120 | 76.5 | 62 | 277 | 192.5 | 369 |
| 22 | 11.2 | 15 | 60 | 70 | 134 | 80 | 66 | 319.5 | 205 | 417 |
Ultimate Load is 4 times the Working Load Limit
