G80 Self-Lock Hook With Side Trigger

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

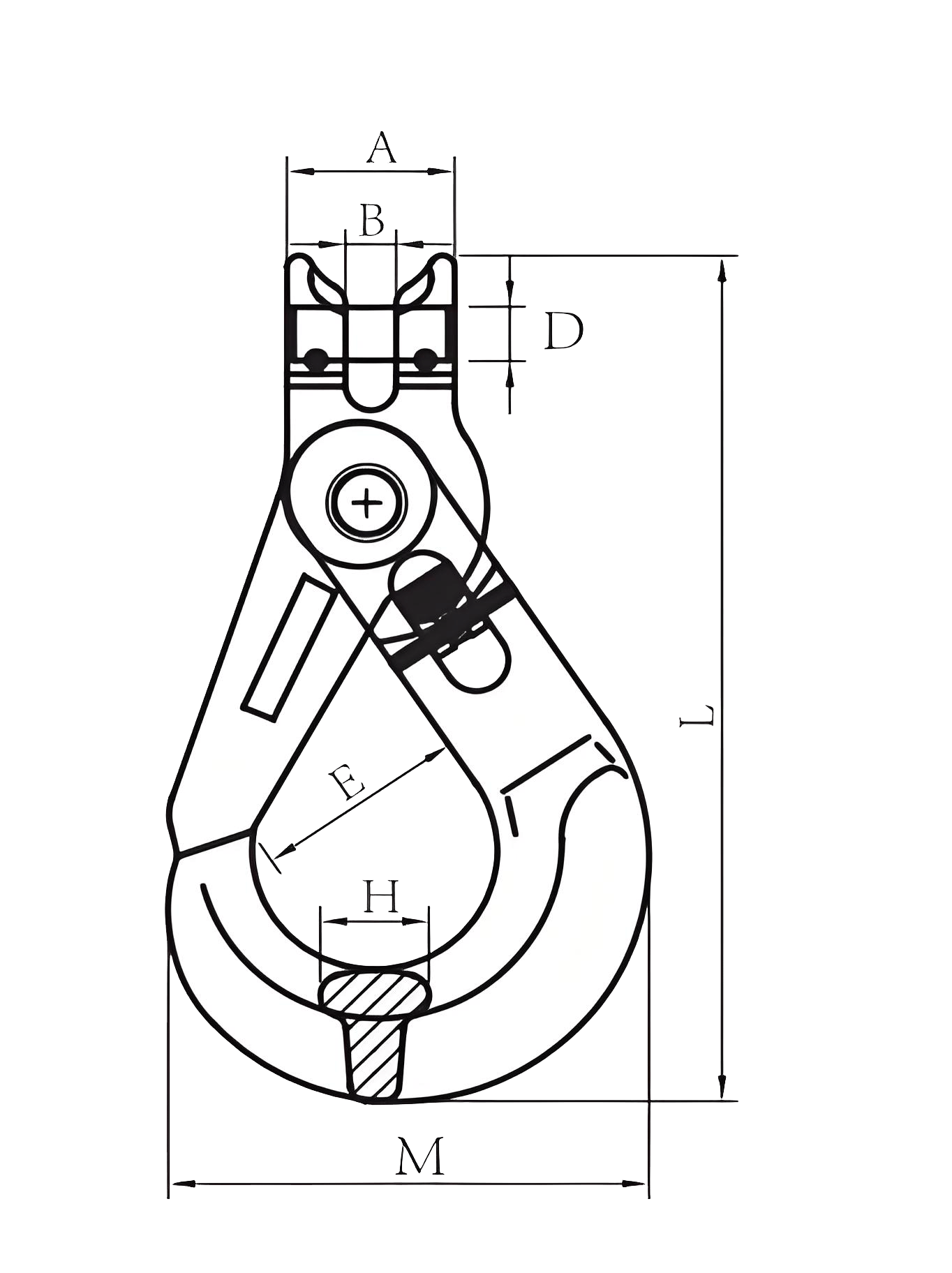

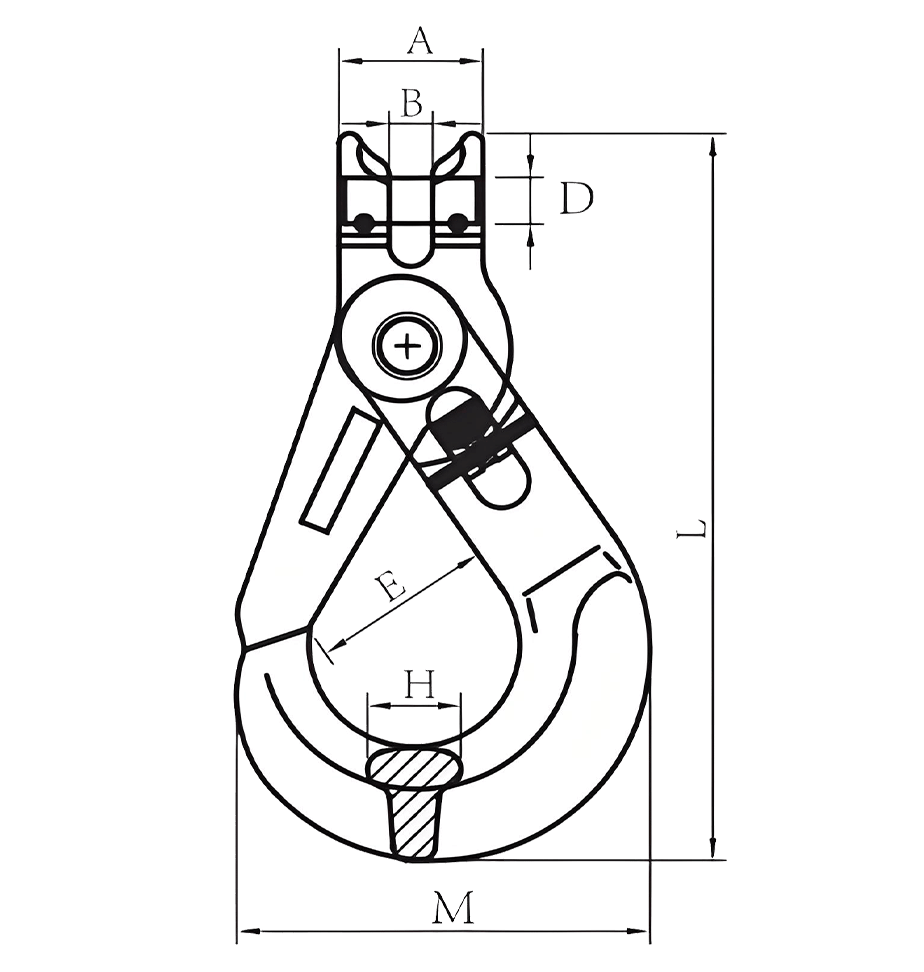

A±0.5B±0.5D±0.1E±0.5M±0.5H±0.3L±1.5
 7/8-80.792 31 10.5  38.5 90 20 164
  10-82.25 3.15 12.6 45 12 14.7  48.3 118 22 206
  13-84.57   5.3 21.2 59 15 18.5 60 153 33 260

Ultimate Load is 4 times the Working Load Limit
