G80 Italy Type Clevis Self-Lock Hook

Italy Type Clevis Self-Locking Hook
Italy Type Clevis Self-Locking Hook

#1 MARINE HARDWARE

G80 Italy Type Clevis Self-Lock Hook

Product attributes :

◆ Forged super alloy steel - Quenched and Tempered

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ With latch

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

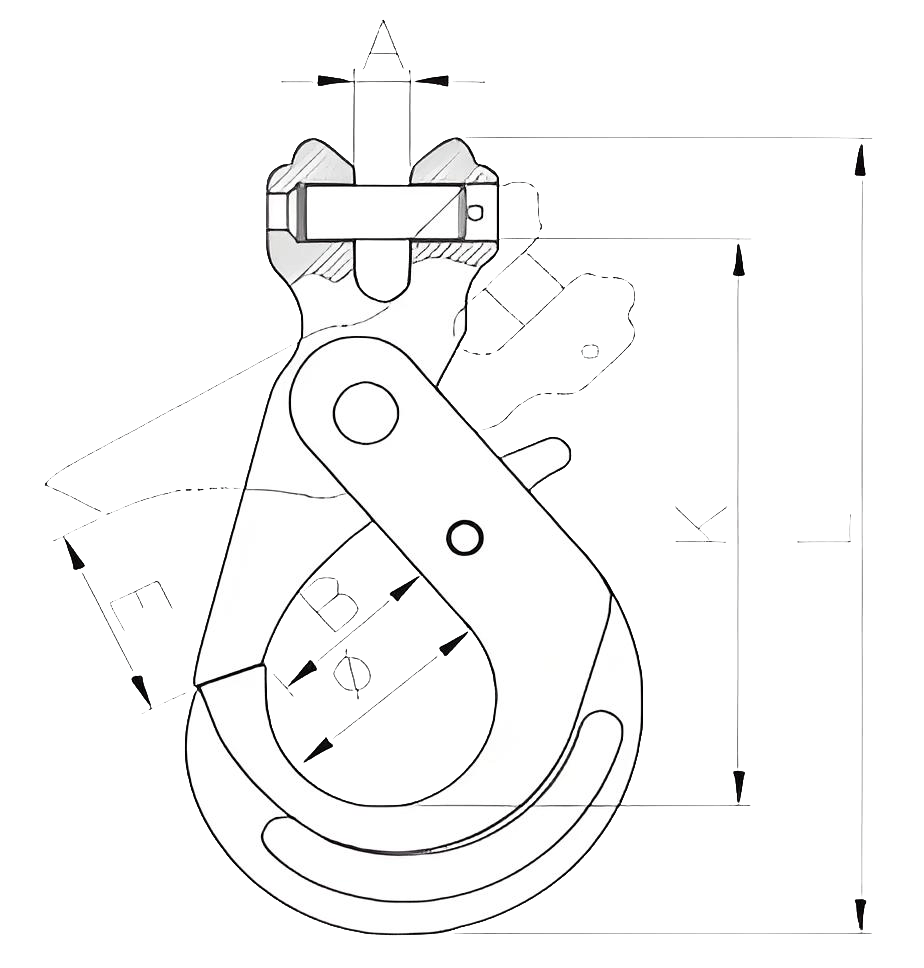

A±1.5B±1.5E±2K±2L±3Φ±2
   7/80.54   2   8  9.5 29 30 94 132 35.5
  101.14 3.15 12.8  12.5 40 54 125 174   45
  163.45   8 21.6  18.5 58 70 182 259   73

Ultimate Load is 4 times the Working Load Limit
