G80 European Type Clevis Self-Lock Hook
◆ Forged super alloy steel - Quenched and Tempered
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
Product Details

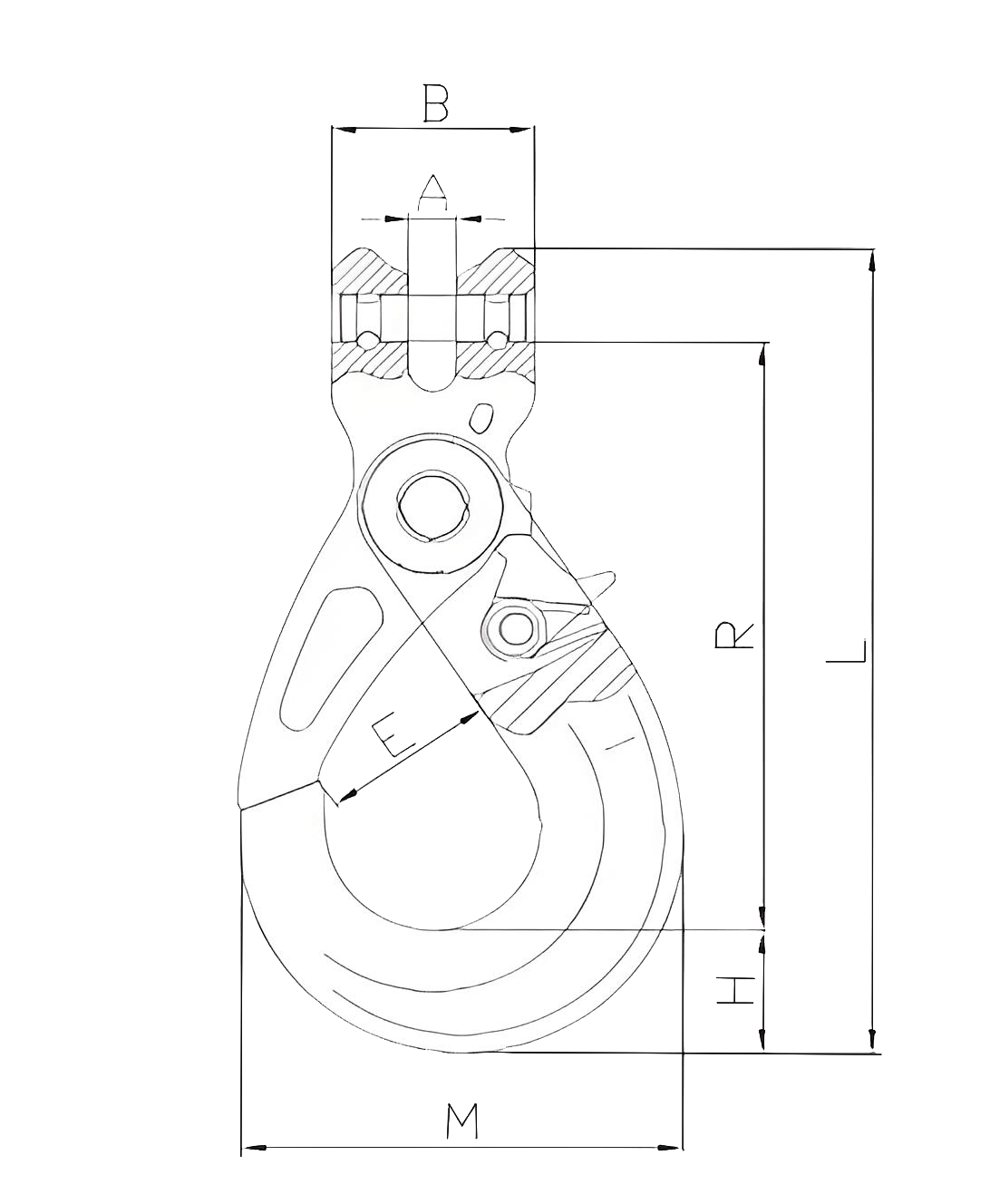

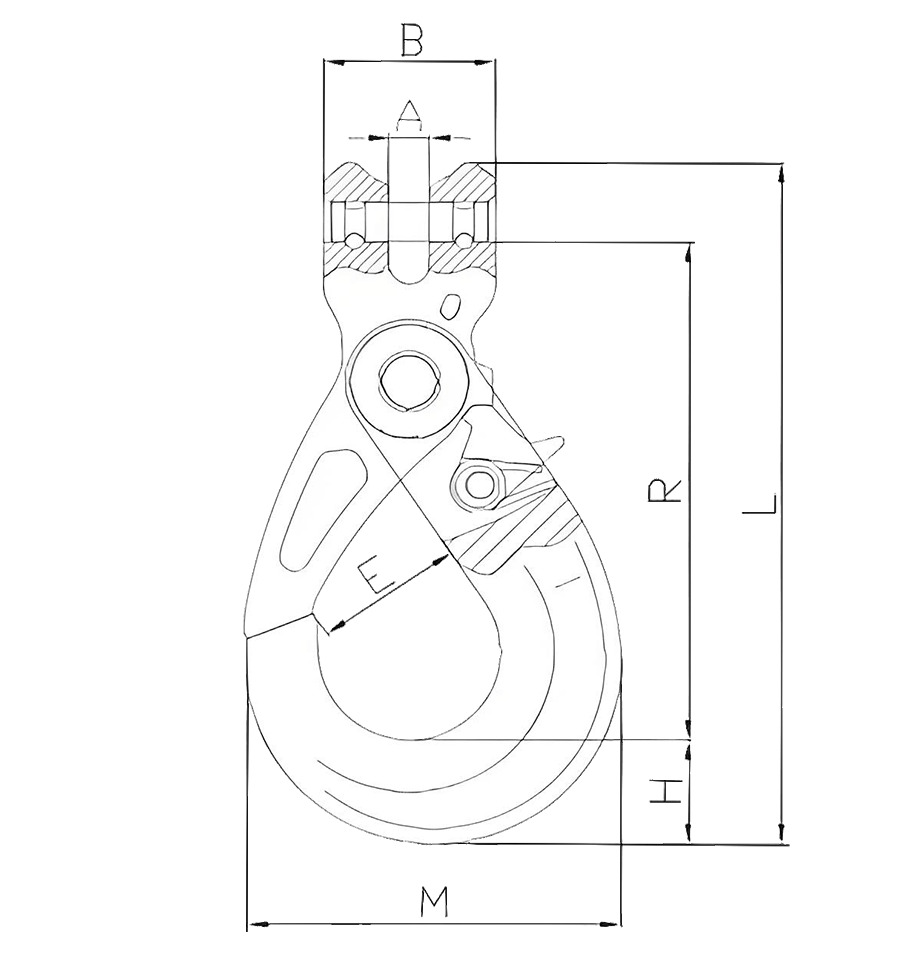

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±0.5 | B±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
| 6 | 0.5 | 1.12 | 4.48 | 7.5 | 32 | 28 | 20 | 96 | 70 | 131 |
| 8 | 0.9 | 2 | 8 | 9.5 | 36 | 35.5 | 26 | 123 | 90 | 166 |
| 10 | 1.6 | 3.15 | 12.6 | 12 | 46 | 45 | 30 | 144 | 109 | 196.5 |
| 13 | 2.9 | 5.3 | 21.2 | 15 | 59 | 53.5 | 40.5 | 182 | 138.5 | 251 |
| 16 | 5.9 | 8 | 32 | 17.5 | 70 | 62 | 50.5 | 217 | 170.5 | 303 |
| 20 | 8.6 | 12.5 | 50 | 25 | 85 | 76.5 | 62 | 235 | 192.5 | 337.5 |
| 22 | 12.1 | 15 | 60 | 25.5 | 98 | 80 | 66 | 276.5 | 205 | 391 |
Ultimate Load is 4 times the Working Load Limit
