G80 Angle Rotated Safety Hook

G80 Angle Rotated Safety Hook
G80 Angle Rotated Safety Hook

#1 MARINE HARDWARE

G80 Angle Rotated Safety Hook

Product attributes :

◆ Forged super alloy steel - Quenched and Tempered

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ With bearing

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

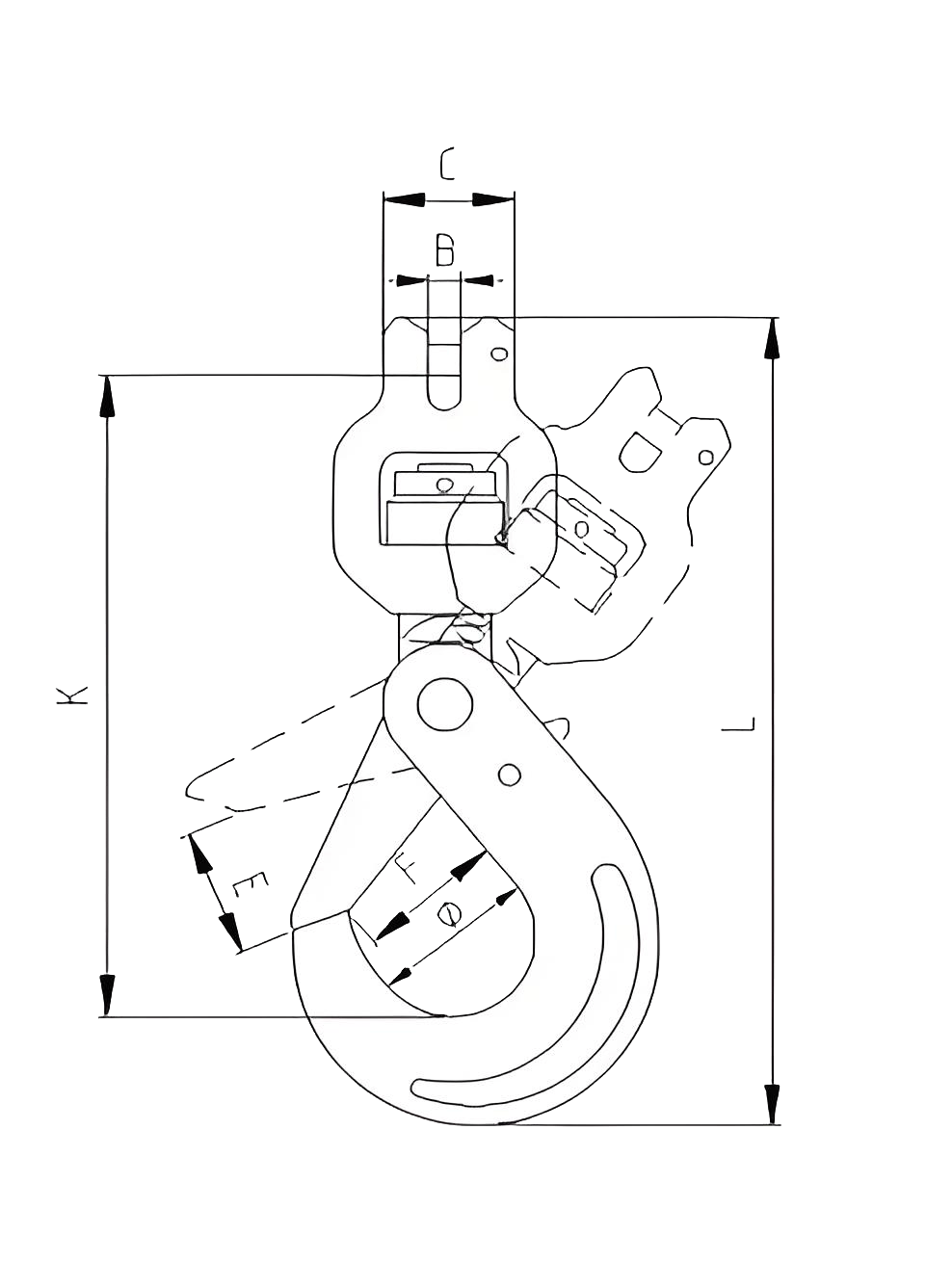

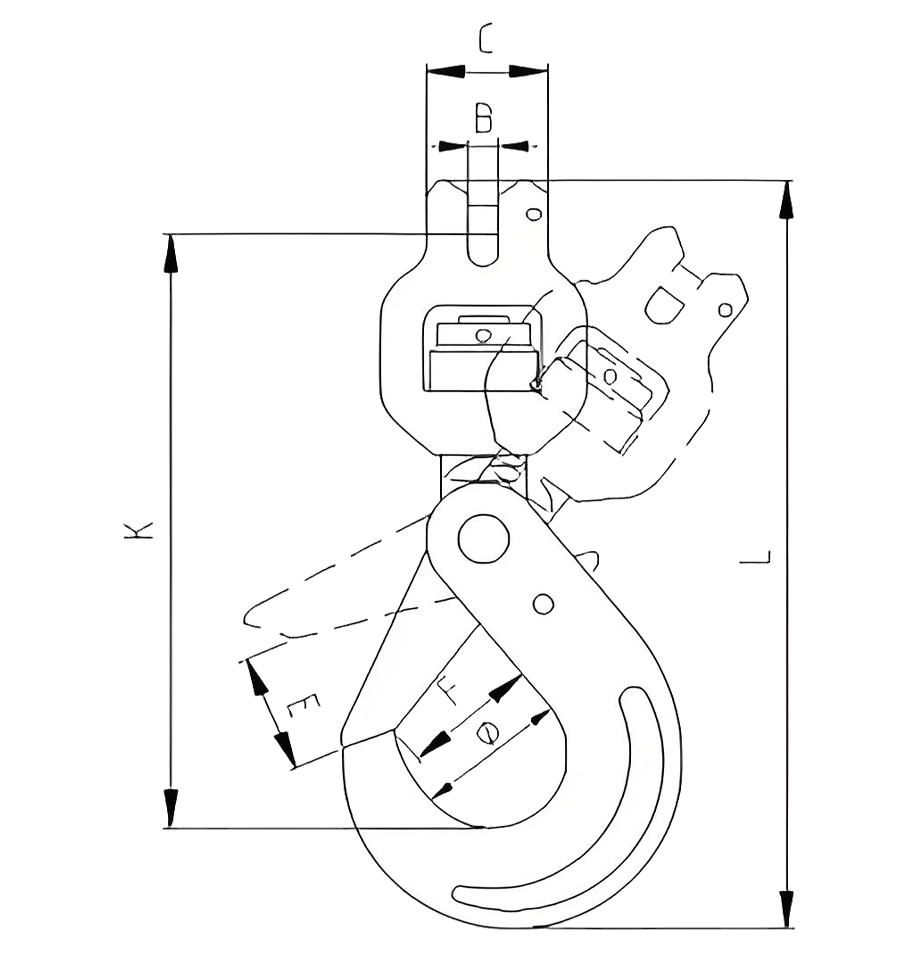

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)
ΦBCLKEF
060.78  1.12 4.48 34±18±132±2181.5±6146±532±228±2
7/81.3 44±19.5±136.5±2230±7189±645±235±2

Ultimate Load is 4 times the Working Load Limit
