G80 Swivel Self-Lock Hook With Bearing
◆ Forged super alloy steel - Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
◆With bearing
Product Details

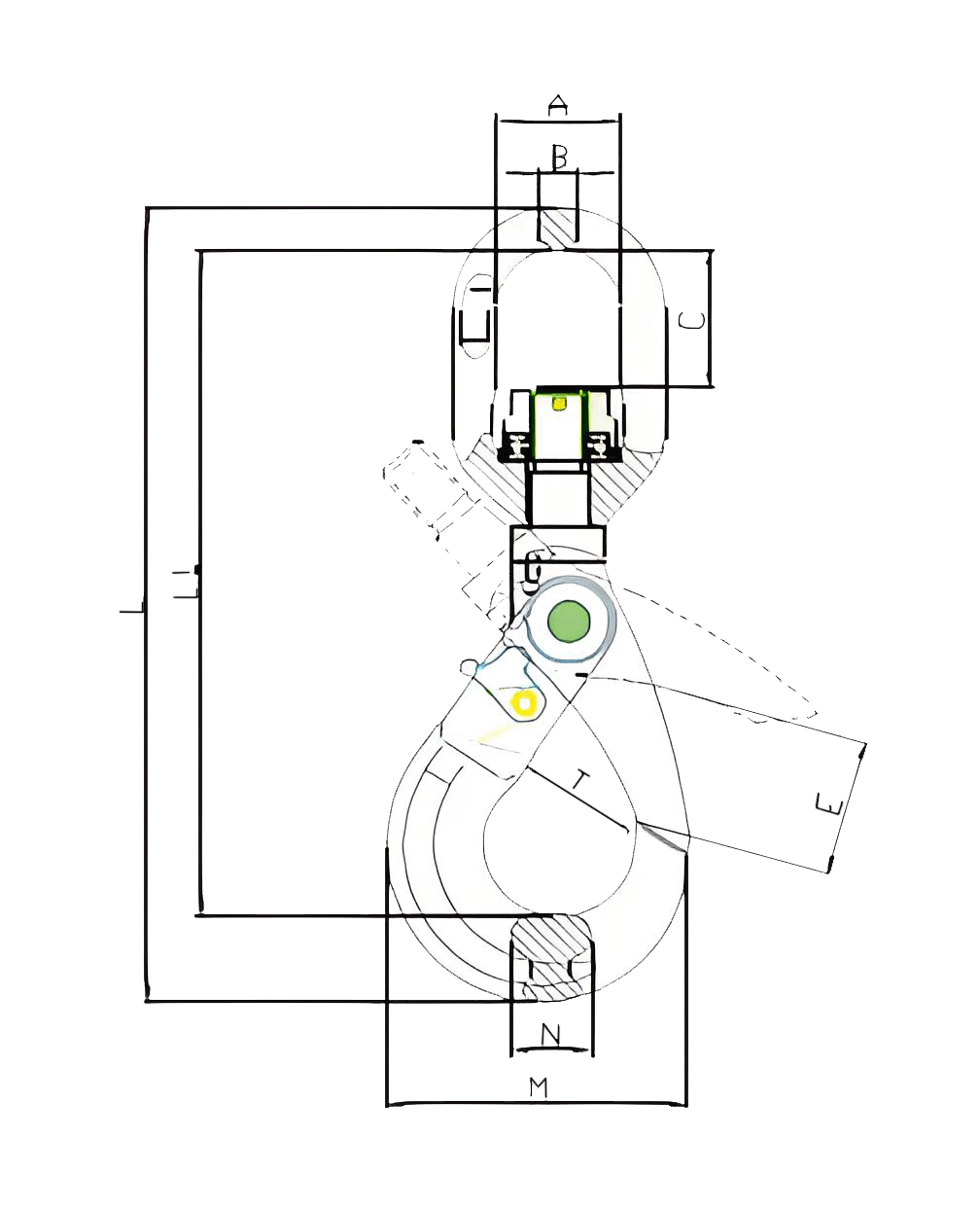

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | C | L1 | L | T | E | M2 | N | Φ±1.5 |
| 6 | 0.71 | 1.12 | 4.48 | 32.5±1 | 11.5±0.5 | 33.8±2 | 160±3 | 194±3 | 28±1 | 32±2 | 73±2 | 15±0.5 | 34 |
| 7/8 | 1.1 | 2 | 8 | 36±1 | 13±0.5 | 40±2 | 202±3 | 240±3 | 35±1 | 40±3 | 91±2 | 20±0.5 | 44 |
| 10 | 2.1 | 3.15 | 12.6 | 42±1 | 15.5±0.5 | 48±2 | 237±3 | 283±3 | 45±2 | 48±3 | 108±2 | 26±1 | 58 |
| 13 | 4 | 5.3 | 21.2 | 50±2 | 17±1 | 58±3 | 282±4 | 343±4 | 52.5±2 | 57±3 | 142±3 | 33±1 | 70 |
| 16 | 7.3 | 8 | 32 | 61±2 | 21.5±1 | 60±3 | 341.5±4 | 419±4 | 63±2 | 65±4 | 168.6±3 | 38±2 | 86 |
| 20 | 11.6 | 12.5 | 50 | 76±3 | 26.5±1 | 75.5±3 | 399.5 | 483±5 | 82±3 | 82±4 | 185±4 | 50±2 | 97 |
| 22 | 16 | 15 | 60 | 97±3 | 33±2 | 97±4 | 466±5 | 564±5 | 76±3 | 80±5 | 202±4 | 52±2 | 98 |
| 26 | 21.5 | 21.2 | 84.8 | 123±4 | 42±2 | 115±4 | 544±6 | 661±6 | 96±4 | 109±5 | 239±5 | 60±3 | 110 |
Ultimate Load is 4 times the Working Load Limit
