G80 Short Clevis Self-Lock Hook For Web Sling

G80 Short Clevis Self-Lock Hook For Web Sling
G80 Short Clevis Self-Lock Hook For Web Sling

#1 MARINE HARDWARE

G80 Short Clevis Self-Lock Hook For Web Sling

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

Product Details


Chain SizeWeight
(Kg)

WLL
(T)
  B.L
  (T)

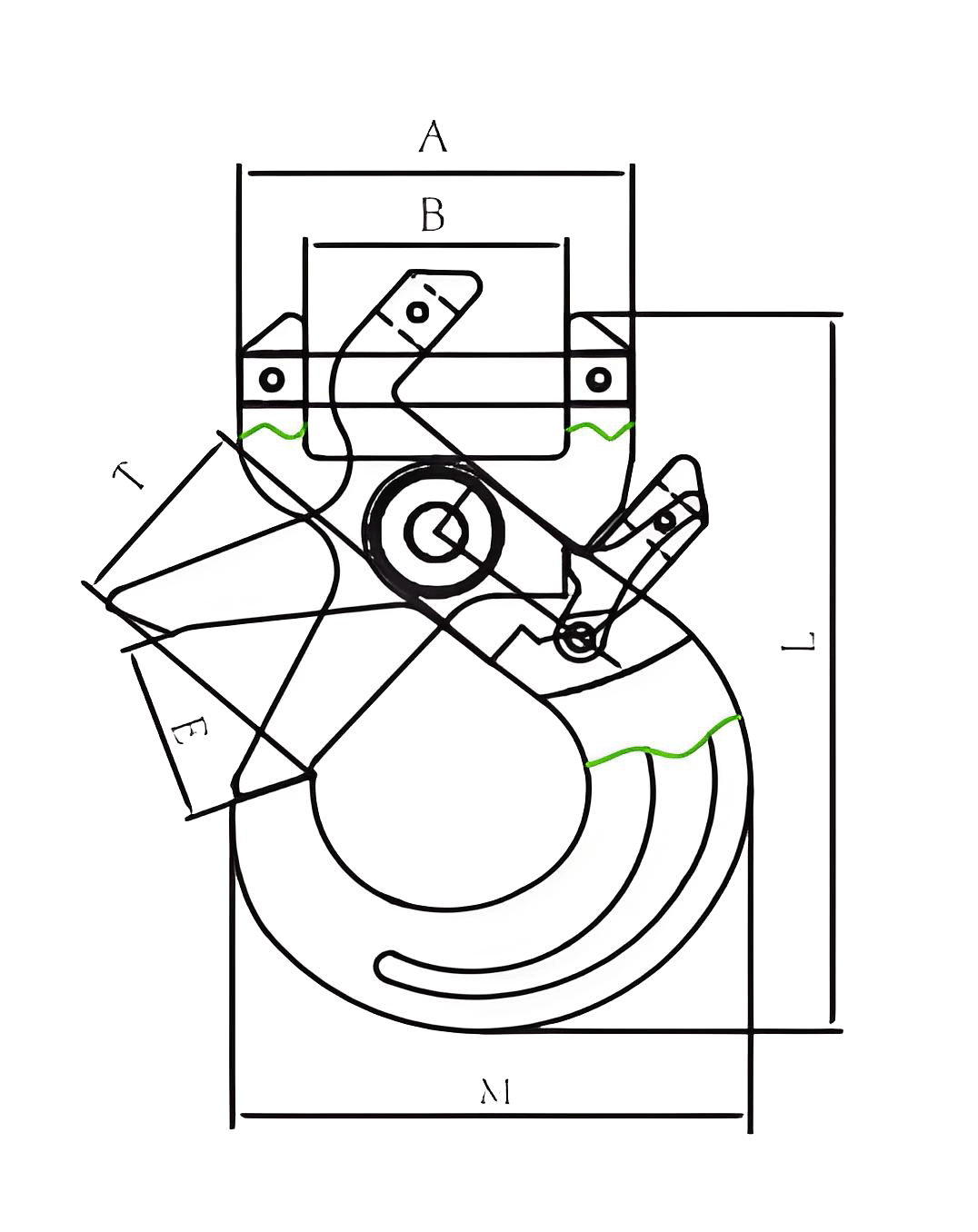

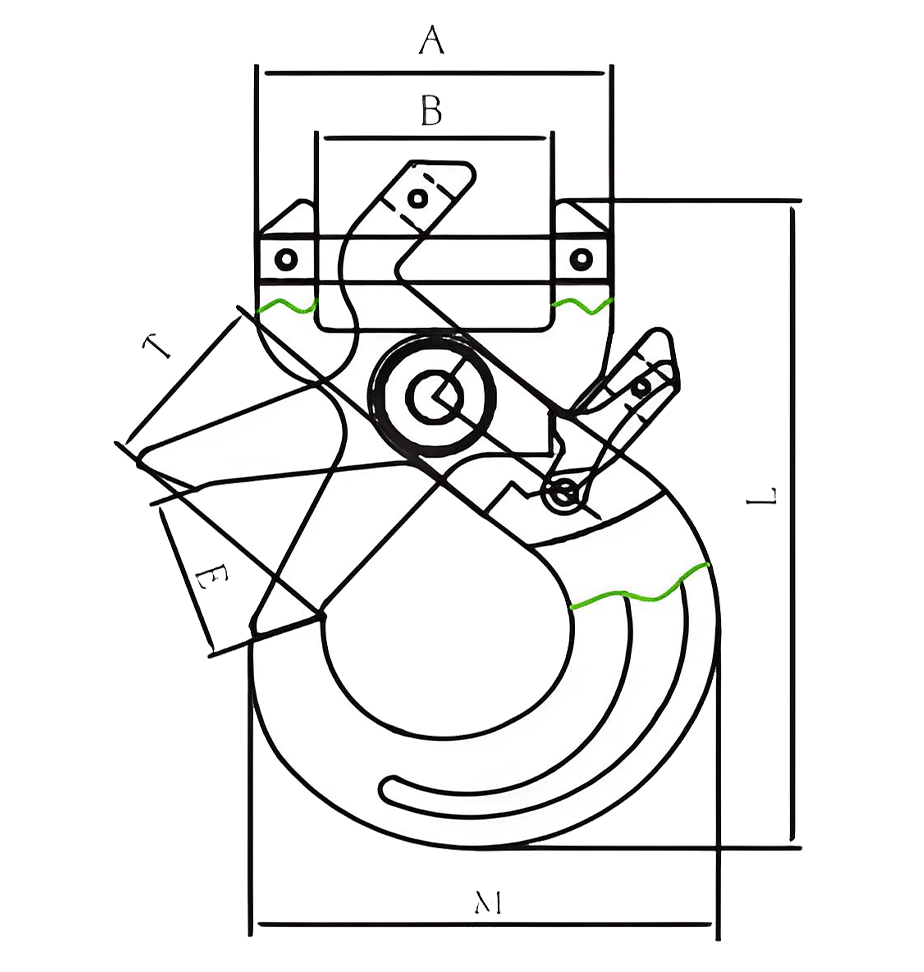

E±2A±2B±1.5L±2M±2T±1.5
2.2T1.94 2.2   8.8 32 98 65 186 129 50

Ultimate Load is 4 times the Working Load Limit
