G80 U.S. Type Swivel Self-Lock Hook

#1 MARINE HARDWARE

G80 U.S. Type Swivel Self-Lock Hook

Product attributes :

◆ Forged super alloy steel - Quenched and Tempered

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ With latch

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

◆ Be rotated under Non-load conditions

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

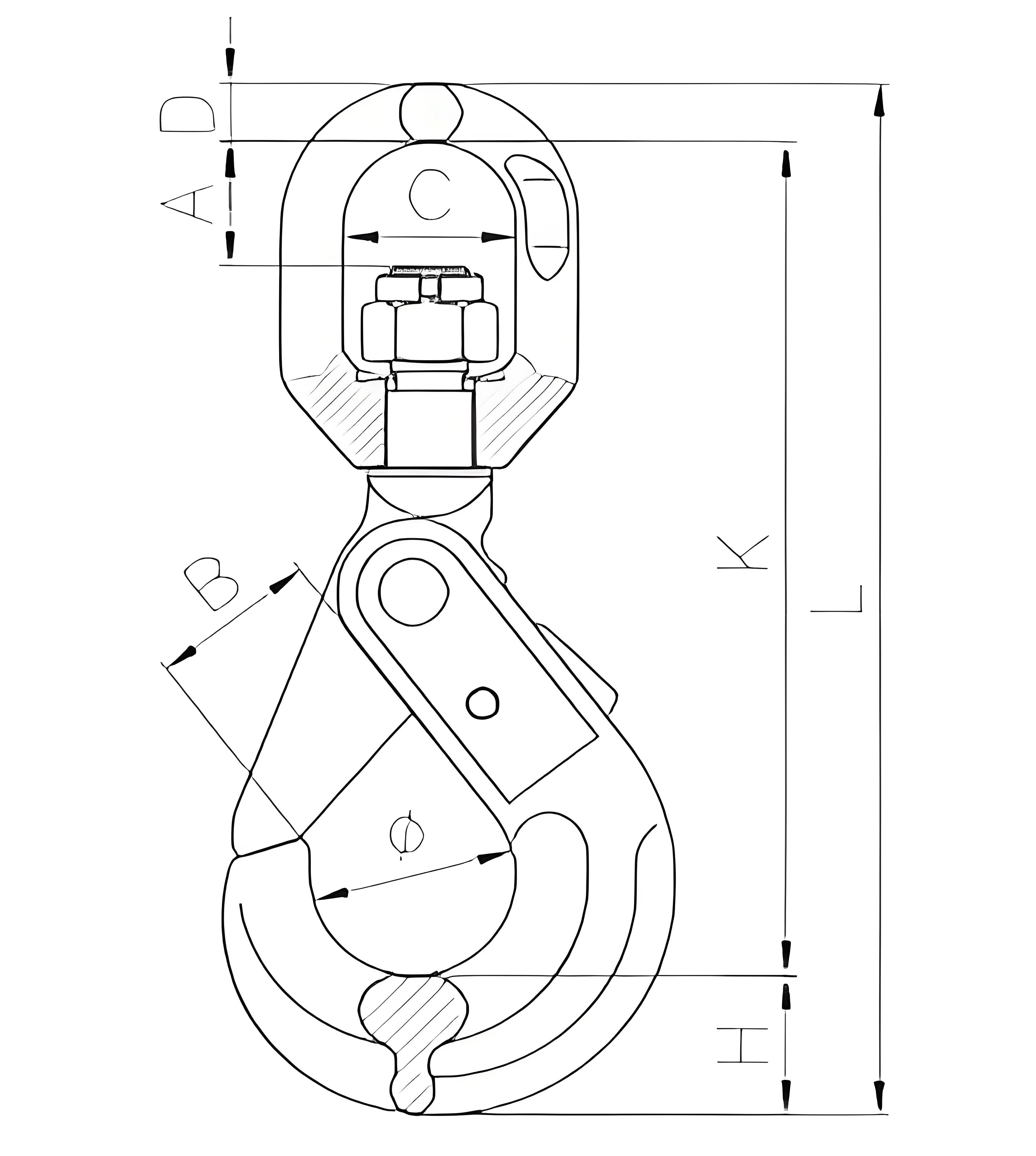

A±0.5B±1.5C±2D±1H±1K±2L±3Φ±2
7/8  1.2   2 28 35 36 13 29 116 163 42
103.2 12.8 35.5 42 42 15.5 31 218 265 55
13  4.5 5.4 21.6 41 55 50 17 41 261 319 65
16  7.36 8.2 32.8 50 66 70 21.5 52 326 399 76

Ultimate Load is 4 times the Working Load Limit
