G80 European Type Swivel Self-Lock Hook
G80 European Type Swivel Self-Lock Hook
Size: 6mm-22mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ Be rotated under Non-load conditions
Product Details

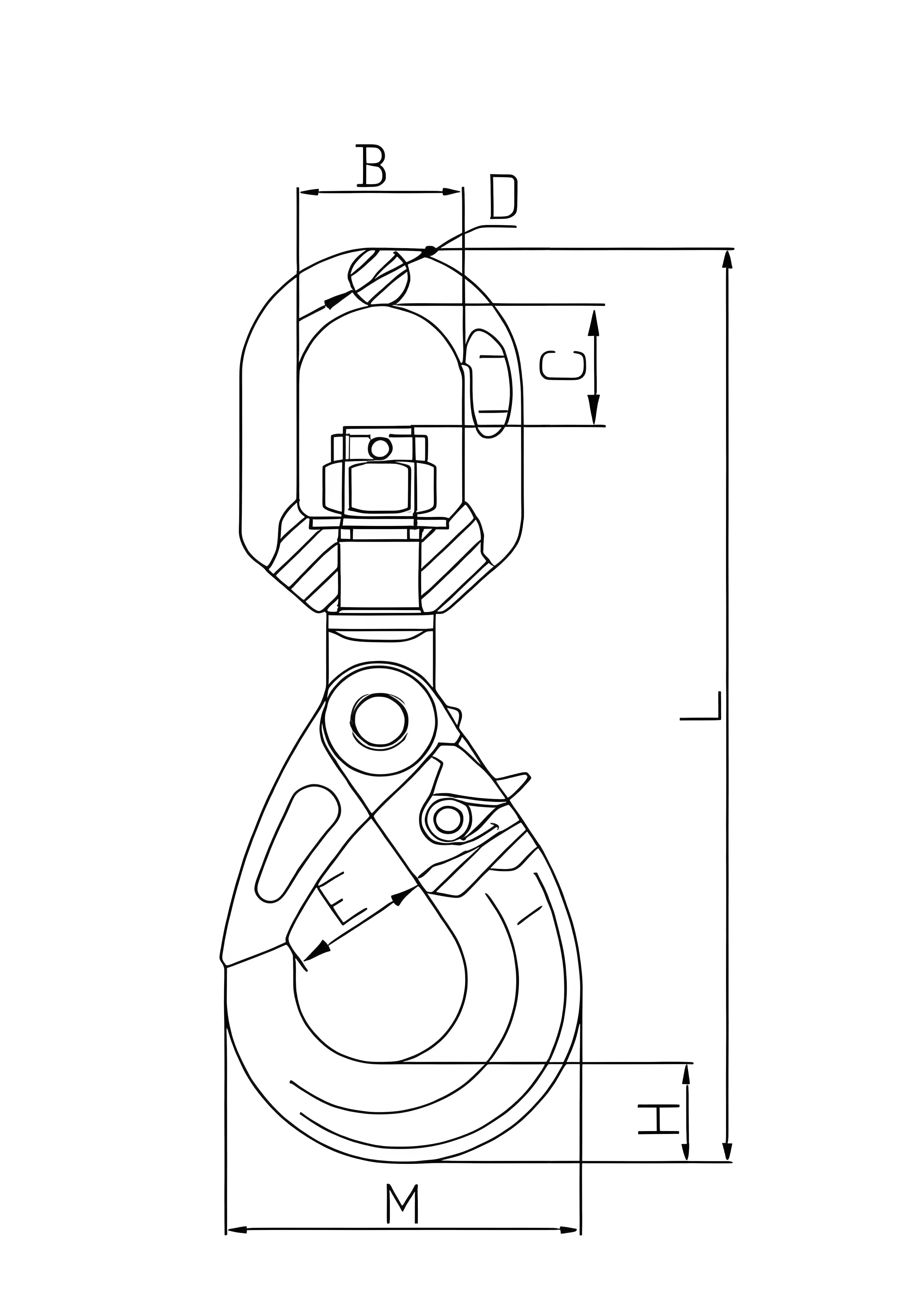

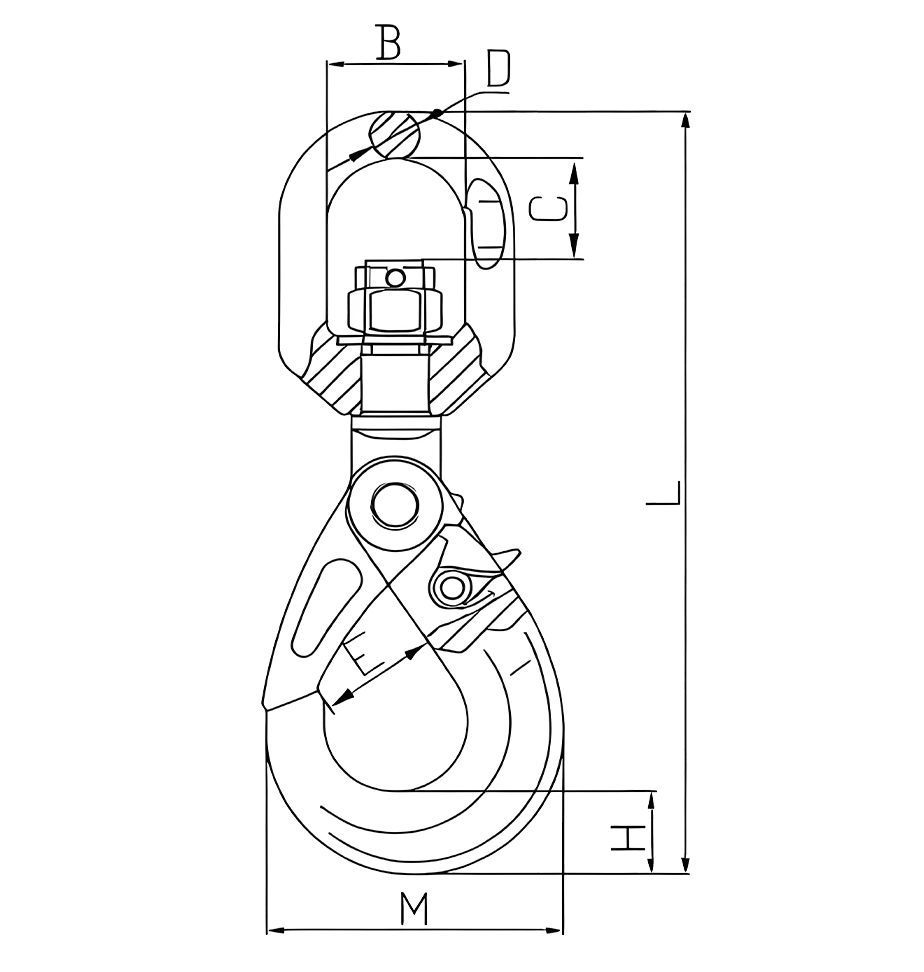

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | B±1.5 | C±2 | D±1 | E±1.5 | H±1 | M±2 | L±3.5 |
| 06 | 0.6 | 1.12 | 4.48 | 32.5 | 23 | 11.5 | 28 | 20 | 70 | 184 |
| 08 | 1.1 | 2 | 8 | 36 | 28.5 | 13 | 36 | 26 | 90 | 226 |
| 10 | 2 | 3.15 | 12.6 | 42 | 35 | 15.5 | 45 | 30 | 109 | 269 |
| 13 | 4 | 5.3 | 21.2 | 50 | 41 | 17 | 53.5 | 40.5 | 138.5 | 327 |
| 16 | 6.8 | 8 | 32 | 71 | 58 | 21.5 | 61 | 50.5 | 170.5 | 413 |
| 20 | 12.5 | 12.5 | 50 | 72 | 63 | 26 | 76.5 | 62 | 192.5 | 460 |
| 22 | 17.1 | 15 | 60 | 97 | 98 | 33 | 80 | 65 | 205 | 566 |
Ultimate Load is 4 times the Working Load Limit
