G80 Web Sling Connector
G80 Web Sling Connector
Size: 6mm-32mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for web sling and EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

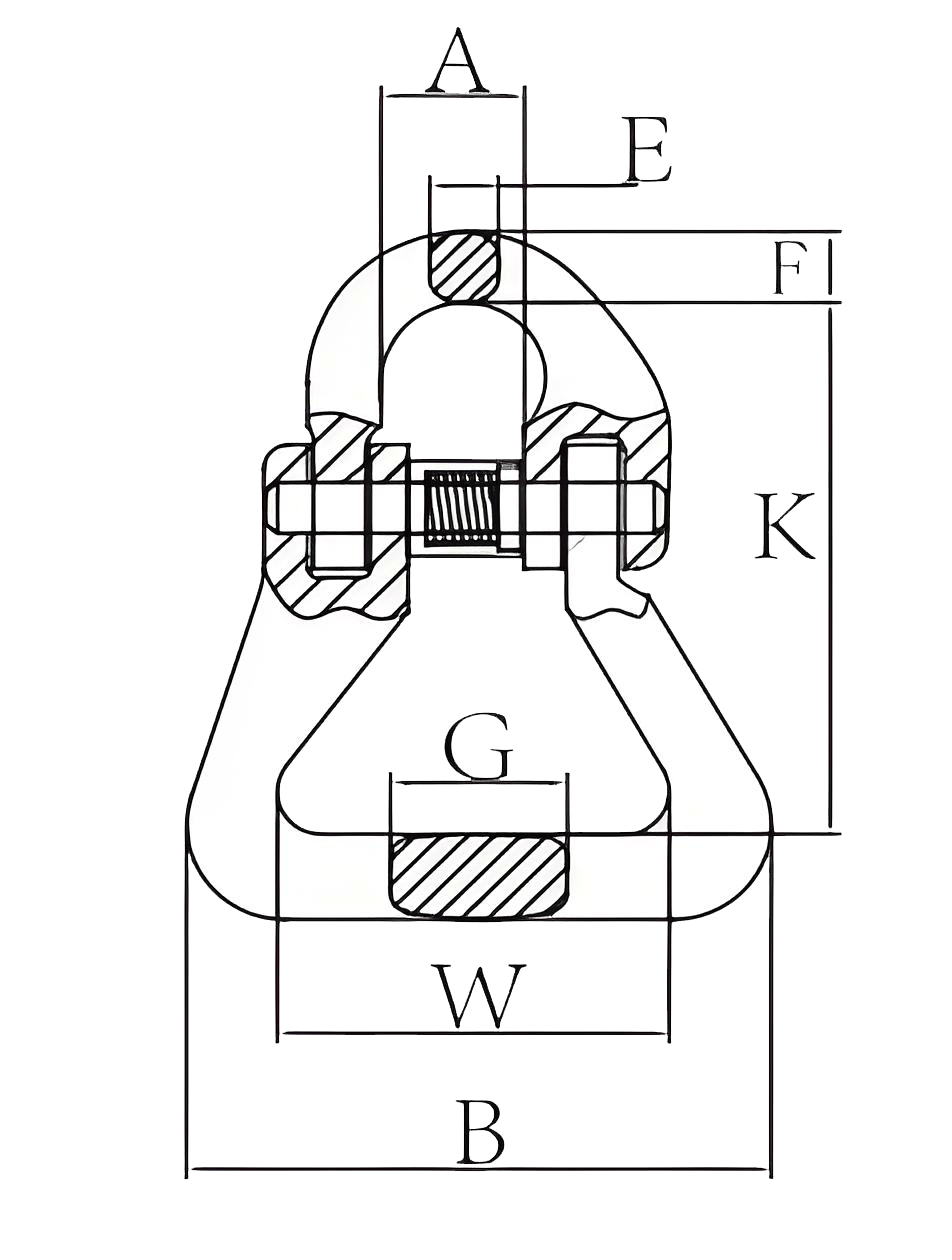

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | K | W | G | E | F |
| 06 | 0.2 | 1.12 | 4.48 | 15.5±1 | 59±2 | 56±3 | 38±2 | 18±1 | 7±1 | 7.5±1 |
| 07 | 0.2 | 1.5 | 6 | 20±1 | 61.5±2 | 64±3 | 38±2 | 24±1 | 8.5±1 | 8.5±1 |
| 7/8 | 0.3 | 2 | 8 | 20±1 | 61.5±2 | 64±3 | 38±2 | 24±1 | 8.5±1 | 9±1 |
| 10-8B | 0.53 | 3.15 | 12.6 | 24±1.5 | 75±2 | 86±4 | 45±2 | 30.5±1.5 | 11±1.5 | 12±1.5 |
| 13 | 1.03 | 5.3 | 21.2 | 28.5±1.5 | 88±3 | 94±4 | 51±2 | 36.8±1.5 | 16.5±1.5 | 6.5±1.5 |
| 16 | 1.87 | 8 | 32 | 35±2 | 108±3 | 122±4 | 63±3 | 45.2±2 | 19.8±2 | 20±2 |
| 18/20 | 2.97 | 12.5 | 50 | 41±2 | 129±4 | 138±4 | 77±3 | 51.8±2 | 23±2 | 23±2 |
| 22 | 6.4 | 15 | 60 | 49.5±2 | 191±5 | 180±5 | 123±3 | 70±2 | 26±2 | 26±2 |
| 26 | 10.25 | 21.2 | 84.8 | 58±3 | 228.4±5 | 209.5±5 | 149±3 | 86±3 | 30±3 | 31.4±3 |
| 32 | 19 | 31.5 | 126 | 72.5±3 | 252±6 | 279±6 | 157±3 | 91±3 | 37±3 | 38±3 |
Ultimate Load is 4 times the Working Load Limit
