G80 Omega Link
◆ Forged super alloy steel - Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% ivdividually inspected and tested
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
Product Details

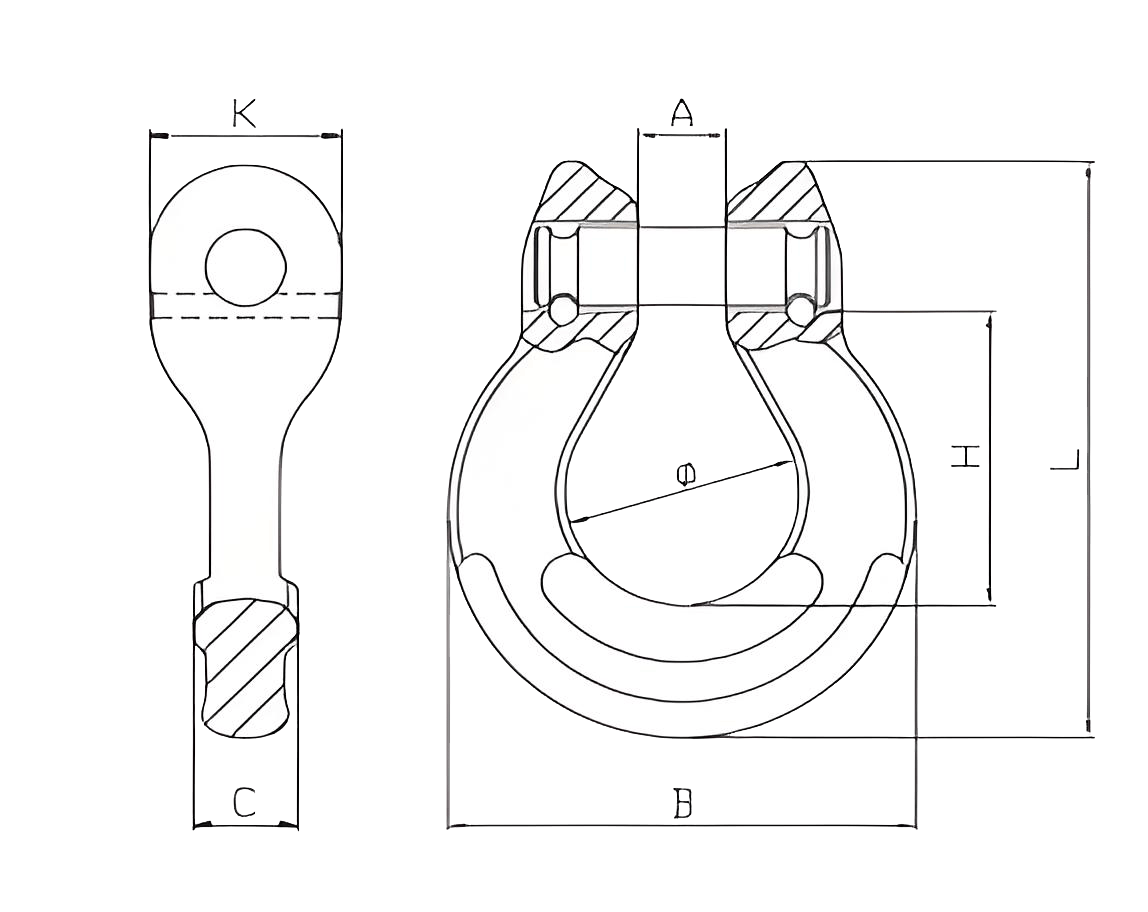

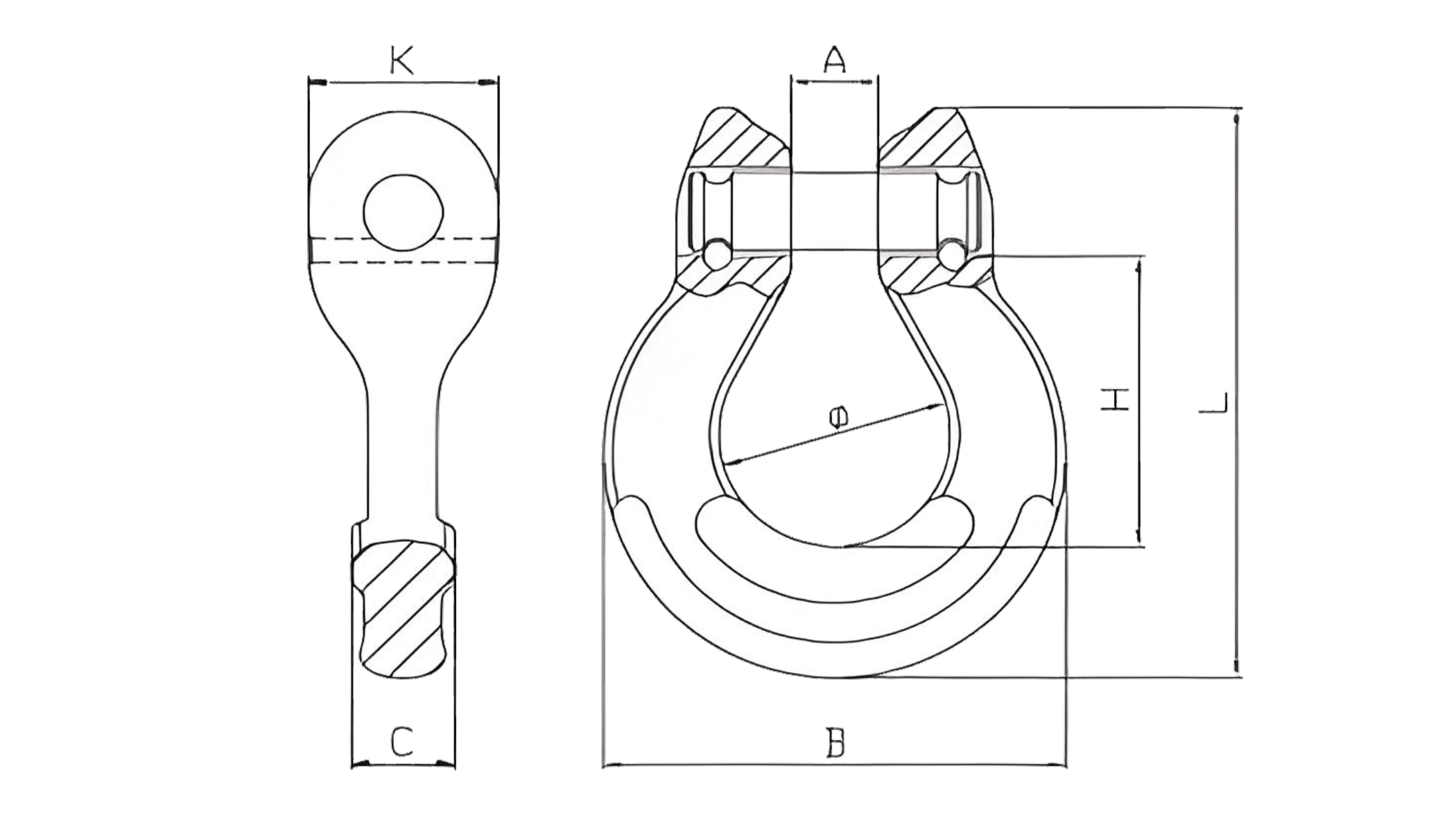

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A | B | C | Φ | H | L | K |
| 06 | 0.12 | 1.12 | 4.48 | 8±1 | 41±1 | 9±0.5 | 19±1 | 25±1 | 52±1.5 | 17±1 |
| 7/8 | 0.22 | 2.0 | 8.0 | 10±1 | 52±1 | 14±0.5 | 23±1 | 35±1 | 68.5±1.5 | 22±1 |
| 10 | 0.36 | 3.15 | 12.6 | 12.5±1.2 | 62±1 | 16±0.5 | 30±1.5 | 46±1.5 | 87±2 | 26±1 |
| 13 | 0.71 | 5.3 | 21.2 | 15±1.2 | 80±1.5 | 20±0.5 | 38±1.5 | 54±1.5 | 108±2 | 33±1.5 |
| 16 | 1.12 | 8 | 32 | 19±1.5 | 99±1.5 | 25±1 | 49±2 | 64±2 | 126±3 | 38±1.5 |
| 20 | 2.1 | 12.5 | 50 | 23±1.5 | 118±2 | 32±1 | 57±2 | 75.6±2 | 152±3 | 50±1.5 |
Ultimate Load is 4 times the Working Load Limit
