G80 Germanic Type Connecting Link
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100% ivdividually inspected and tested
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
Product Details

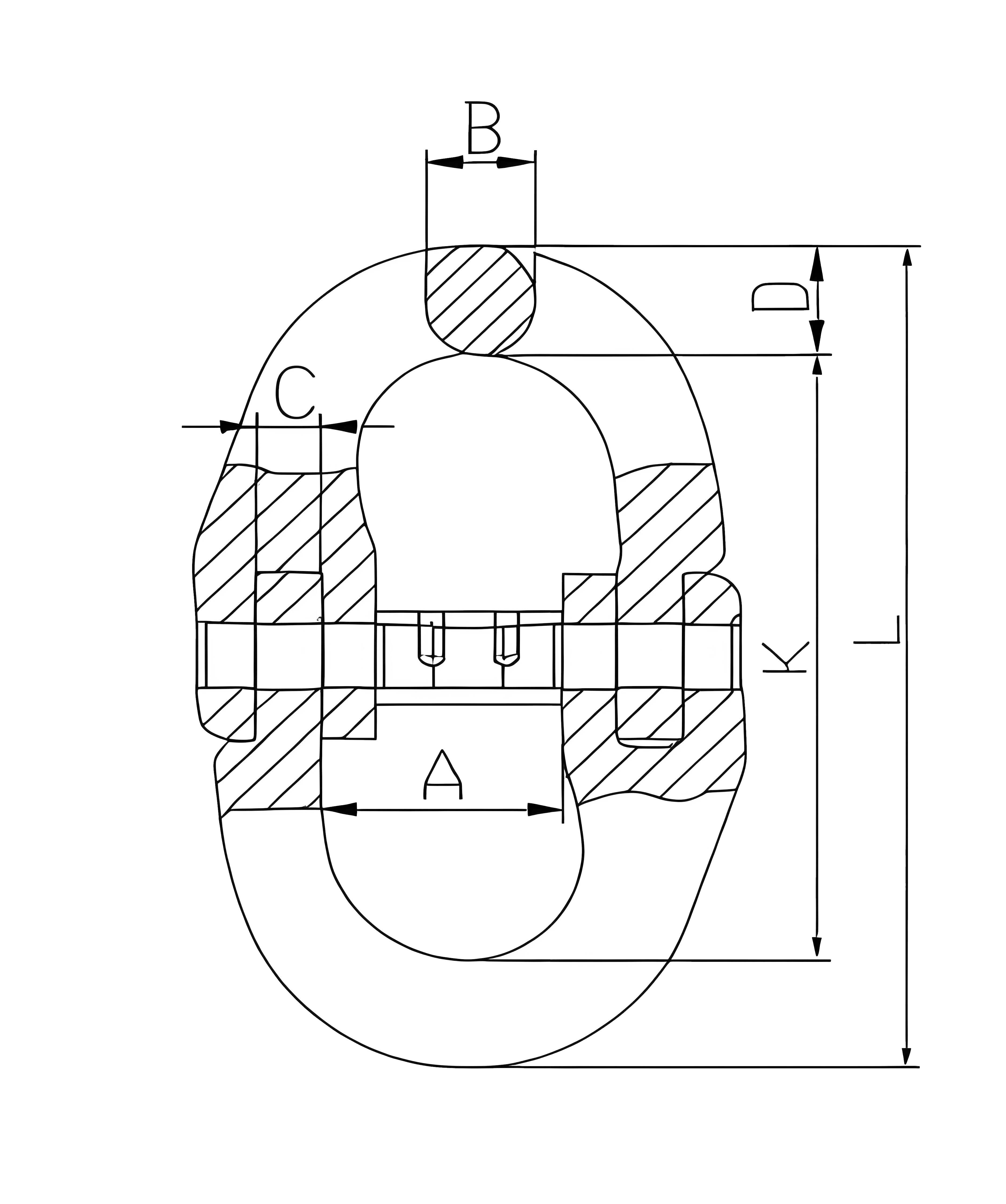

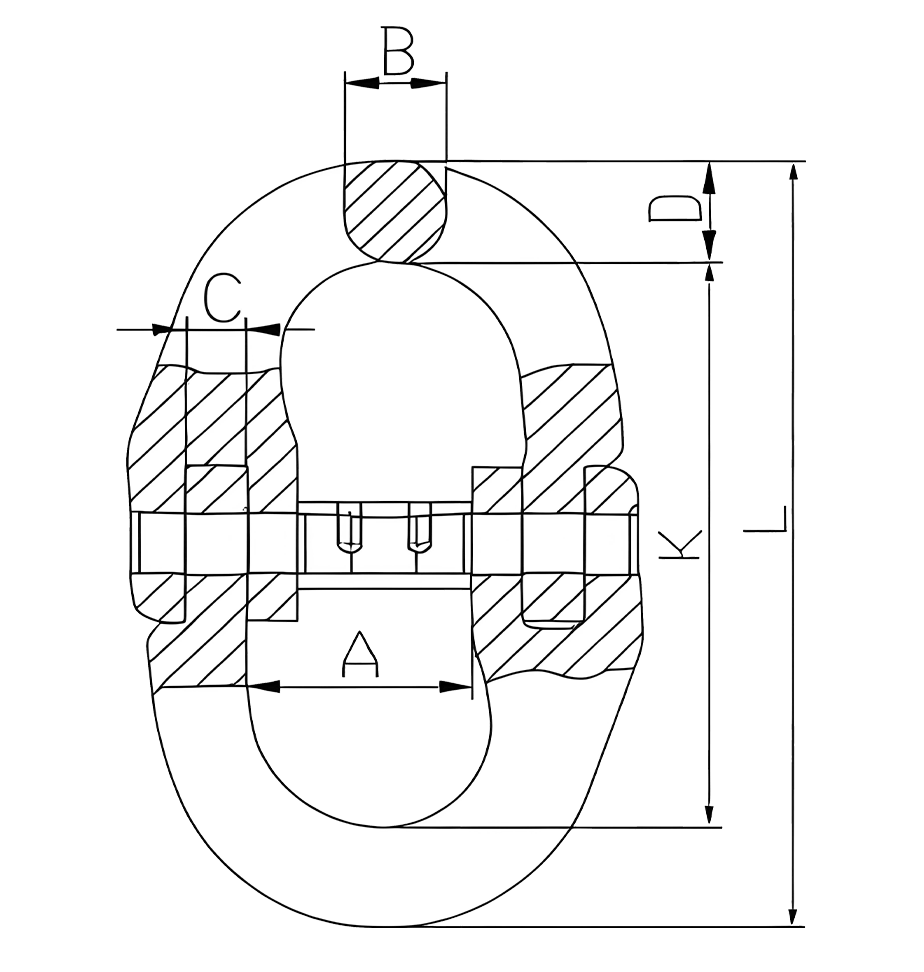

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | A±1.5 | B±1 | C±0.5 | L±2 | K±2 | D±1 |
| 6 | 0.081 | 1.12 | 4.48 | 15.5 | 7 | 5.3 | 58 | 43 | 7.5 |
| 7-8 | 0.12 | 1.5 | 6 | 19.8 | 7.5 | 6.5 | 62.5 | 43 | 9.8 |
| 7/8 | 0.2 | 2 | 8 | 23.2 | 9.3 | 10 | 77 | 56 | 10.5 |
| 10 | 0.33 | 3.15 | 12.6 | 27.5 | 11.5 | 8 | 101 | 77 | 12 |
| 13 | 0.66 | 5.3 | 21.2 | 36 | 15 | 9.3 | 129 | 95 | 17 |
| 16 | 1.22 | 8 | 32 | 42 | 19.8 | 12.5 | 161 | 119 | 21 |
| 18/20 | 2.18 | 12.5 | 55.4 | 52 | 23 | 15 | 186 | 137 | 24.5 |
| 22 | 3.27 | 15 | 60 | 55.4 | 27.5 | 17.3 | 217.5 | 158.5 | 29.5 |
Ultimate Load is 4 times the Working Load Limit
