G80 European Type Master Link
G80 European Type Master Link
Size: 7mm-72mm
Standard: EN1677-4
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super alloy steel
Manufacturing process: Forged - Quenched and Tempered
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Note:
◆ Suitable for 1 or 2 legs G80 chain sling as per EN818-4
Product Details

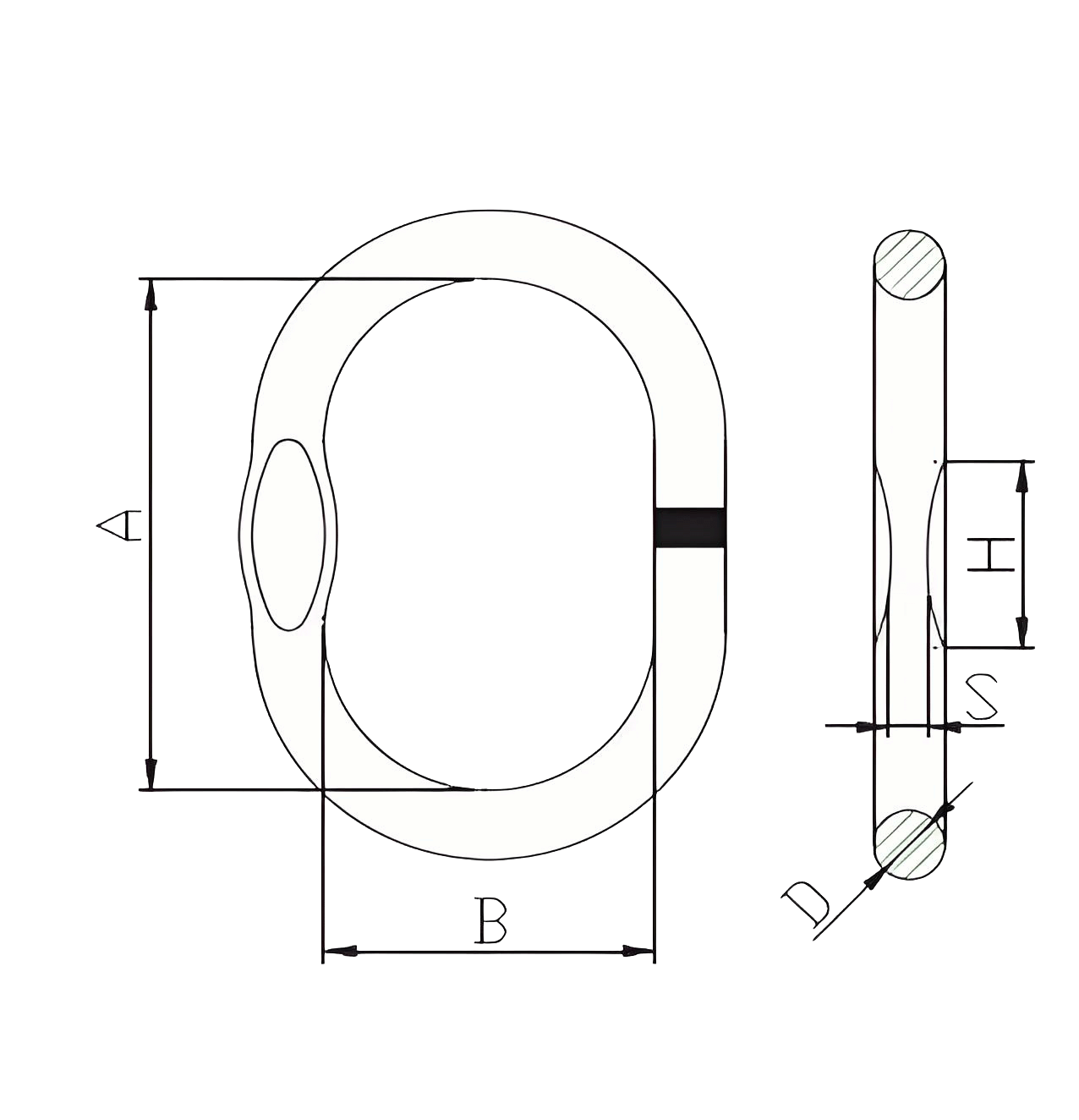

| WELDING | ||||||
| Chain Size | Weight (Kg) | WLL (T) | A | B | D | S×H |
| 76-8 | 0.34 | 1.6 | 110 | 60 | 13 | 7+0.3×25 |
| 76-8B | 0.43 | 1.6 | 140 | 80 | 13 | 7+0.3×25 |
| 87-8 | 0.54 | 2.12 | 110 | 60 | 16 | 7+0.5×25 |
| 87-8B | 0.66 | 2.12 | 140 | 80 | 16 | 7+0.5×25 |
| 108-8 | 0.823 | 3.15 | 135 | 75 | 18 | 8+0.5×28 |
| 108-8B | 1.1 | 3.15 | 180 | 120 | 18 | 8+0.5×28 |
| 1310-8 | 1.5 | 5.3 | 160 | 90 | 22 | 11±0.5×35 |
| 1310-8B | 1.68 | 5.3 | 180 | 120 | 22 | 11±0.5×35 |
| 16 13-8 | 2.32 | 8 | 180 | 100 | 26 | 13±0.5×43 |
| 18 16-8 | 3.95 | 11.2 | 200 | 110 | 32 | 17±0.5×55 |
| 20 18-8 | 6.34 | 14 | 260 | 140 | 36 | 19±0.5×60 |
| 22 20-8 | 8.96 | 17 | 300 | 160 | 40 | 20±0.5×64 |

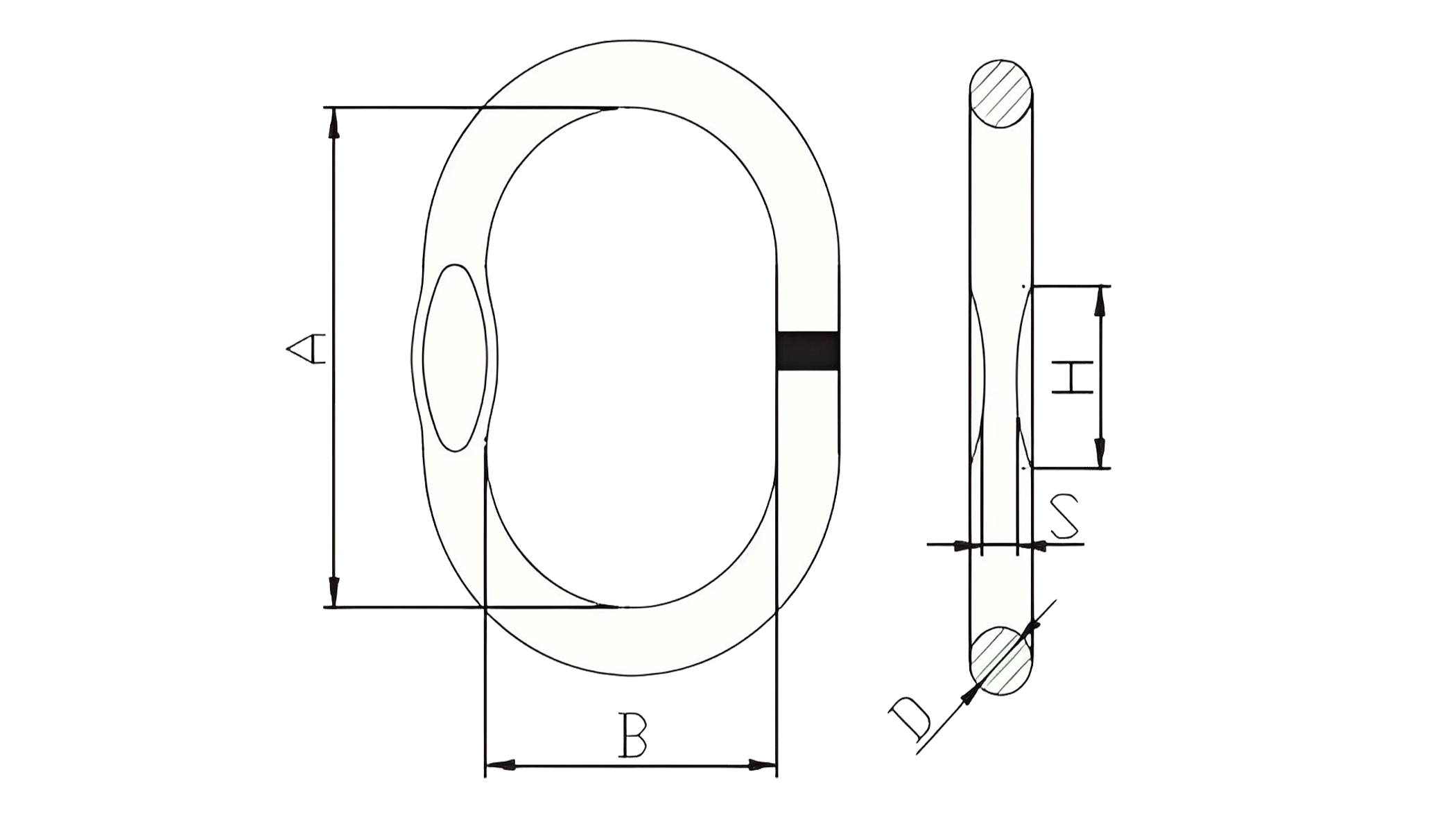

| FORGING | ||||||
| Chain Size | Weight (Kg) | WLL (T) | A | B | D | S×H |
| 26 22-8 | 12.8 | 21.2 | 340 | 180 | 45 | —— |
| 32 26-8 | 16.55 | 31.5 | 350 | 190 | 50 | —— |
| 36 32-8 | 23.28 | 45 | 400 | 200 | 56 | —— |
| 40 36-8 | 32 | 56 | 430 | 220 | 63 | —— |
| 72-8 | 45.76 | 63 | 460 | 250 | 72 | —— |
Ultimate Load is 4 times the Working Load Limit
