G80 European Type Master Link Assembly
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

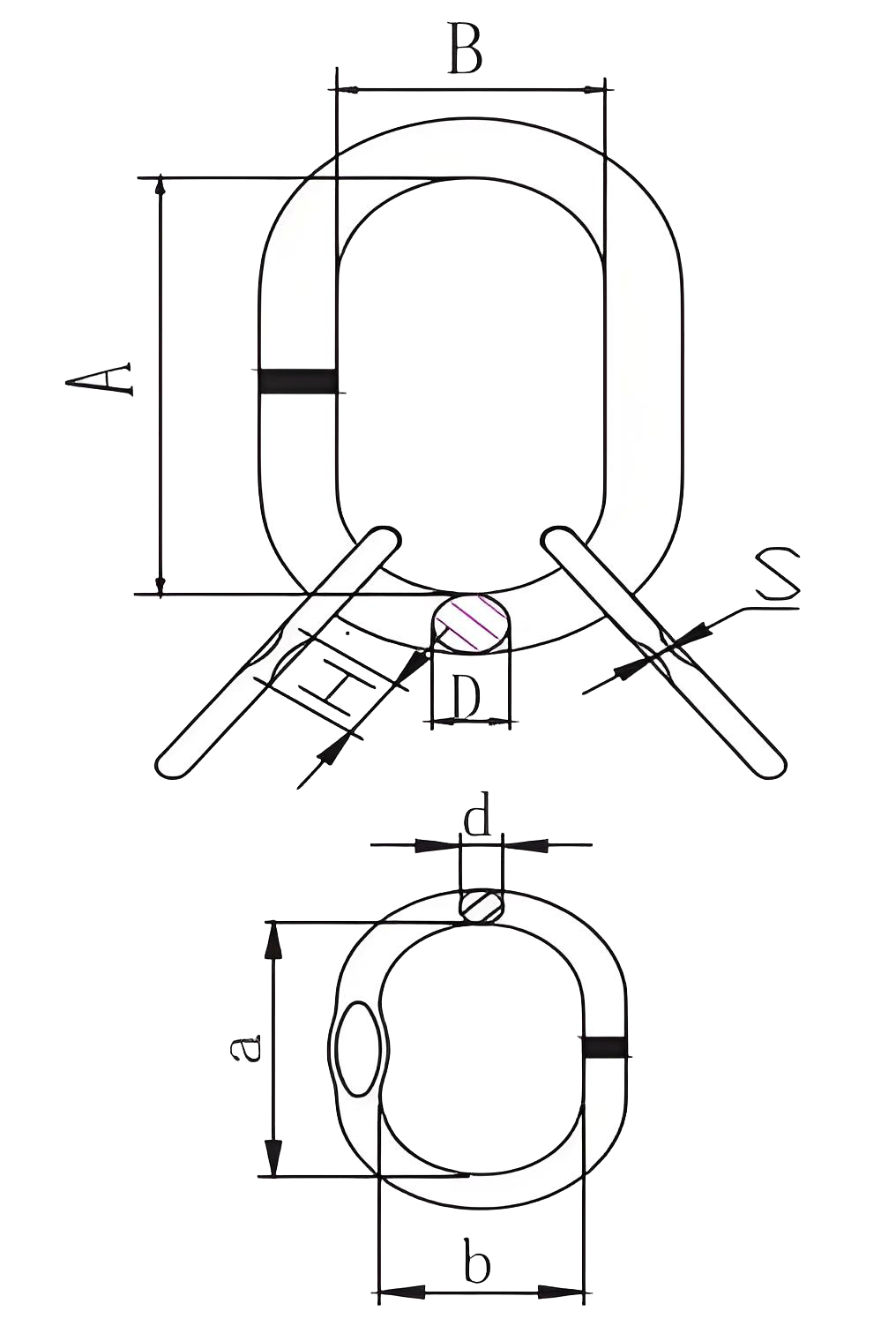

| WELDING | |||||||||
| Chain Size | Weight (Kg) | WLL (T) | A | B | D | a | b | d | S×H |
| 6 | 1.18 | 2.36 | 135 | 75 | 18 | 54 | 25 | 13 | 7+0.3×25 |
| 7 | 1.24 | 3.15 | 135 | 75 | 18 | 60 | 38 | 13 | 7+0.5×25 |
| 8 | 2.2 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 | 8+0.5X28 |
| 10 | 3.4 | 6.7 | 180 | 100 | 26 | 85 | 40 | 18 | 11±0.5X35 |
| 13 | 6.1 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 | 13±0.5×43 |
| 16 | 9.98 | 17 | 260 | 140 | 36 | 140 | 65 | 26 | 17±0.5×55 |
| 18B | 19.1 | 19.5 | 300 | 160 | 40 | 270 | 140 | 32 | 18±0.5×59 |
| 18C | 19.4 | 21.2 | 340 | 180 | 45 | 160 | 90 | 32 | 18±0.5×59 |
| 18 | 18.9 | 21.2 | 340 | 180 | 45 | 180 | 100 | 32 | 18±0.5×59 |

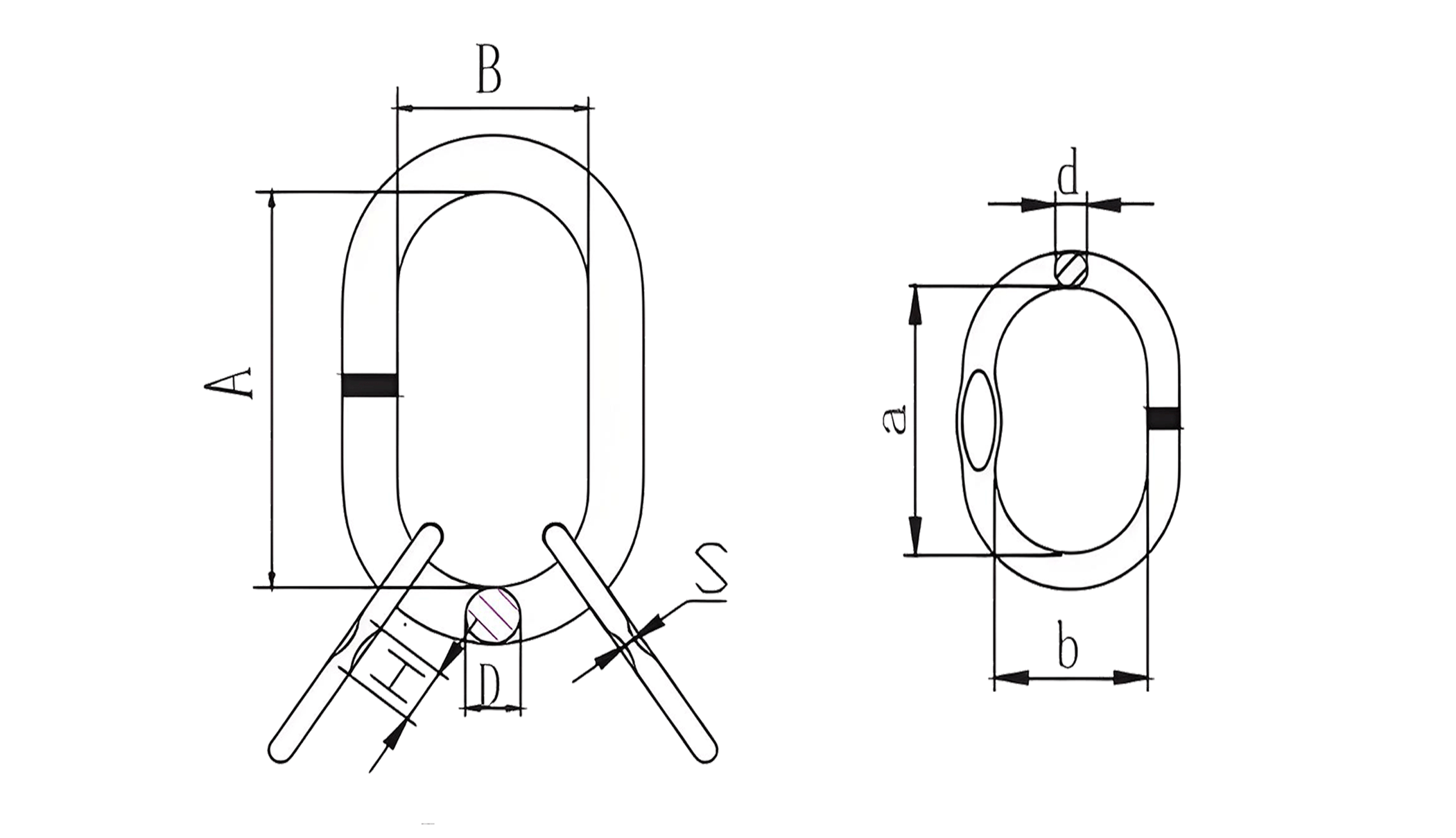

| FORGING | |||||||||
| Chain Size | Weight (Kg) | WLL (T) | A | B | D | a | b | d | S×H |
| 20C | 23.1 | 26.5 | 350 | 190 | 50 | 160 | 90 | 32 | 18±0.5×59 |
| 20 | 23.7 | 26.5 | 350 | 190 | 50 | 180 | 100 | 32 | 20±0.5×64 |
| 22 | 25.2 | 31.5 | 350 | 190 | 50 | 180 | 100 | 36 | —— |
| 26 | 35.2 | 45 | 400 | 200 | 56 | 180 | 100 | 40 | —— |
| 28 | 47 | 50 | 430 | 220 | 63 | 180 | 100 | 45 | —— |
| 32 | 66.46 | 67 | 460 | 250 | 72 | 200 | 110 | 50 | —— |
Ultimate Load is 4 times the Working Load Limit
