#1 MARINE HARDWARE
G80 U.S. Type Master Link
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

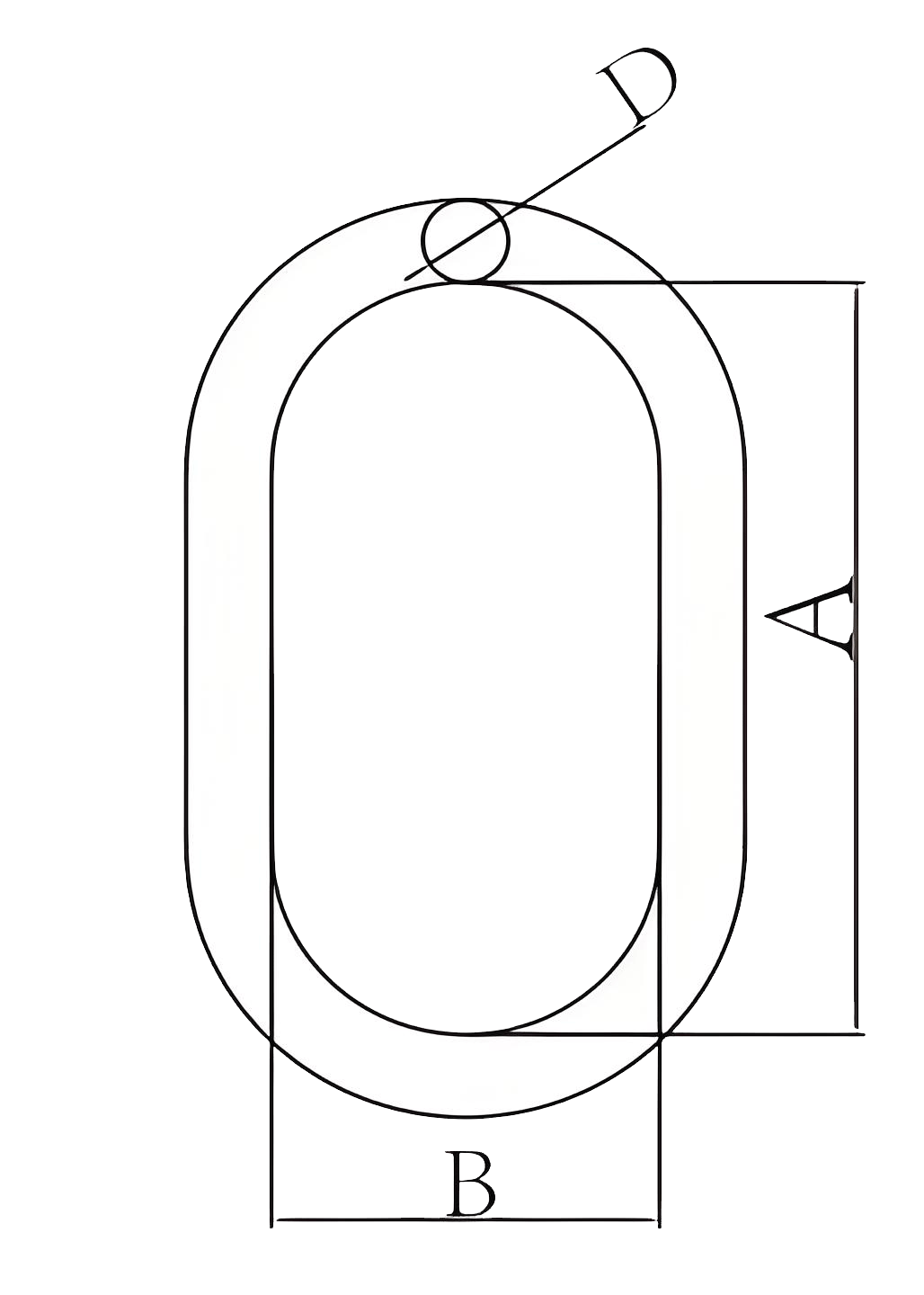

| Chain Size | Weight (Kg) | Apply for G80 Chain Size | WLL Chain | WLL ROPE (T) | Dimension(mm) | |||
| FOR 1 LEG T | FOR 2 LEG T | A | B | D | ||||
| 1/2 | 0.36 | 1/4 | 1.5 | 2.12 | 3.4 | 127 | 63.5 | 13 |
| 5/16 | 2 | 2.8 | ||||||
| 5/8 | 0.7 | 5/16 | 2 | 2.8 | 4 | 152 | 76 | 16 |
| 3/8 | 3.15 | —— | ||||||
| 3/4 | 0.93 | 3/8 | 3.15 | 4.25 | 5.6 | 140 | 70 | 19 |
| 7/8 | 1.5 | 3/8 | 3.15 | 4.25 | 6.9 | 160 | 90 | 22 |
| 1/2 | 5.3 | —— | ||||||
| 1 | 2.1 | 1/2 | 5.3 | 7.5 | 11.8 | 178 | 89 | 25 |
| 5/8 | 8 | 11.2 | ||||||
| 1-1/4 | 4.24 | 5/8 | 8 | 11.2 | 17.7 | 222 | 111 | 32 |
| 3/4 | 11.2 | 16 | ||||||
| 1-1/2 | 7.17 | 3/4 | 11.2 | 16 | 27.7 | 267 | 135 | 38 |
| 7/8 | 15 | 21.2 | ||||||
| 1-3/4 | 11.55 | 7/8 | 15 | 21.2 | 38.5 | 305 | 152 | 45 |
| 1 | 21.2 | —— | ||||||
| 2 | 17.2 | 1 | 21.2 | 30 | 46.5 | 355 | 178 | 51 |
| 11/4 | 31.5 | —— | ||||||
| 2-1/4 | 24.5 | 11/4 | 31.5 | 45 | 64.9 | 406 | 203 | 57 |
| 2-1/2 | 30.9 | —— | —— | —— | 72.6 | 406 | 203 | 63.5 |
| 2-3/4 | 39.5 | —— | —— | —— | 98.4 | 406 | 241 | 70 |
| 3 | 50.34 | —— | —— | —— | 103 | 457 | 228 | 76 |
| 3-1/4 | 65.68 | —— | —— | —— | 119 | 508 | 254 | 82.5 |
| 3-1/2 | 90.24 | —— | —— | —— | 126 152 169 | 610 | 305 | 89 |
| 3-3/4 | 89.27 | —— | —— | —— | 508 | 254 | 95 | |
| 4 | 103.43 | —— | —— | —— | 508 | 254 | 102 | |
| 4-1/4 | 137 | —— | —— | —— | 176 184 206 | 610 | 305 | 108 |
| 4-1/2 | 178 | —— | —— | —— | 710 | 355 | 115 | |
| 4-3/4 | 196 | —— | —— | —— | 710 | 355 | 120 | |
| 5 | 234 | —— | —— | —— | 226 | 760 | 380 | 127 |
Ultimate Load is 4 times the Working Load Limit
