G80 Master Link Assembly
◆ Forged super alloy steel- Quenched and Tempered
◆ Suitable for EN818-2 G80 chain
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ Surface finish: Powder coating
◆ Colour code: Red, Yellow
◆ Positive lock latch is Self-Locking when hook is loaded
Product Details

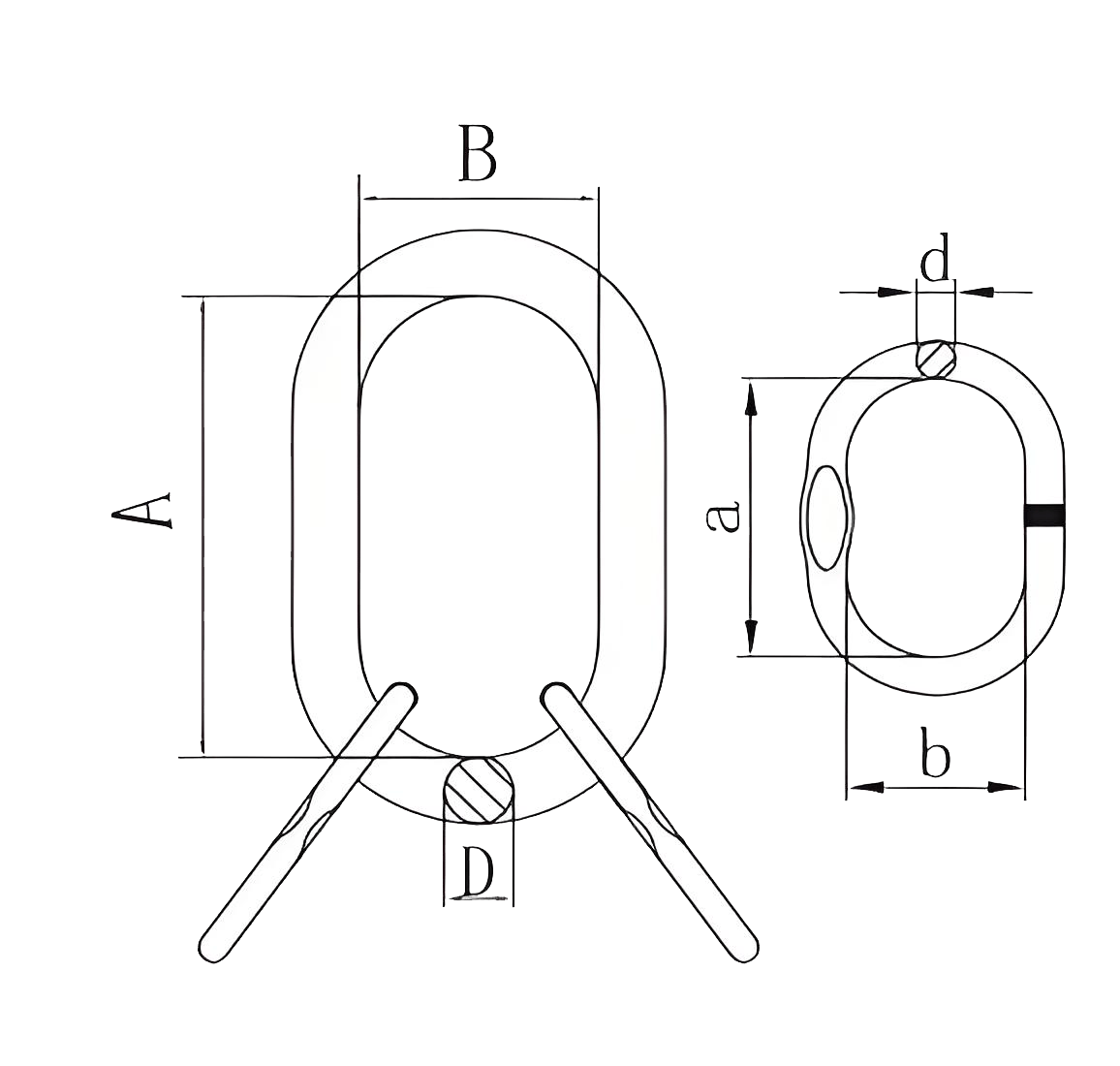

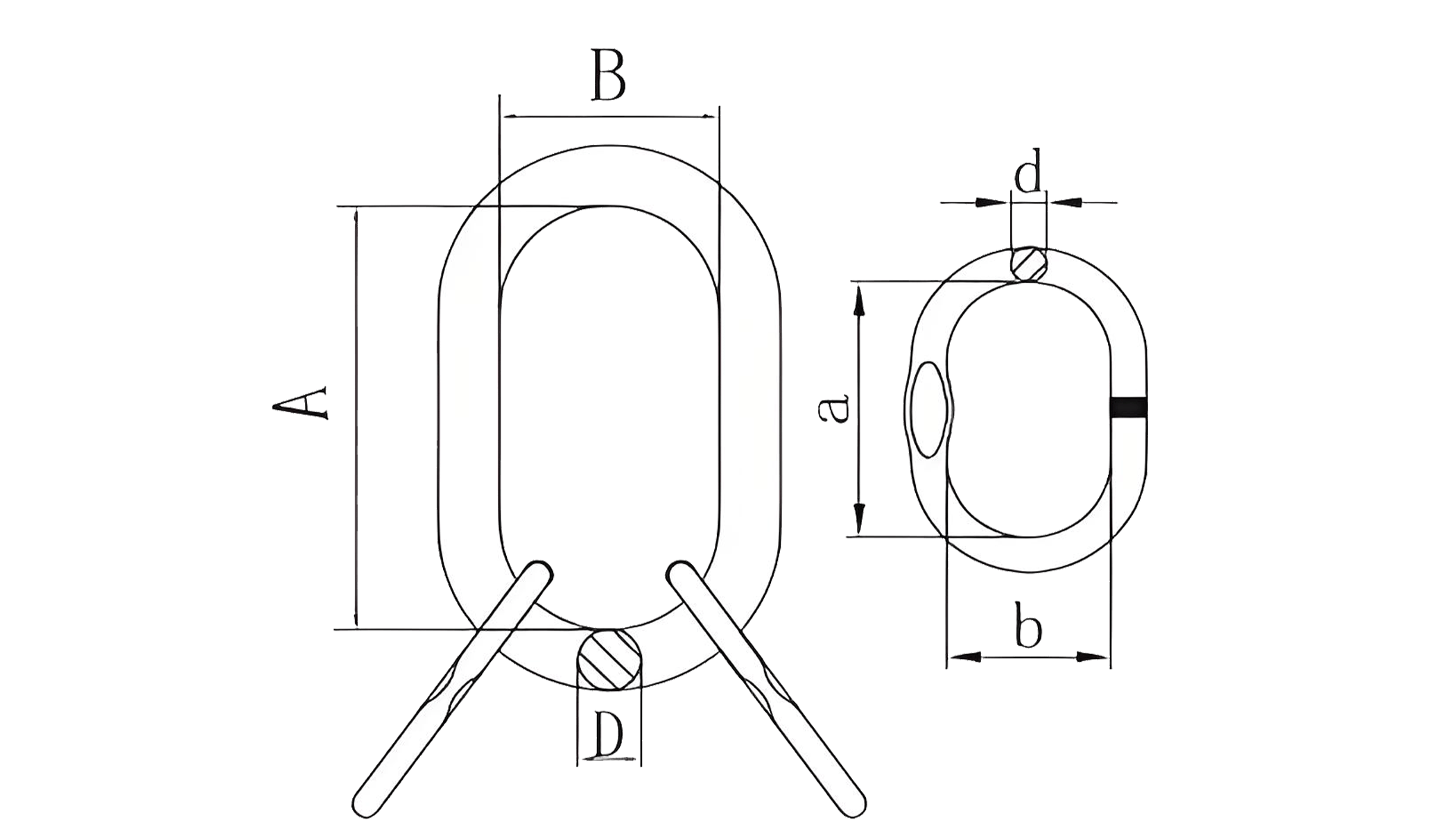

| Chain Size | Weight (Kg) | WLL (T) | A | B | D | a | b | d | S |
| MA16 | 1.19 | 3.8 | 120 | 70 | 16 | 95 | 51 | 13 | 7.5+0.5 |
| MA20 | 2.5 | 5.8 | 170 | 90 | 20 | 120 | 70 | 16 | 9±0.5 |
| MA20-B | 2.5 | 5.8 | 170 | 90 | 20 | 120 | 70 | 16 | 9±0.5 |
| MA22 | 3.77 | 7.6 | 170 | 90 | 22 | 150 | 80 | 20 | 11±0.5 |
| MA22-B | 3.77 | 7.6 | 160 | 90 | 22 | 150 | 80 | 20 | 11±0.5 |
| Q23B | 3.6 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 | 9±0.5 |
| Q23B | 3.3 | 5.8 | 270 | 140 | 22 | 120 | 70 | 16 | 9±0.5 |
| Q23B-C | 3.6 | 5.8 | 270 | 140 | 22 | 150 | 75 | 16 | 9±0.5 |
| MA25 | 4.45 | 10 | 190 | 100 | 25 | 150 | 80 | 20 | 11±0.5 |
| MA25-B | 4.45 | 10 | 190 | 102 | 25 | 150 | 80 | 20 | 11±0.5 |
| Q29B | 5.6 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 | 11±0.5 |
| Q29B-B | 5.9 | 11.8 | 270 | 140 | 28 | 150 | 70 | 20 | 11±0.5 |
| Q29B-C | 5.6 | 11.8 | 270 | 140 | 28 | 140 | 70 | 20 | 11±0.5 |
| MA28 | 6.12 | 12.7 | 210 | 110 | 28 | 170 | 90 | 22 | 12±0.5 |
| MA28 | 6.12 | 12.7 | 210 | 110 | 28 | 170 | 90 | 22 | 12±0.5 |
| MA32 | 9.47 | 15.2 | 270 | 140 | 32 | 190 | 100 | 25 | 13±0.5 |
| MA32-C | 9.47 | 15.2 | 270 | 140 | 32 | 190 | 100 | 25 | 13±0.5 |
| MA38 | 17.4 | 25 | 270 | 140 | 38 | 270 | 140 | 32 | 17±0.5 |
| MA38-B | 15 | 17 | 420 | 220 | 38 | 180 | 100 | 25 | 17±0.5 |
| MA38-C | 17.4 | 25 | 270 | 140 | 38 | 270 | 140 | 32 | 17±0.5 |
| MA45 | 26.76 | 34 | 320 | 170 | 45 | 270 | 140 | 38 | 20±0.5 |
| MA50 | 33.2 | 40 | 380 | 200 | 50 | 270 | 140 | 38 | —— |
| MA60 | 65 | 58 | 430 | 220 | 60 | 380 | 200 | 50 | —— |
| MA70 | 103 | 84 | 500 | 250 | 70 | 430 | 220 | 60 | —— |
Ultimate Load is 4 times the Working Load Limit
