G80 Lifting Link

Product attributes :

◆ Forged super alloy steel- Quenched and Tempered

◆ Suitable for EN818-2 G80 chain

◆ Individually proof test at 2.5 times Working Load Limit

◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ Surface finish: Powder coating

◆ Colour code: Red, Yellow

◆ Positive lock latch is Self-Locking when hook is loaded

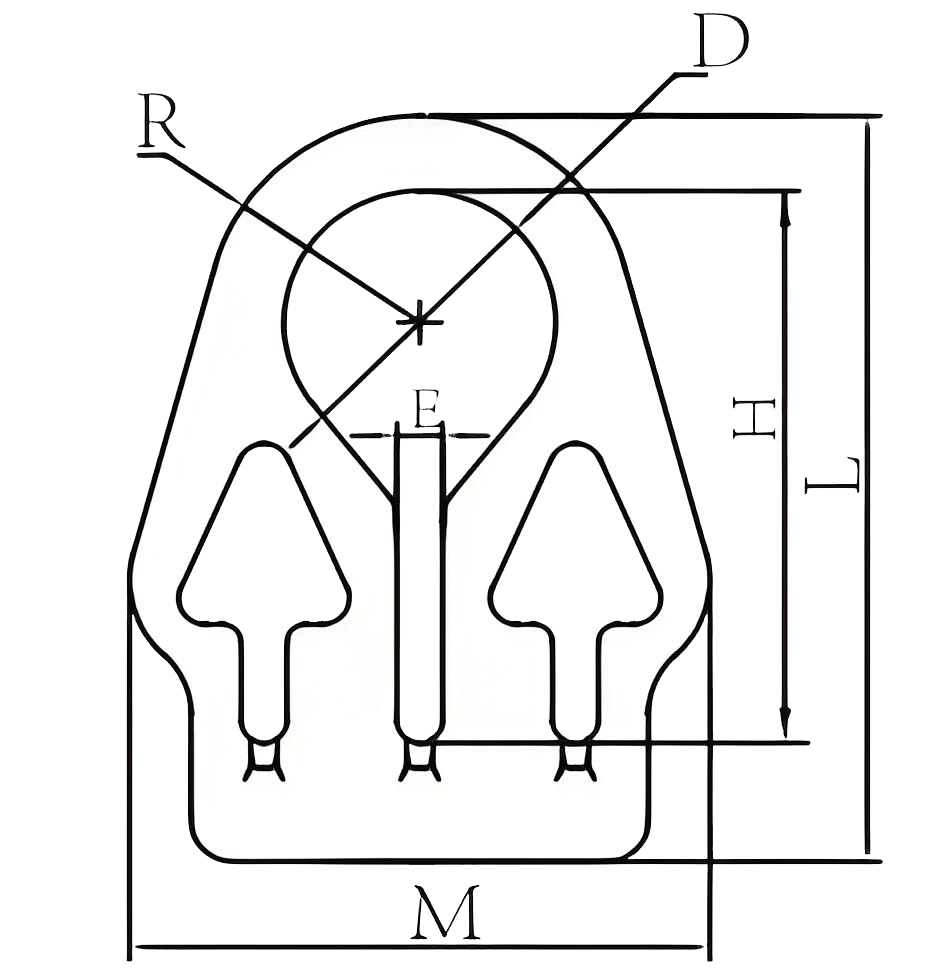

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
  B.L
  (T)
EDRHML
7/320.46 2100 8400 51 40 107 109 144.5
9/321.30 3500 14000 10 78.6 56.8 151 133 196
3/81.89 7100 28400 12.5 81 69.5 148.5 167 234

Ultimate Load is 4 times the Working Load Limit
