G80 Italian Type Clevis Slip Hook

Product attributes :

G80 Italian Type Clevis Slip Hook

Size: 7/8mm-16mm

Surface finish: Powder coating

Surface Colour: Red, Yellow

Material: Super Alloy steel

Manufacturing process: Forged - Quenched and Tempered

Usage: Suitable for EN818-2 G80 chain

Quality control:

◆ Individually proof test at 2.5 times Working Load Limit

 Fatigue tested at 1.5 times Working Load Limit for 20000 cycles

◆ Breakage test

◆ 100% magnaflux crack detection

◆ All load pins are 100%individually inspected and tested

Product Details


Chain SizeWeight
(Kg)
WLL
(T)
B.L
(T)

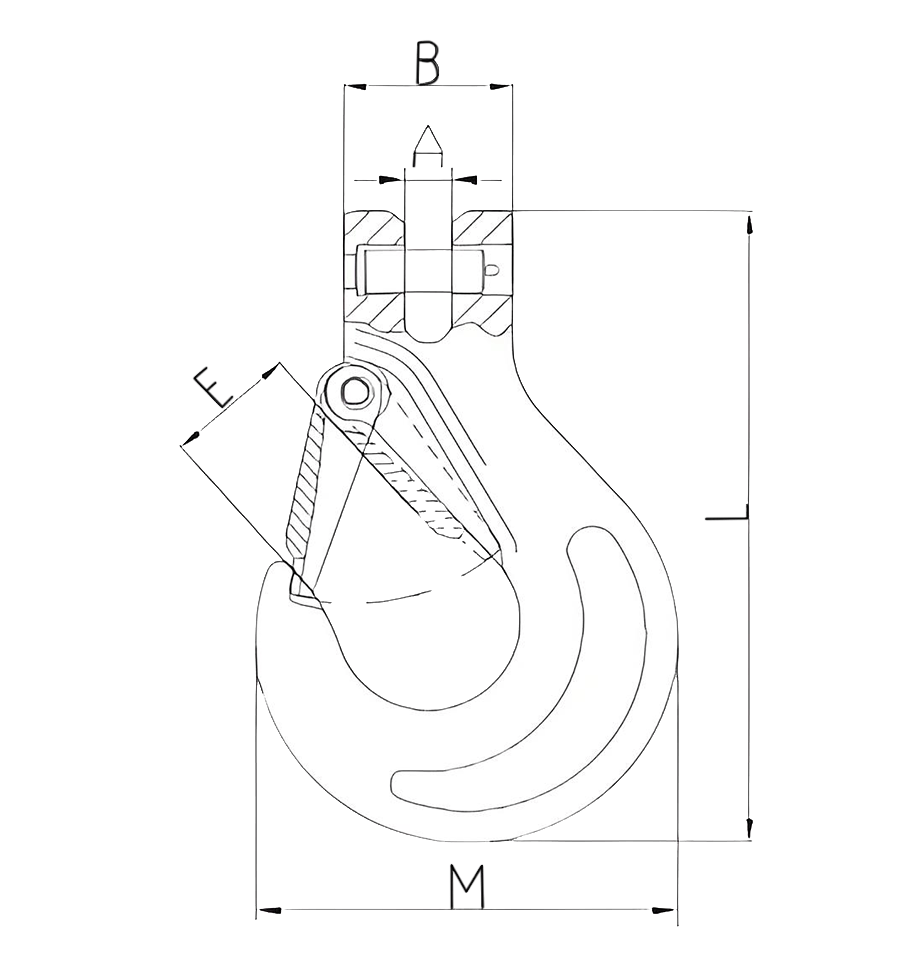

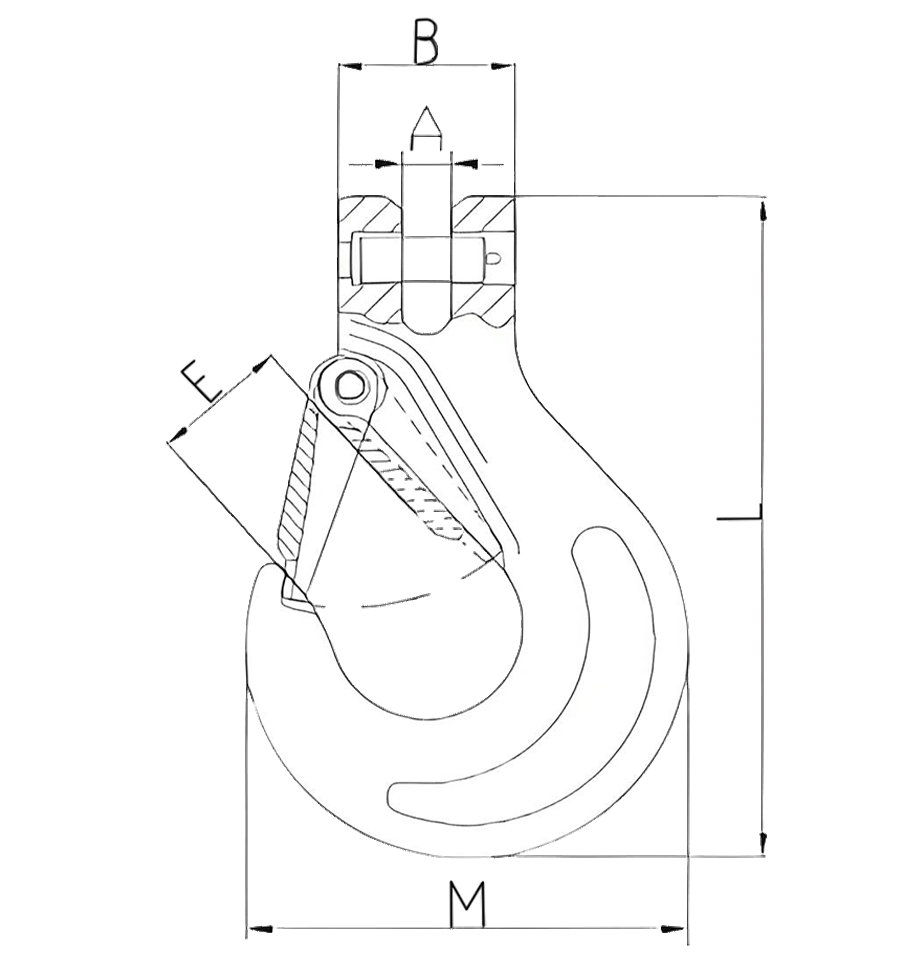

A±2B±2E±2M±3L±3
7/80.55 9.5 38.5 25.9 87.4 129
101.26 3.15 12.6 12.5 40.5 32 110 166
132.1 5.3 21.2 15.5 53 41 133 205
163.32 32 18.5 65.5 44 155 240

Ultimate Load is 4 times the Working Load Limit

Above Working Load Limit is based on side pull
