G80 Clevis C Hook
G80 Clevis C Hook
Size: 6mm-13mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
◆ All load pins are 100%individually inspected and tested
Product Details

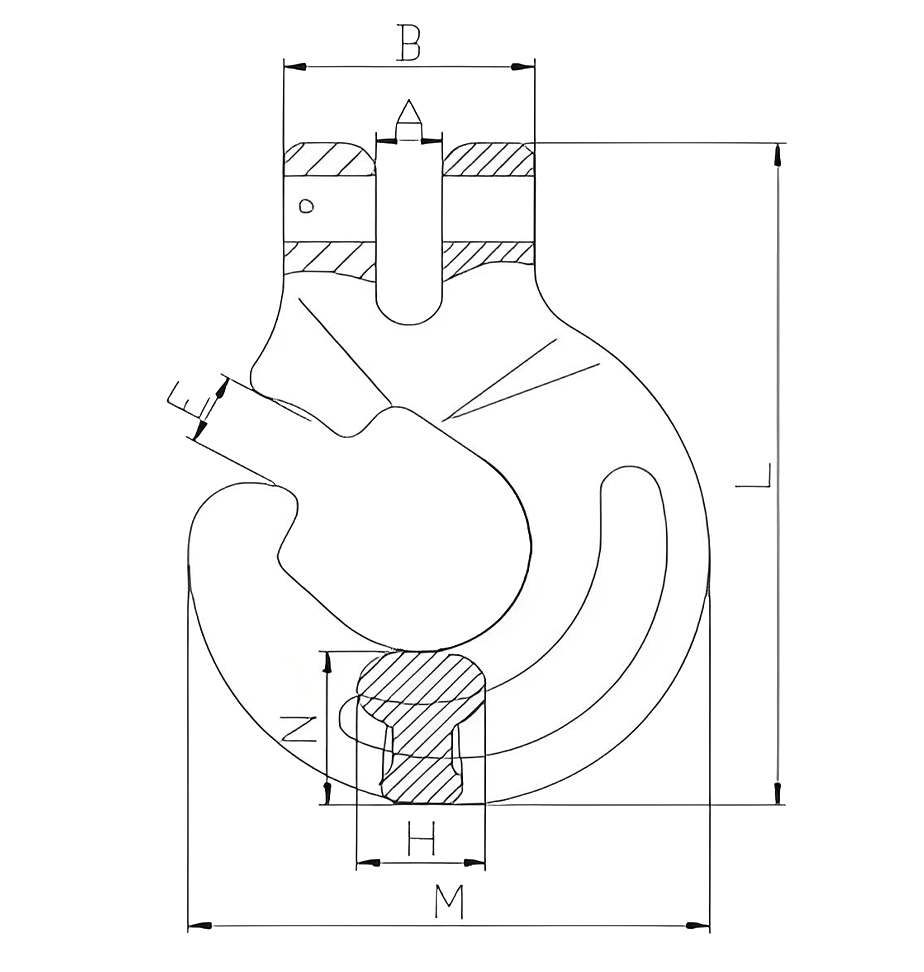

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | B±1.2 | A±0.5 | E±0.5 | H±1 | M±2 | N±0.5 | L±2 |
| 6 | 0.413 | 1.12 | 4.48 | 31 | 8 | 8.5 | 18 | 66.5 | 25 | 83 |
| 7/8 | 0.413 | 2 | 8 | 35 | 9.5 | 9.8 | 18 | 72.7 | 22.2 | 95.5 |
| 10 | 0.92 | 3.15 | 12.6 | 44 | 13 | 13 | 22 | 98.3 | 33.2 | 137 |
| 13 | 1.75 | 5.3 | 21.2 | 53 | 16 | 16 | 30 | 119 | 40 | 165 |
Ultimate Load is 4 times the Working Load Limit
