G80 Eye Foundry Hook
G80 Eye Foundry Hook
Size: 1.15Ton-15Ton
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

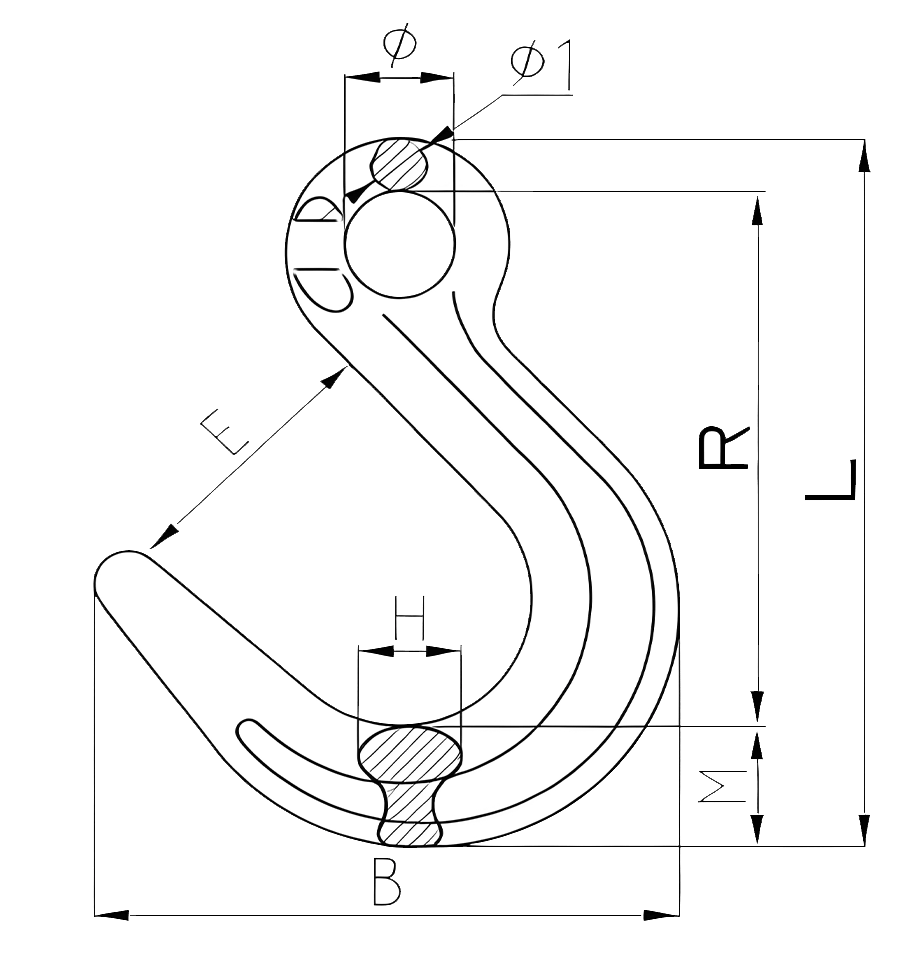

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | Φ±1 | L±3 | B±2 | R±2 | E±1 | Φ1±1 | H±2 | M |
| 1.12T | 0.382 | 1.12 | 4.48 | 20 | 133 | 100 | 102.7 | 49 | 10 | 17 | 19 |
| 2.0T | 0.69 | 2 | 8 | 24 | 158.5 | 130 | 120.5 | 62 | 12 | 19 | 26 |
| 3.2T | 1.3 | 3.2 | 12.8 | 31.5 | 199 | 152.5 | 153 | 73 | 15 | 25 | 31 |
| 5.3T | 2.32 | 5.3 | 21.2 | 44 | 241.5 | 186 | 184 | 90 | 19 | 33 | 39 |
| 8T | 4 | 8 | 32 | 49 | 279 | 218 | 216 | 105 | 22 | 37 | 42 |
| 12.5T | 7.3 | 12.5 | 50 | 60 | 330 | 252 | 247 | 114 | 26 | 46 | 57 |
| 15T | 11.4 | 15 | 60 | 64 | 376 | 274 | 275 | 123 | 31 | 60 | 70 |
Ultimate Load is 4 times the Working Load Limit
