G80 Clevis Shortening Grab Hook
G80 Clevis Shortening Grab Hook
Size: 6mm-26mm
Surface finish: Powder coating
Surface Colour: Red, Yellow
Material: Super Alloy steel
Manufacturing process: Forged - Quenched and Tempered
Usage: Suitable for EN818-2 G80 chain
Quality control:
◆ Individually proof test at 2.5 times Working Load Limit
◆ Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
◆ Breakage test
◆ 100% magnaflux crack detection
Product Details

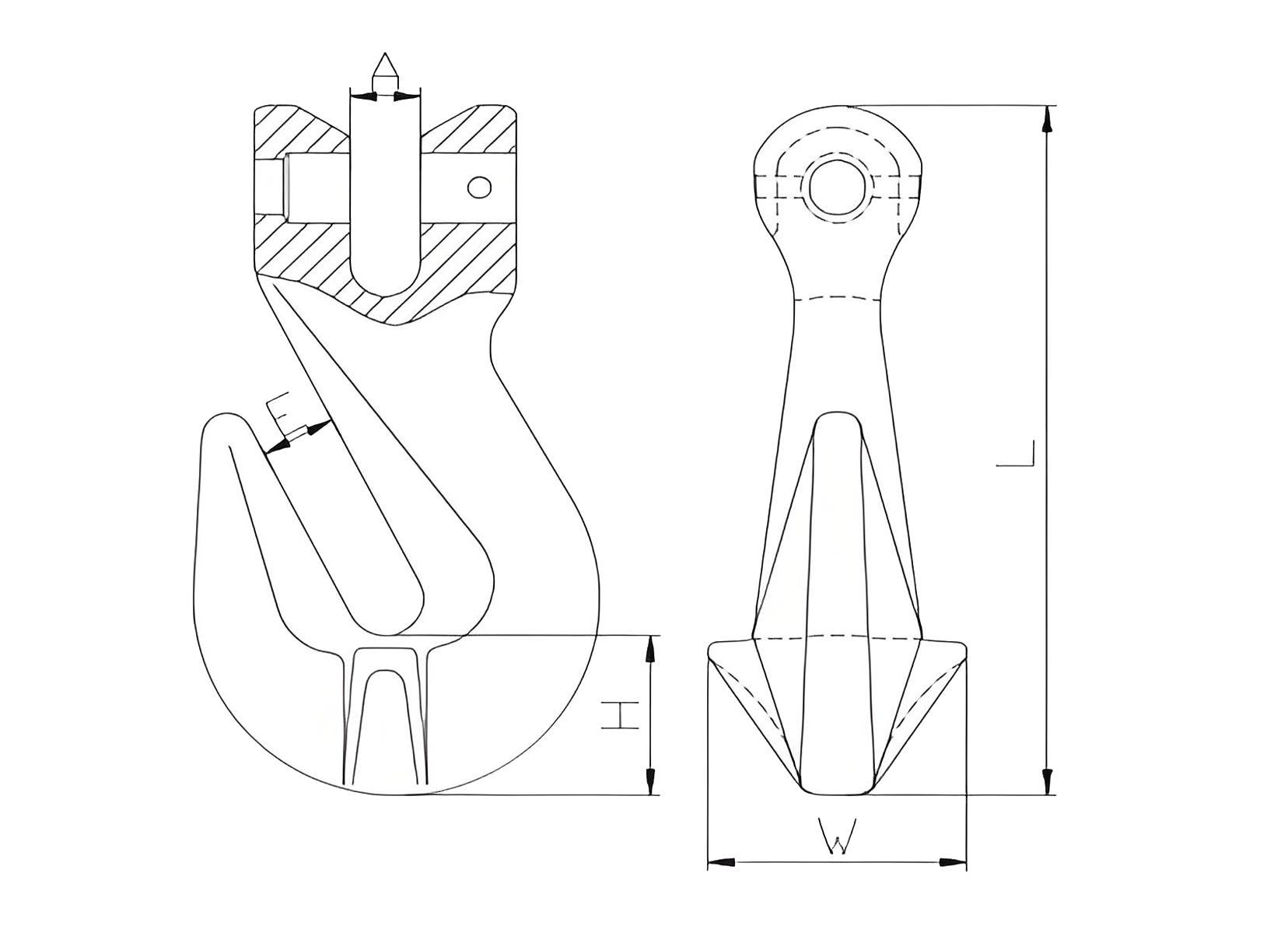

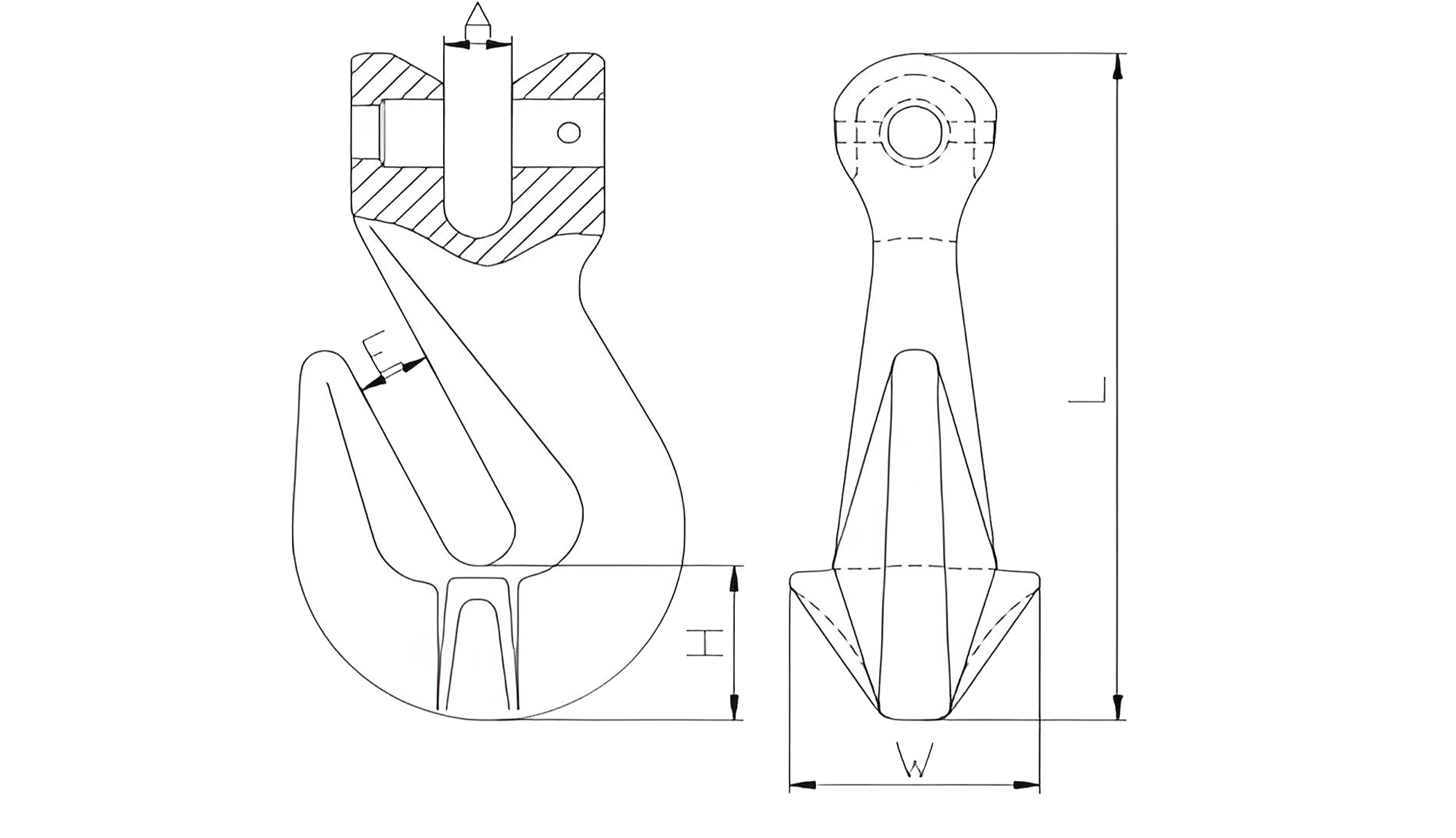

| Chain Size | Weight (Kg) | WLL (T) | B.L (T) | E±1 | A±0.5 | H±1 | W±1 | L±2 |
| 6 | 0.25 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 |
| 7/8 | 0.32 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 |
| 10 | 0.73 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 |
| 13 | 1.6 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 |
| 16 | 2.8 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 |
| 20 | 5 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 |
| 22 | 6.3 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 |
| 26 | 14.5 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 309 |
Ultimate Load is 4 times the Working Load Limit
Above Working Load Limit is based on side pull
